Note the orientation of the sensor
harness plug and the sensor; it is a
keyed connection-and can only be
connected in the correct orientation.

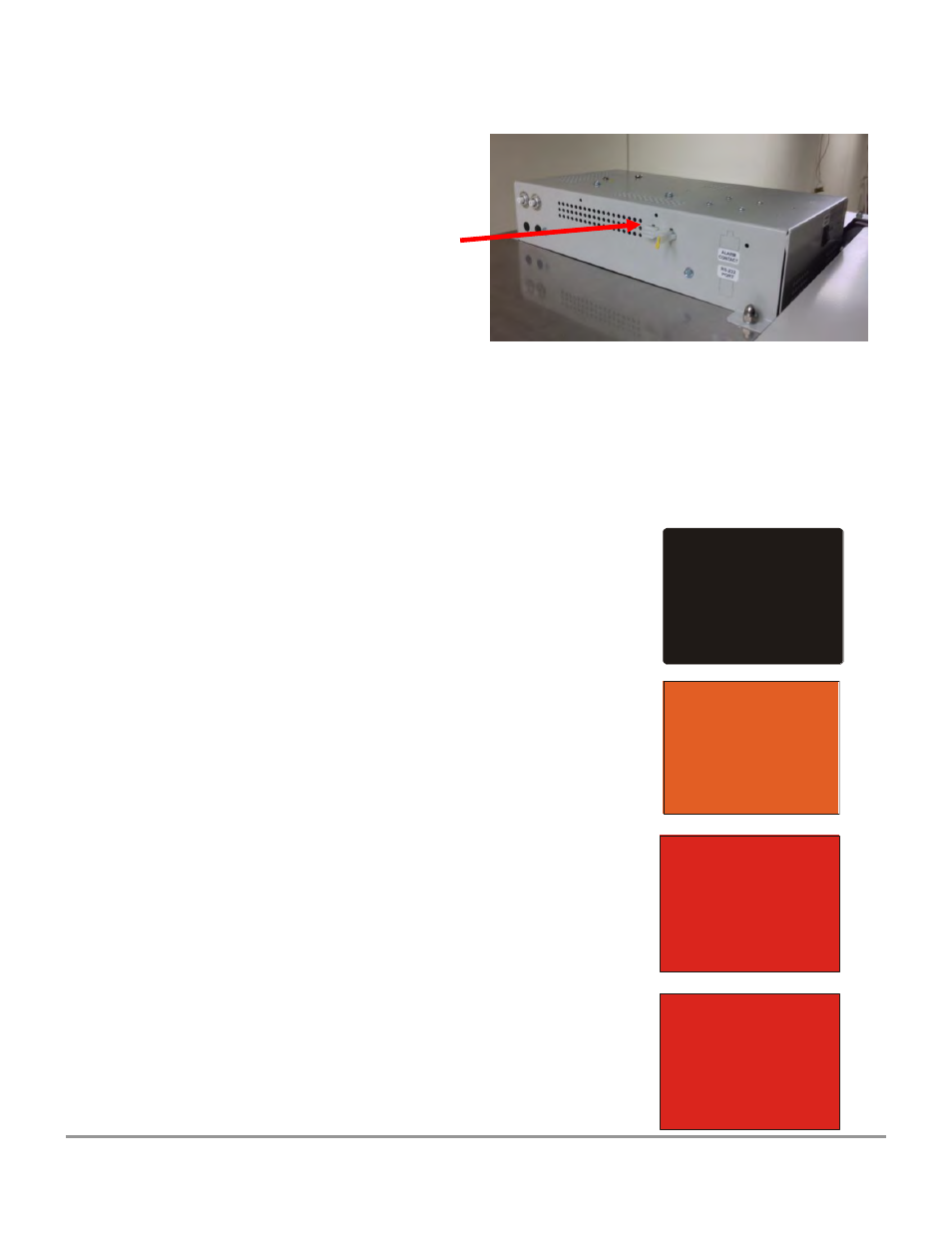

Plug the sensor harness into the
sensor, and the other end into the
multi pin connector on the Logic+’s
electronics module.
10.
Reconnect the Logic to electrical service. The unit is now ready for the calibration
of the air flow sensor.
Note: You will need to access the certifiers menu to calibrate the airflow
sensor.
Note: To properly calibrate the air flow sensor, a qualified certifier must
verify the inflow and downflow values.
With the Logic operating:
1.
Press the
Menu
button.
2.
Press the
▼
button until the
Services
option is highlighted
(it will turn yellow).
3.
Press
OK/Mute
to enter the Services menu screen.
4.
Press the
▼
button until the
Calibration
option is
highlighted (it will turn white).
5.
Press
OK/Mute
to start the calibration procedure.
6.
You will see a
warning screen
alerting you that you are
about to alter the BSC’s settings.
7.
Press
OK/Mute
to input the password.
8.
When requested for the password press
Light
,
UV light
,
Timer
,
Timer
then
OK/Mute
.
or
to choose,
OK to select, MENU to return
Current Settings
Restore Default
Diagnostics
Configuration
Calibration
Service
ATTENTION!
The following screens are used
to alter the operation of the
Logic. They should only be used
by a qualified certifier as part
of the certification process.
Calibration
OK to proceed, MENU to return
PASSWORD:
Calibration
MAIN MENU
1. MyLogic
TM
2. Settings
3. Service
or
to choose,
OK to select, MENU to escape
