Page 128

Product Service 1-800-522-7658
128
Display Board Service Operations
Display Board Diagnostics is addressed in the section on Touchpad Test Operations.
Touchpad Connections
To correctly connect the touchpad to the Display Board, orient the ribbon connector so
the metallic side of the connector is away from the side of the Logic+, as shown in
Figure 7-6.

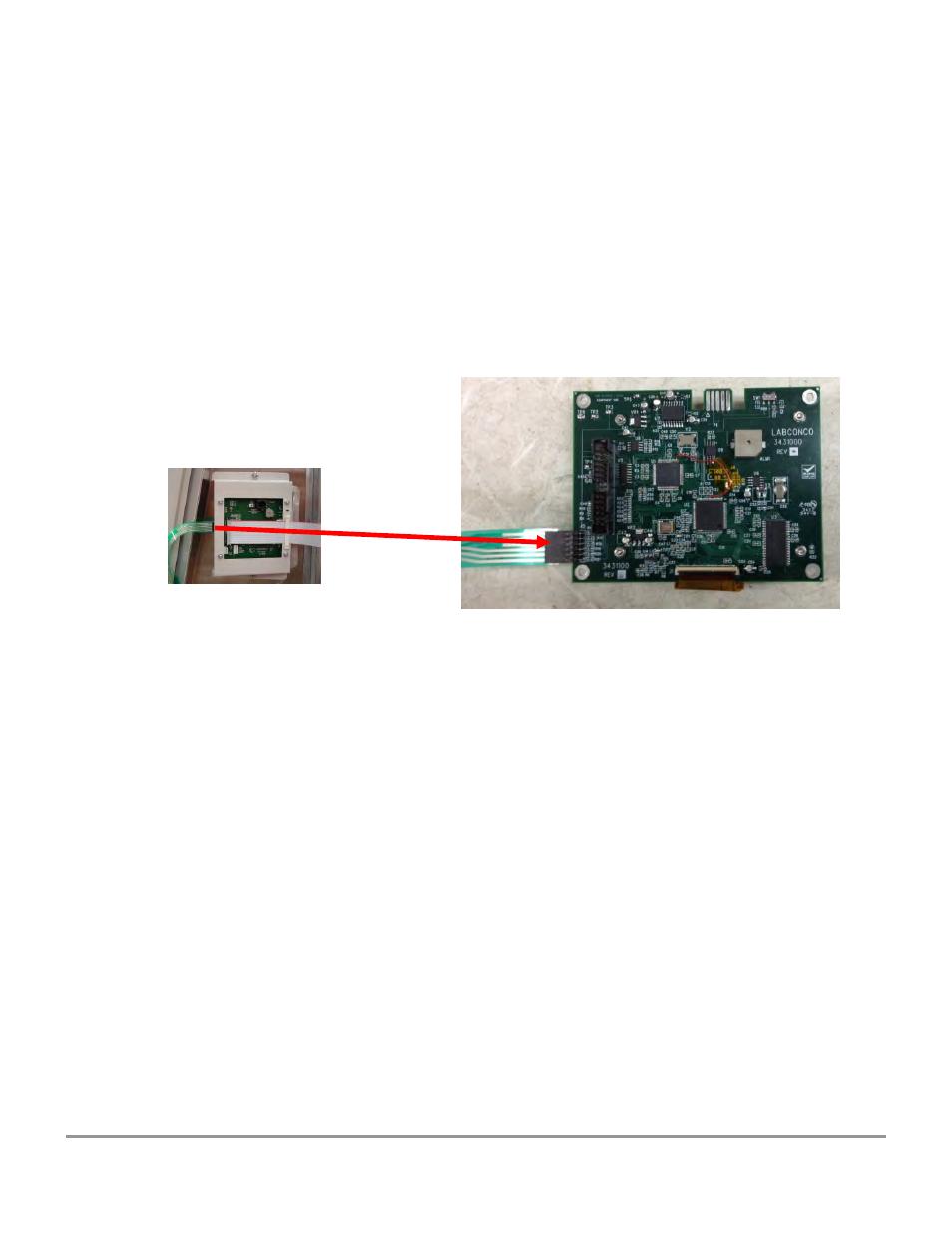

Figure 7-6
Aligning the touchpad ribbon connector
and the circuit board (metal frame and
other wiring omitted for clarity).
