Type A Exhaust Damper Seal
Installation
The exhaust damper seal is a silicone seal, permanently bolted to the plenum inside the
cabinet.
CAUTION: The damper seal is permanently attached to the plenum in the
cabinet. NEVER attempt to pull the seal out of the cabinet; the seal will be
damaged or destroyed.
CAUTION: The inside surface of the damper seal may be contaminated. DO
NOT disrupt the seal until the cabinet has been properly decontaminated.
Installing the seal

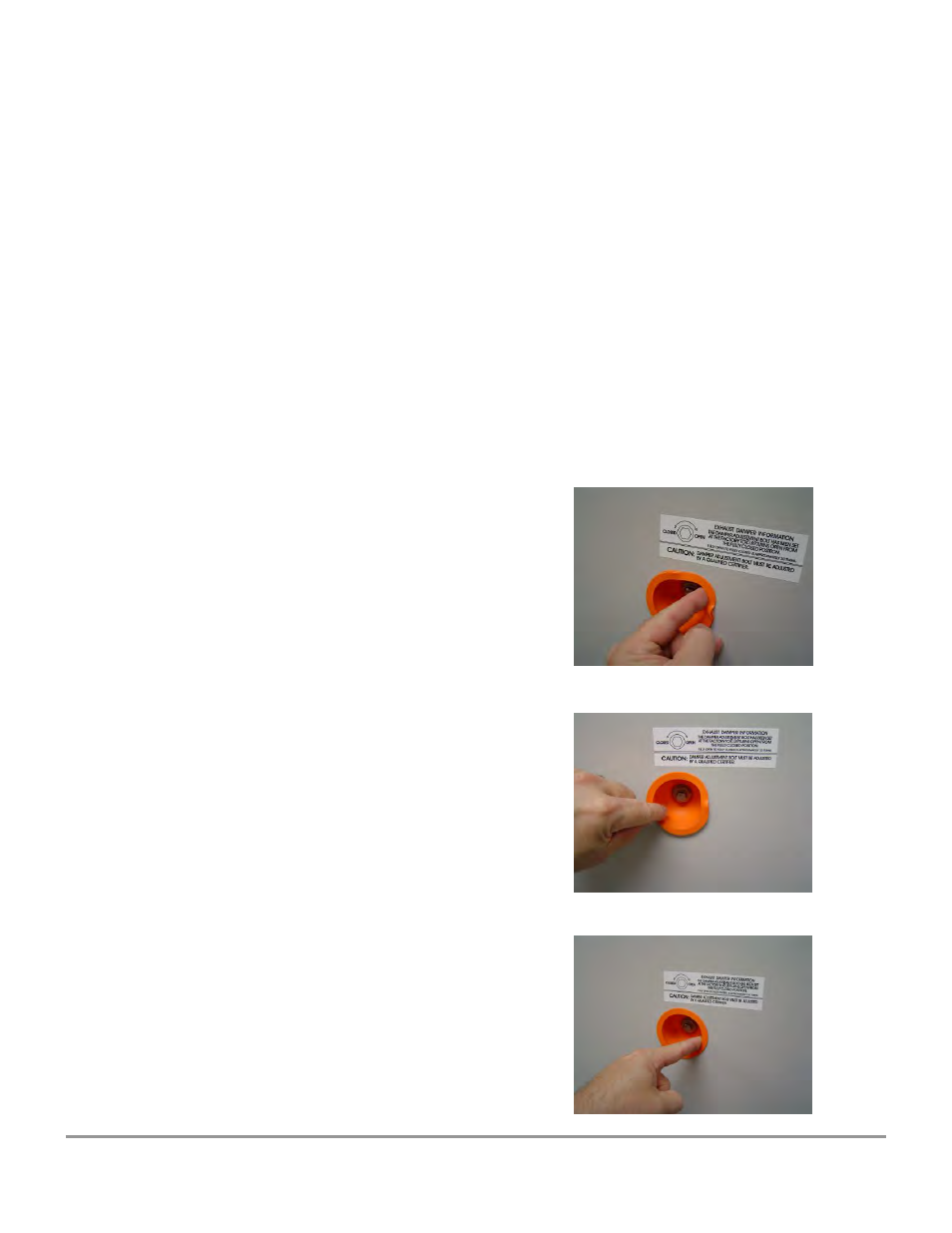

Figure 6-11
1.
Properly orient the inner and outer sealing flange
at one location on the hole in the blower plenum
cover, as shown in Figure 7-11.
Figure 6-12
2.
Work the seal around the hole, ensuring the
flanges are properly oriented, as shown
in Figure 7-12.
Figure 6-13
3.
When the entire seal has been “set”, run a finger
around the edge of the seal to ensure it is properly
oriented, as shown in Figure 7-13.
