AS. Locate a length of supplied 3/8” hose.
1. Manual Transmisson:
Attach one end of the hose to the crank-
case port on the lifter valley plate.
Route the hose alongside the passenger
side fuel rail around the back of the
supercharger.
2. Automatic Transmission:
Attach one end of the hose to the rear
vent port on the driverside valve cover
AT. Connect the other end to the 3/8” elbow fit-
ting on the inlet duct (adjacent to the brake
booster fitting). See fig 8AV.

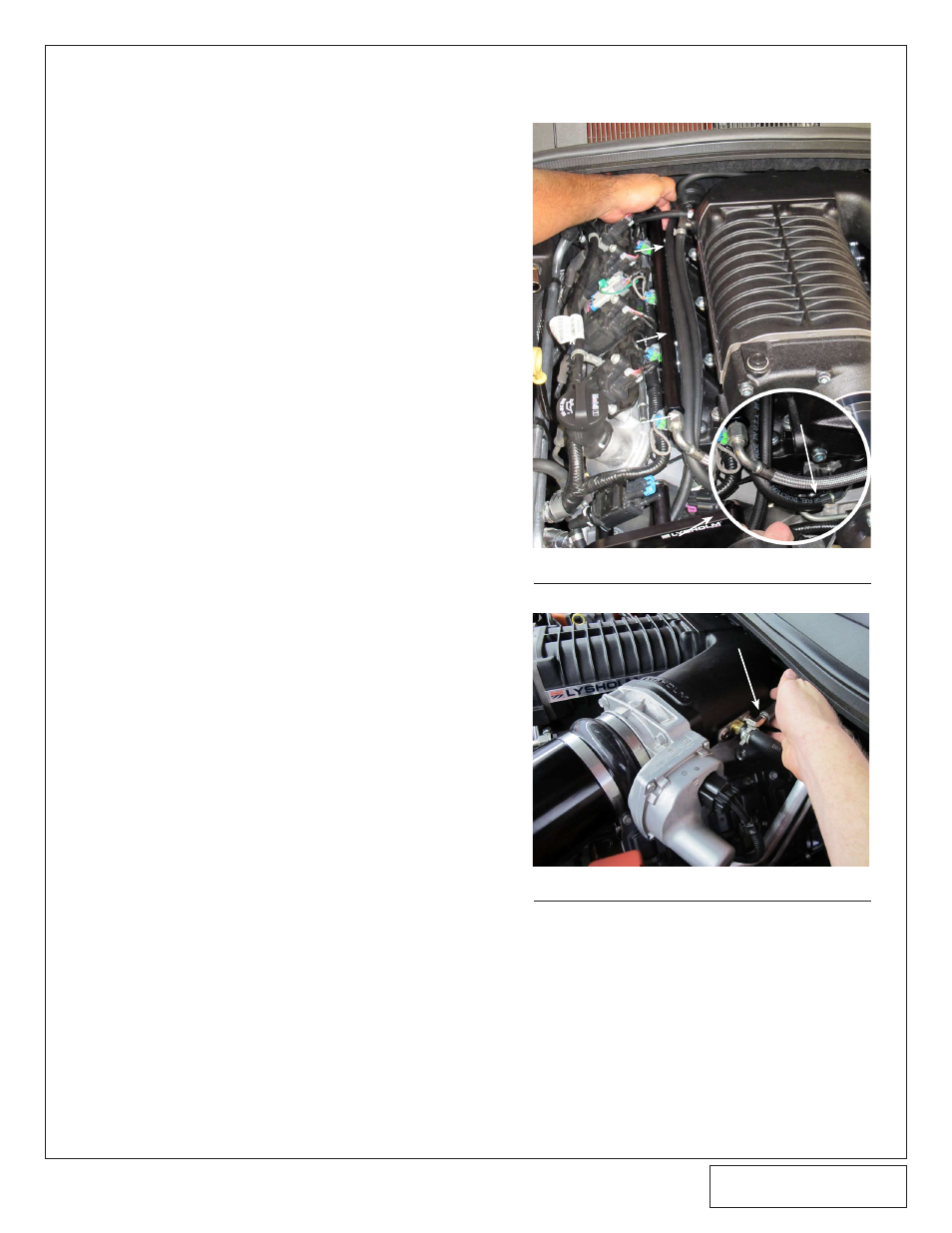

Fig 8AV
Fig 8AU
