55
Fig 7T

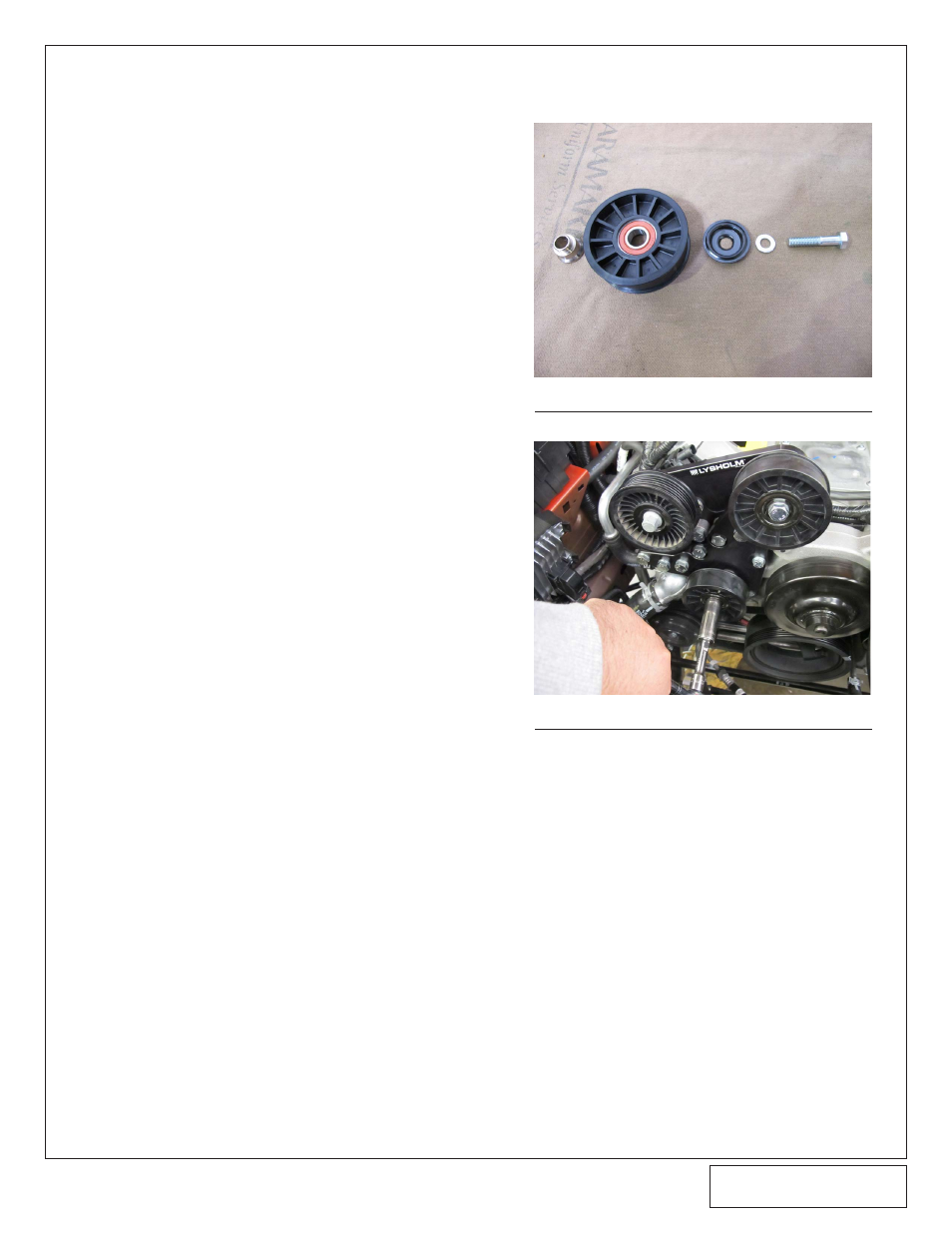

K. Assemble the other supplied idler pulley as
shown: Insert M10x1.50x50mm screw with
washer through the idler dust shield, through
the supplied idler, and then through the pilot
spacer. Insert idler and M10 screw thru hole
next to thermostat housing on idler bracket,
and then tighten. See fig 7S, 7T.
Fig 7S
