East Coast Supercharging Lysholm 2010+ Camaro Supercharger Kit User Manual

Page 61

P/N: 4LGE020-010 v1.1, 2011-04-29

Fig 7H

Fig 7I

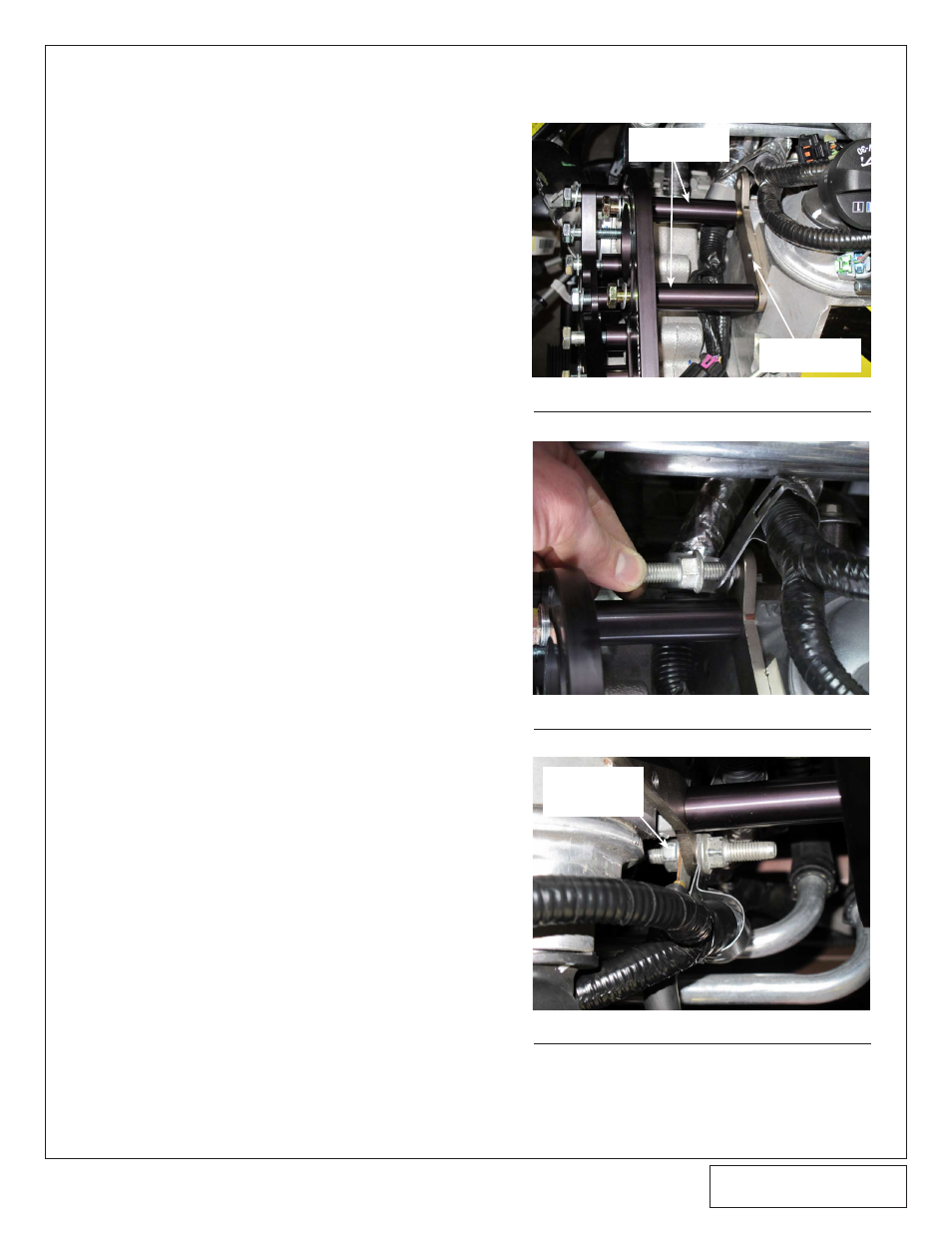

D. Insert the two (2) M10x1.50x120mm screws

through the tensioner plate to sandwich the

two (2) 3.22” long spacers between the ten-

sioner plate and the grounding plate on the

passenger side cylinder head as shown, then

tighten screws. See fig 7G.

E. Using the OEM M10 fastener and nut, reat-

tach harness support clamps and ground wire

as shown. See fig 7H, 7I.

Fig 7G

ATTACH GROUND

TERMINAL W/ NUT

ON BACKSIDE

M10 X 1.5 X 120MM

W/ 3.22" SPACERS

GROUNDING PLATE
