Y. Remove the two (2) 15mm headed screws

securing the belt tensioner to the water pump

just in front of the passenger cylinder head.

Remove and set tensioner aside for future

use. See fig 1AH, 1AI.

Z. Remove 15mm headed screw securing EVAP

solenoid bracket to front of the passenger

side cylinder head. Set bracket aside for

future use. See fig 1AJ.

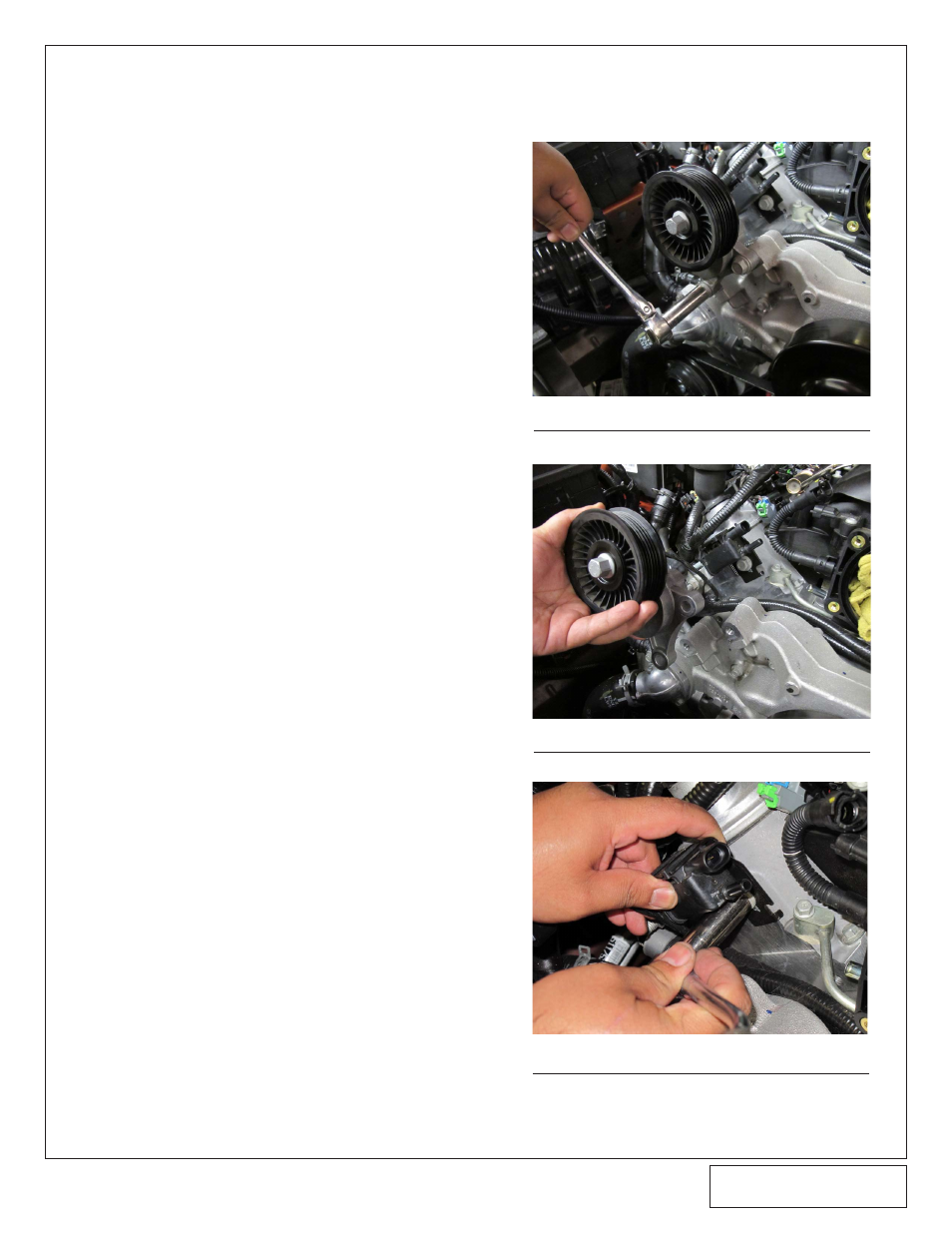

Fig 1AH

Fig 1AI

Fig 1AJ
