East Coast Supercharging Lysholm 2010+ Camaro Supercharger Kit - Manual (Page 35)

P/N: 4LGE020-010 v1.1, 2011-04-29
© 2011 Lysholm
All Rights Reserved, Intl. Copr. Secured
25

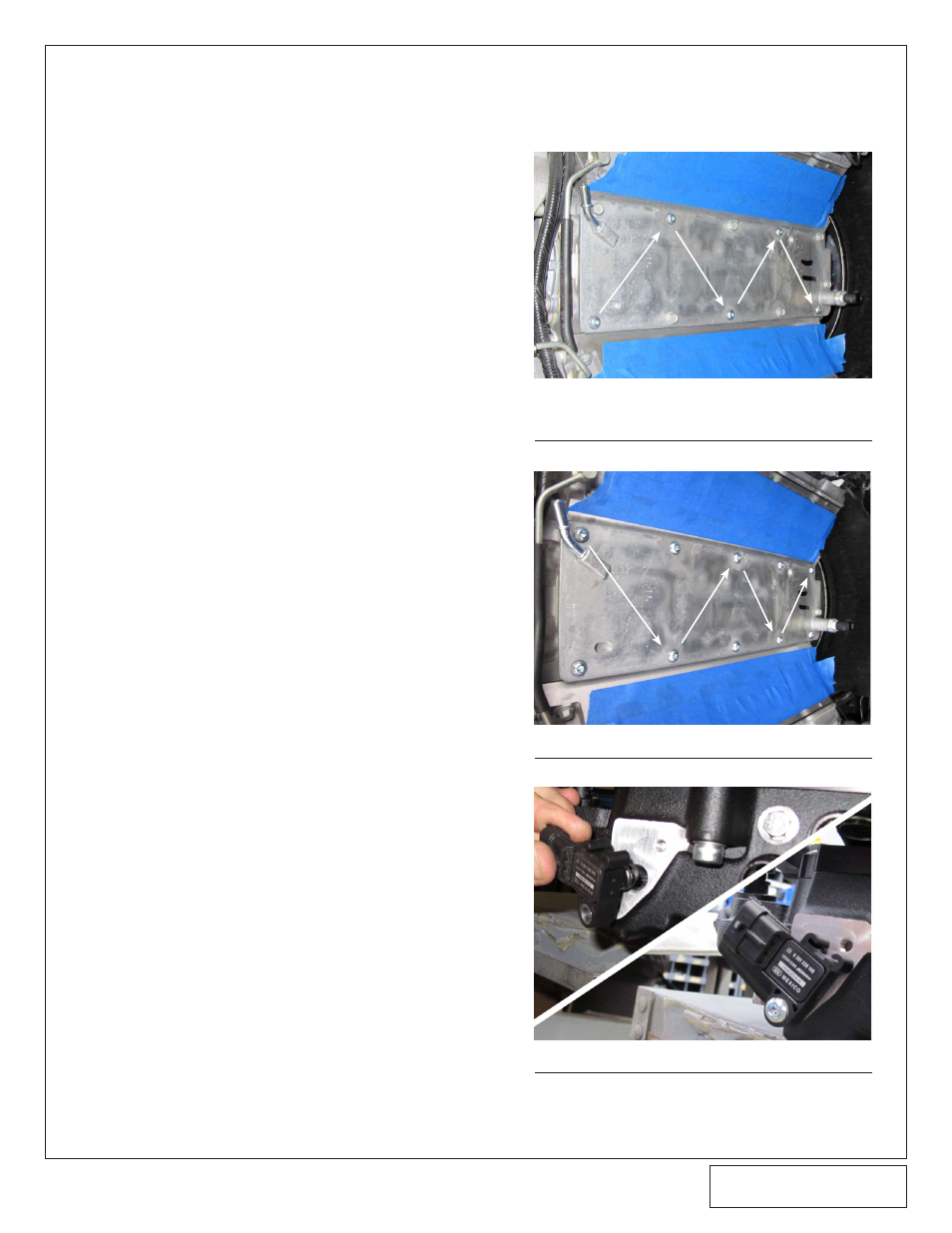

A. Using a criss cross pattern starting from the
center, remove one at a time the ten (10)
13mm headed screws securing the valley
cover plate. Replace with the supplied M8
button head screws. See fig 3A, 3B.
B. Install the previously removed OEM MAP
sensor on to the front of the supercharger
lower manifold, and secure with the supplied
M6x1.0x16MM using a 4mm Allen key. See
fig 3C.
3. INSTALLATION PREPARATION
Fig 3B
Fig 3C
Fig 3A
