East Coast Supercharging Lysholm 2010+ Camaro Supercharger Kit User Manual

Page 77

P/N: 4LGE020-010 v1.1, 2011-04-29

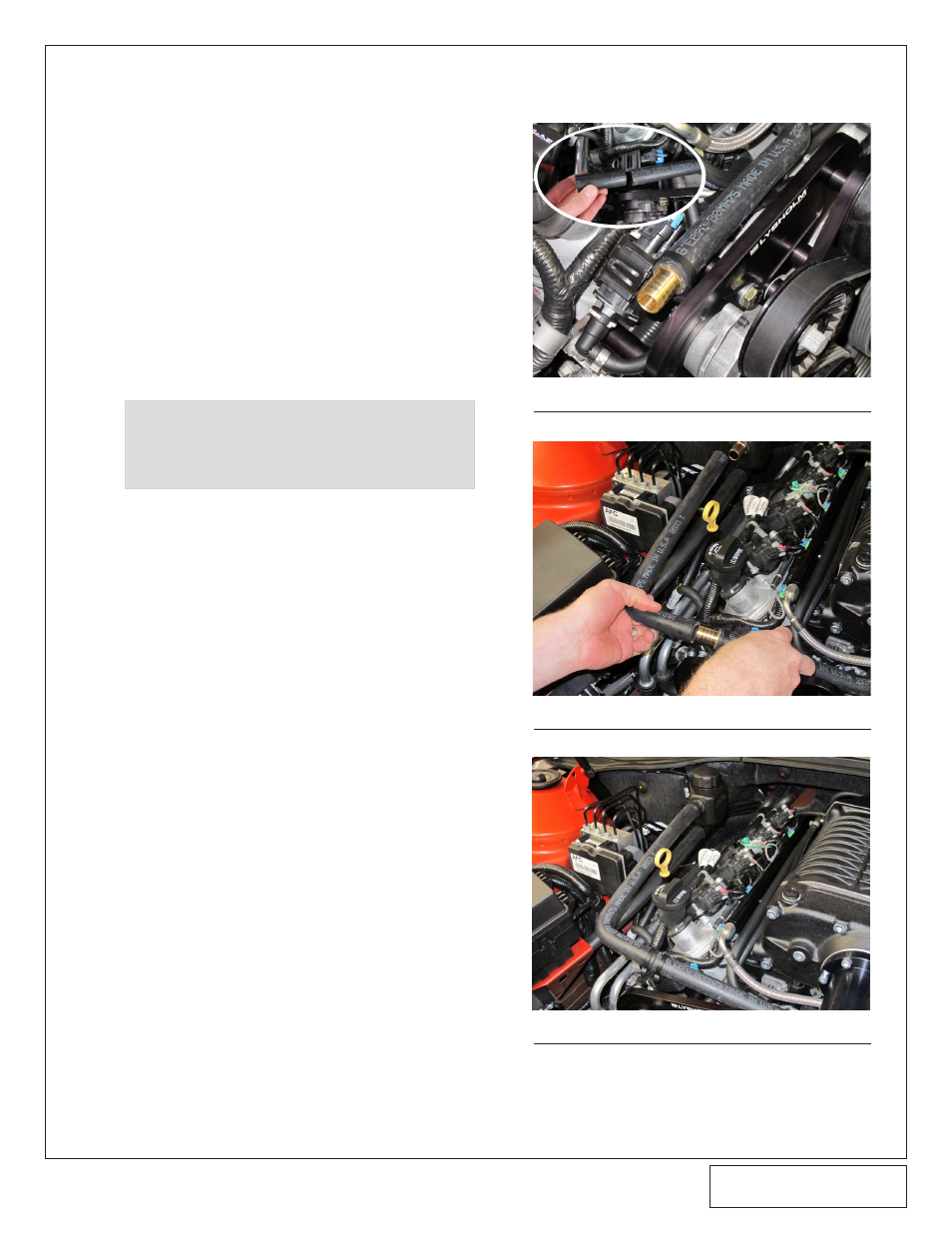

AC. Attach a section of ¾” hose to the side fitting

on the surge tank and secure with a nylon

ratchet clamp.

AD. Insert a ¾ hose union on the other end of the

¾ hose to attach to the passenger side cool-

er hose coming out of the supercharger. Then

secure with a supplied nylon ratchet clamp.

See fig 8AE.

AE. Trim the passenger side CAC hose and con-

nect to the surge tank hose with a nylon

ratchet clamp. See fig 8AG.

Fig 8AF

Fig 8AG

Fig 8AE

NOTE: Trim the hoses to length such that they travel in

smooth arcs free from kinks and away from hot

parts and sharp edges. Ensure adequate slack to

allow for moderate engine movement.
