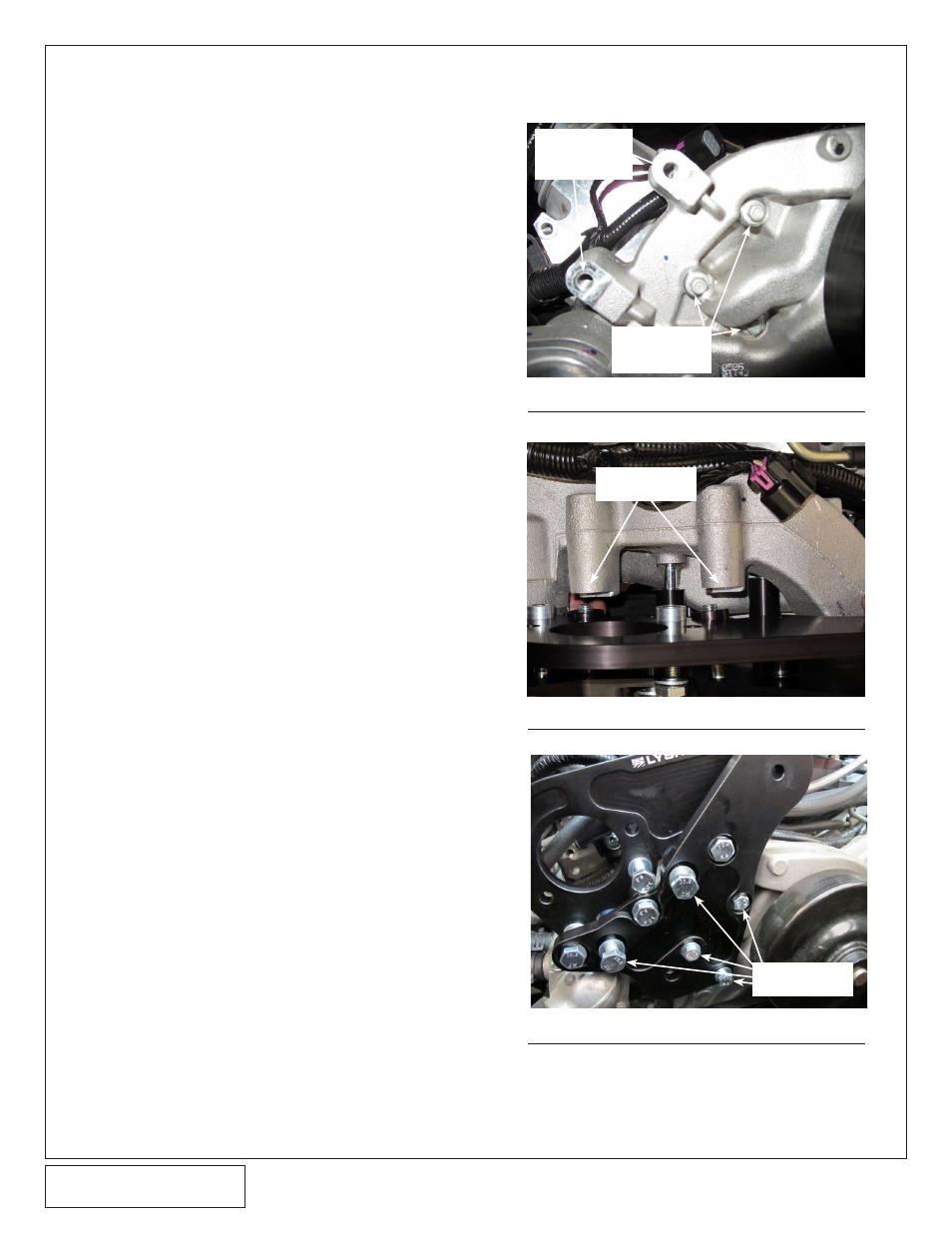

C. Mount the assembly onto the water pump
and OEM tensioner mount. Start the three
(3) M8x1.25x120mm screws that insert into
the water pump, and then start the two (2)
M10x1.5x50mm screws that insert into the
OEM tensioner mount. Don’t not tighten hard-
ware at this time. See fig 7D, 7E, 7F.
Fig 7E
Fig 7F
Fig 7D
OEM TENSIONER
MOUNTS
M10 X 1.5 X 50MM
W/ .75" SPACERS
ATTACH HERE
M8 X 1.25 X 120MM
W/ 1.36" SPACERS
ATTACH HERE
LOOSELY START
THESE SCREWS
