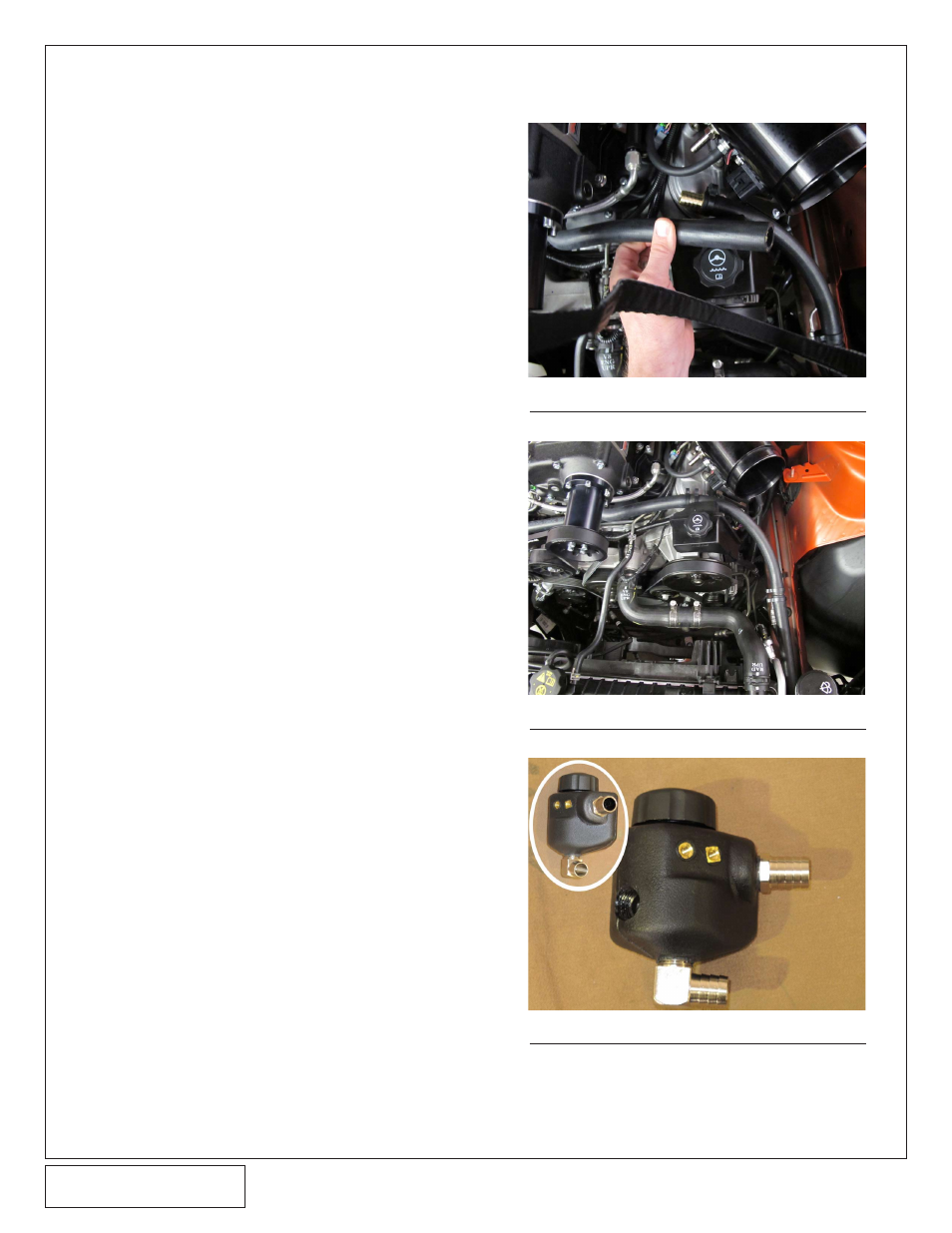

S. Trim to fit approximately 4.5” from the driver

side supercharger hose and attach the other

end of the previously assembled hose then

secure with a nylon ratchet clamp. See fig

8V, 8W.

T. Locate the surge tank and nickel plated fit-

tings. Using thread sealant, attach the 90º fit-

ting to the bottom of the surge tank then

attach the straight fitting to the side of the

tank. Ensure the bottom fitting is pointed in

the same direction as the straight fitting as

shown. See fig 8X.

Fig 8W

Fig 8X

Fig 8V
