Fig 7N
Fig 7O

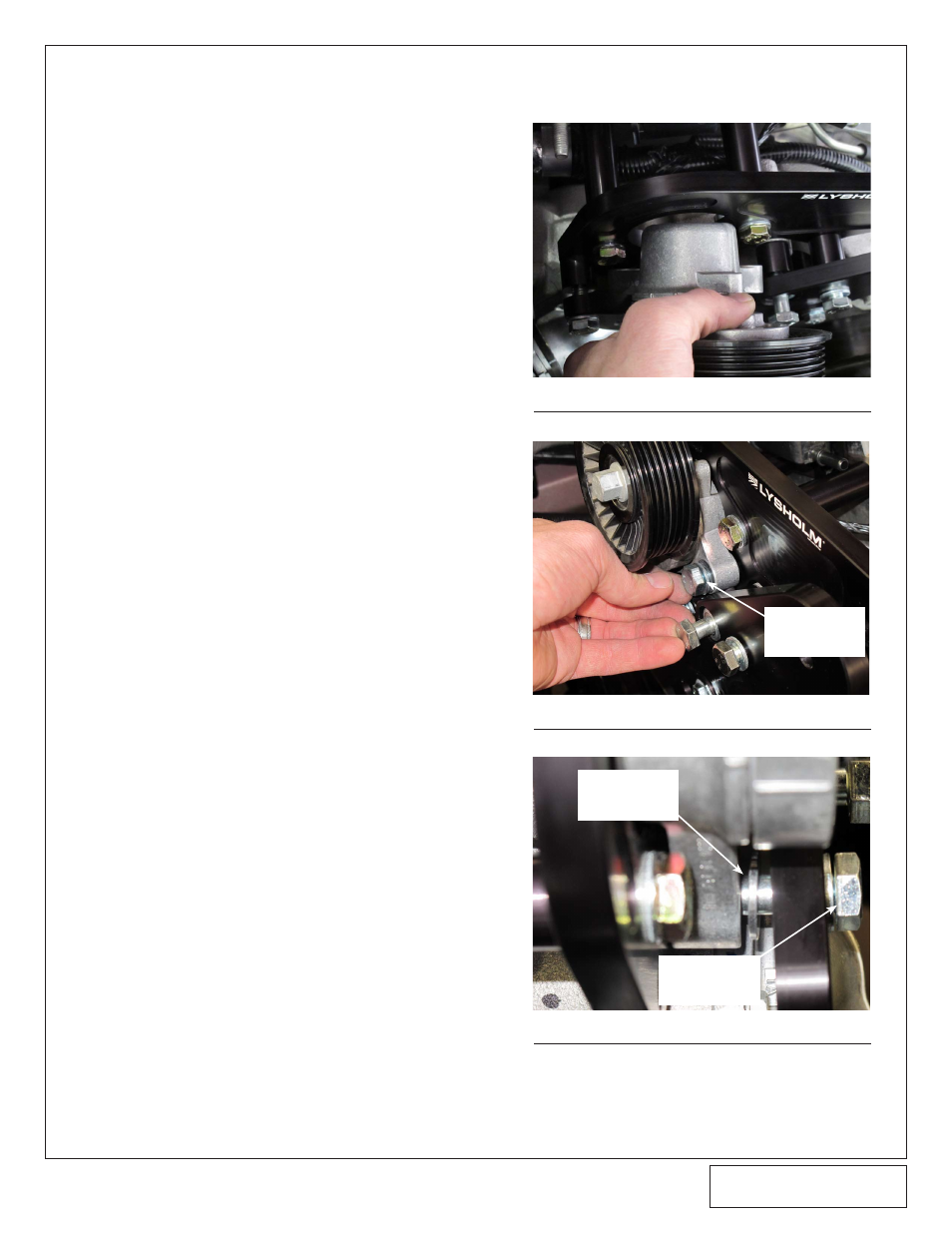

G. With all the bolts still loose on the brackets,
install the OEM tensioner using the supplied
M10x1.50 x 50mm screws. Sandwich the
.085” spacer between the back of the idler
bracket and the tensioner on the lower bolt.
See fig 7M, 7N, 7O.
Fig 7M
.085 SPACER
M10X1.5X50MM
W/ WASHER
M10X1.5X50MM
W/ WASHER
