East Coast Supercharging Lysholm 2010+ Camaro Supercharger Kit User Manual

Page 76

P/N: 4LGE020-010 v1.1, 2011-04-29

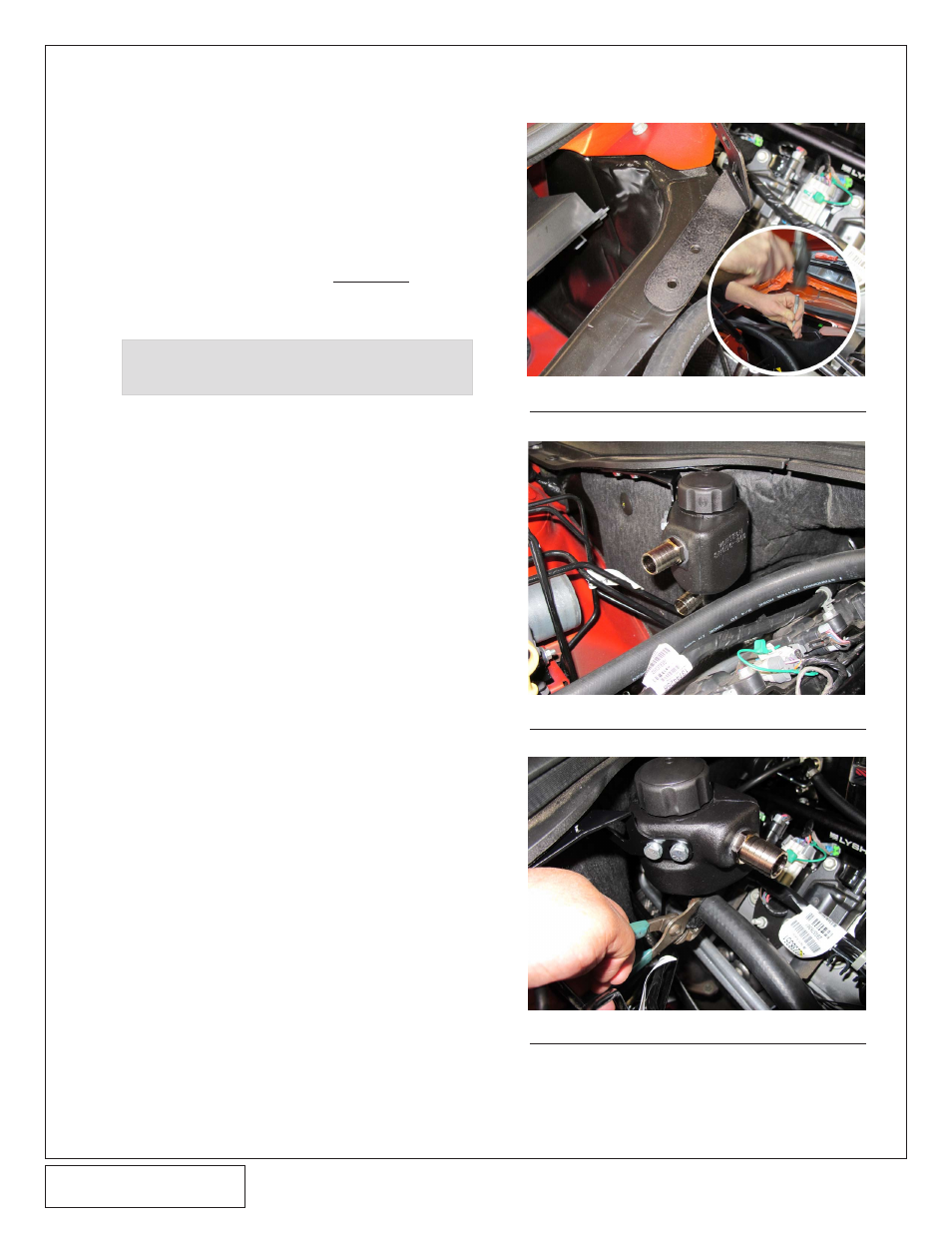

W. Temporarily position the surge tank bracket

onto the vehicle as shown and mark the hole

locations with a punch. See fig 8AB.

X. Use a 1/4” drill bit and drill out the holes on

the cowl.

Y. Mount the bracket on the underside of the

cowl using the two (2) supplied ¼-20x.375"

button head screws. See fig 8AC.

Z. Mount the surge tank to the bracket using the

two (2) supplied ¼-20-.5" socket head cap

screws.

AA. Re-install the cowl trim panel and re-insert

the three body clips previously removed.

Reattach the cowl weather stripping.

AB. Trim the previously installed ¾” hose coming

up from under the power distribution block

and attach it to the bottom fitting on the surge

tank. Secure hose using a nylon ratchet

clamp. See fig 8AD.

Fig 8AC

Fig 8AD

Fig 8AB

NOTE: Do not use washer under the button head screws.
