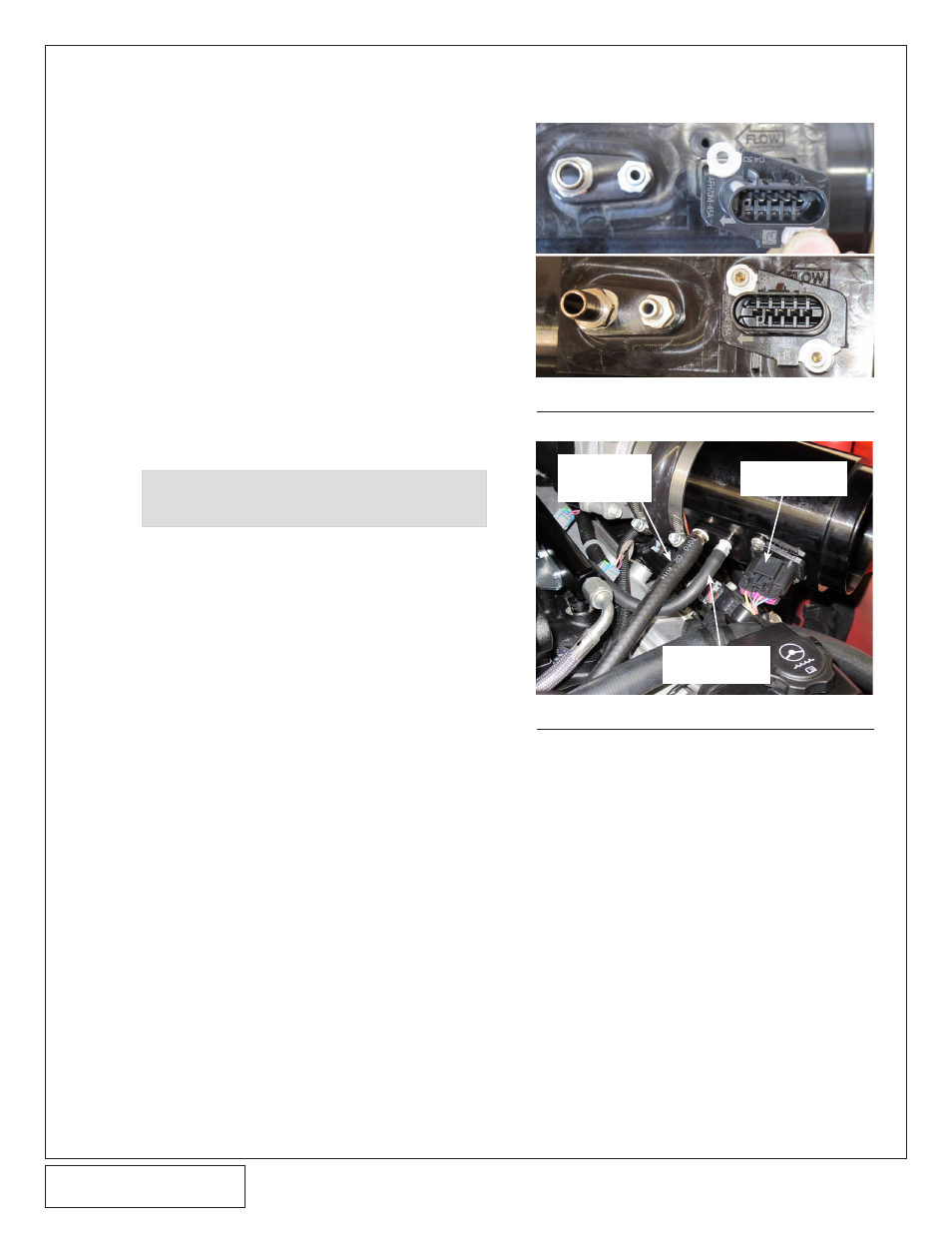

AF. Locate the supplied MAF housing, and install
the previously removed OEM MAF sensor
module into the housing using the supplied
M4x.7x8mm screws. Be sure to align the
flow direction arrow printed on the MAF sen-
sor with the MAF housing, and that they point
toward the throttle body once installed.
Confirm that the supplied 1/4NPT X 3/8 barb
and 1/8NPT x 1/4 barb fittings are securely
installed in the MAF housing with proper
thread sealant. See fig 8AH.
AG. Using the supplied 4” hump hose coupler
with two (2) supplied #64 hose clamps,
attach the MAF housing to the throttle body
and orient as shown. See fig 8AI.
AH. Locate a piece of 1/4" vacuum line and con-
nect one end to the lower port on the bypass
actuator (marked with "P") and route it behind
the supercharger and thru to the MAF hous-
ing. Connect hose to the aluminum fitting
adjacent to the MAF sensor mount.
AI. Locate the previously installed MAF/IAT har-
ness. Ensure the IAT connector end of the
harness is cleanly routed along the driverside
fuel rail and back toward the IAT sensor
located on the passenger-side rear of the
lower supercharger manifold just below the
bypass actuator. Confirm the connector is
attached to the IAT sensor.
AK. Connect the MAF connector of the MAF/IAT
harness to the MAF sensor installed in the
housing.
Fig 8AI
Fig 8AH
NOTE: Failure to properly install this device can result in
engine damage or poor fuel economy.
TO PASSENGER
VALVE COVER
BREATHER
MAF CONNECTOR
TO BYPASS
ACTUATOR "P" PORT
