East Coast Supercharging Lysholm 2010+ Camaro Supercharger Kit User Manual

Page 57

P/N: 4LGE020-010 v1.1, 2011-04-29

H. Routing the 5/8” hose upward, place the res-

ervoir assembly back into position and secure

with the supplied #12 phillips sheet metal

screws. See fig. 6D.

I. Locate the supplied remote fill spout with

cap. Assemble it to the supplied mounting

bracket using the supplied ¼-20 bolts and

washers as shown in Fig. 6E.

J. Place the remote fill spout assembly in the

location shown on the driver side radiator

core support, ensuring there is adequate

clearance for neighboring hoses. Mark the

mounting hole locations and drill with an

11/64” drill bit.

K. Mount the assembly as shown using the sup-

plied #12 phillips sheet metal screws. See

fig. 6E.

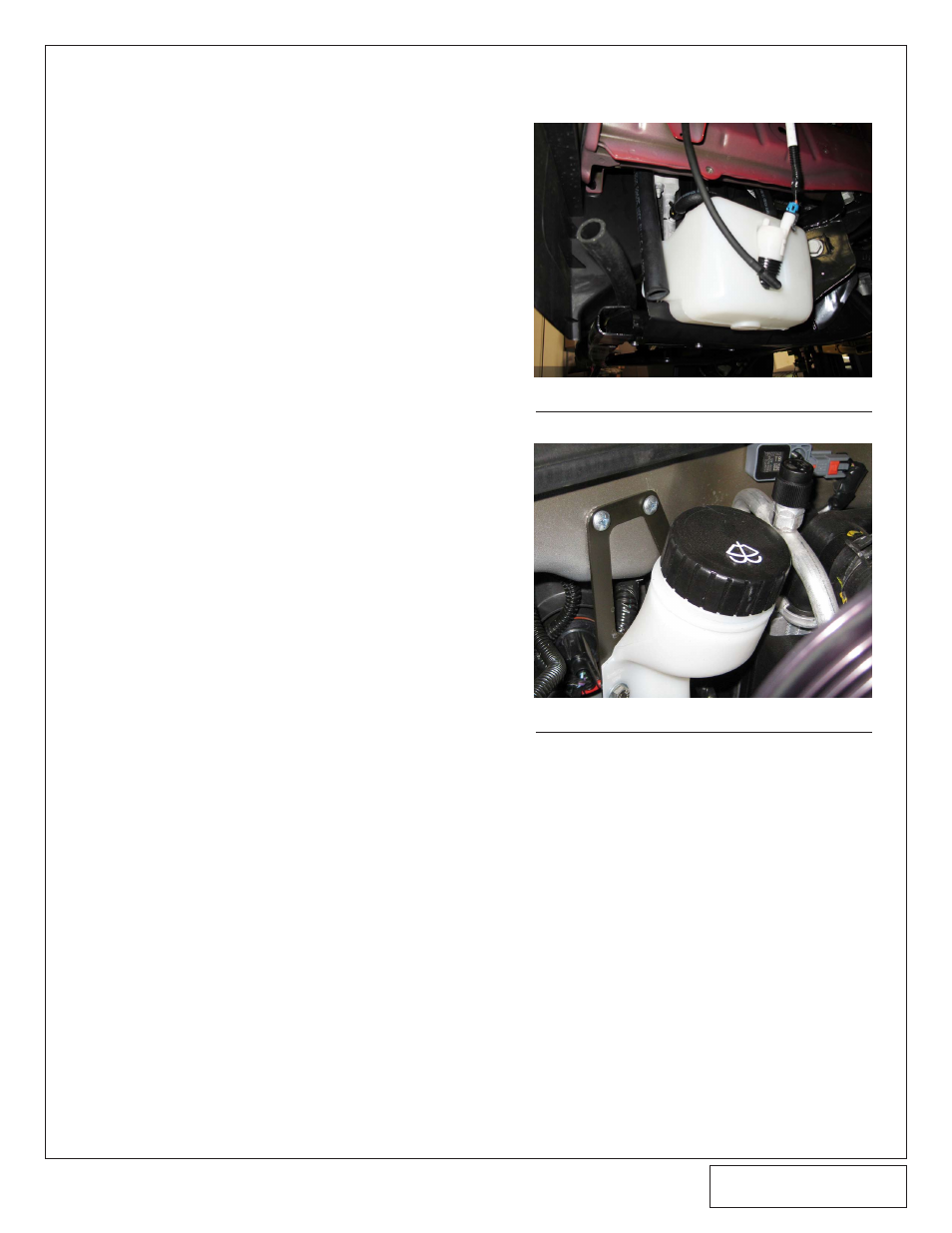

Fig 6D

Fig 6E
