DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
83
DHCP Relay Option 61 Default Settings
This window allows the user to set the default Server IP address. This setting can be used to determine the
rule to process the packets that have no option 61 matching rules. The default is Drop.
To view this window, click Administration > DHCP/BOOTP Relay > DHCP Relay Option 61 Default
Settings

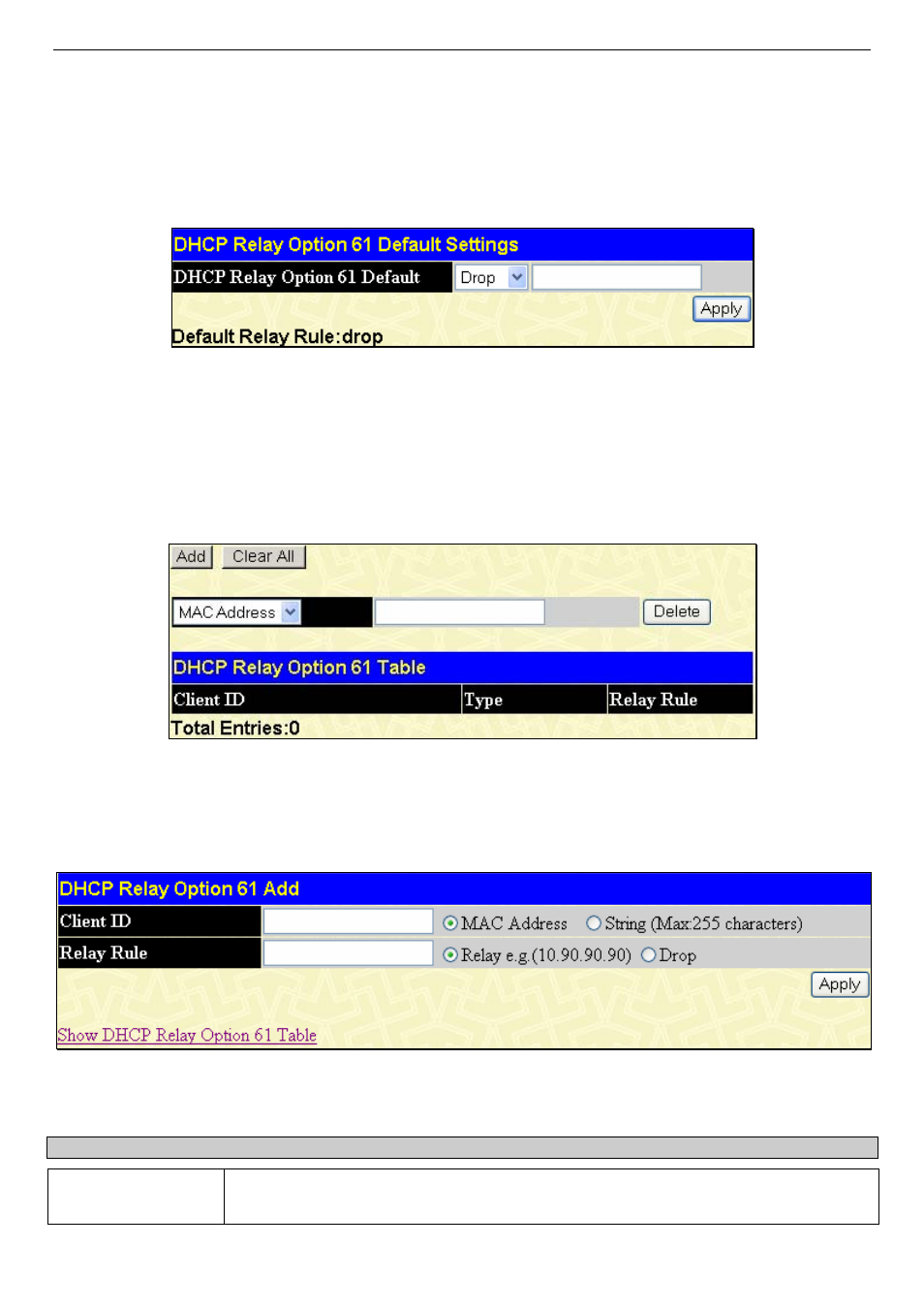

Figure 6- 68. DHCP Relay Option 61 Default Settings window
DHCP Relay Option 61 Settings
This window allows the user to view the DHCP Relay Option 61 Table.
To view this window, click Administration > DHCP/BOOTP Relay > DHCP Relay Option 61 Settings
Figure 6- 69. DHCP Relay Option 61 Settings window
To delete an entry, enter the appropriate information and click Delete, to remove all entries click Clear All.
To add a new entry click Add, the following screen will appear for the user to configure.
Figure 6- 70. DHCP Relay Option 61 Settings window – (Add)
The following parameters may be set.
Parameter Description
Client ID The client may be identified by either the MAC Address or by the user specified String.
Choose the desired method and enter the appropriate information for the Client ID.
