To view the Packet Size Analysis Table, click the link View Table , which will show the following table:

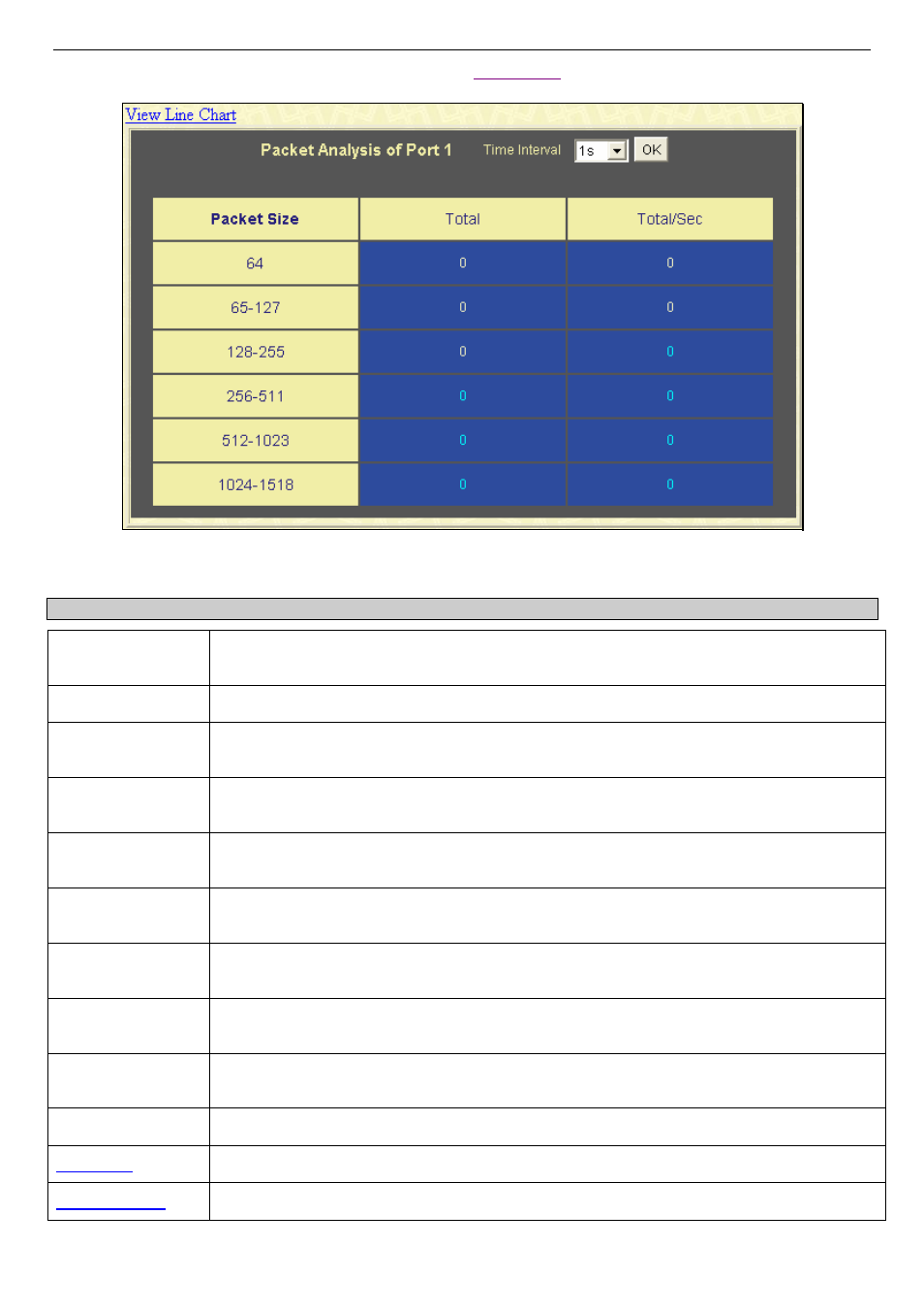

Figure 11- 14. Rx Size Analysis window (table)
The following fields can be set or viewed:
Parameter Description
Time Interval [1s] Select the desired setting between 1s and 60s, where "s" stands for seconds. The default value
is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default value is 200.
64 The total number of packets (including bad packets) received that were 64 octets in length
(excluding framing bits but including FCS octets).
65-127 The total number of packets (including bad packets) received that were between 65 and 127
octets in length inclusive (excluding framing bits but including FCS octets).
128-255 The total number of packets (including bad packets) received that were between 128 and 255
octets in length inclusive (excluding framing bits but including FCS octets).
256-511 The total number of packets (including bad packets) received that were between 256 and 511
octets in length inclusive (excluding framing bits but including FCS octets).
512-1023 The total number of packets (including bad packets) received that were between 512 and 1023
octets in length inclusive (excluding framing bits but including FCS octets).
1024-1518 The total number of packets (including bad packets) received that were between 1024 and 1518
octets in length inclusive (excluding framing bits but including FCS octets).
Show/Hide Check whether or not to display 64, 65-127, 128-255, 256-511, 512-1023, and 1024-1518
packets received.
Clear Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
