DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
124
header.
Ethernet type Selecting this option instructs the Switch to examine the Ethernet type value in each frame's
header.
Click Apply to set this entry in the Switch’s memory.
The page shown below is the CPU IP Access Profile Configuration page.

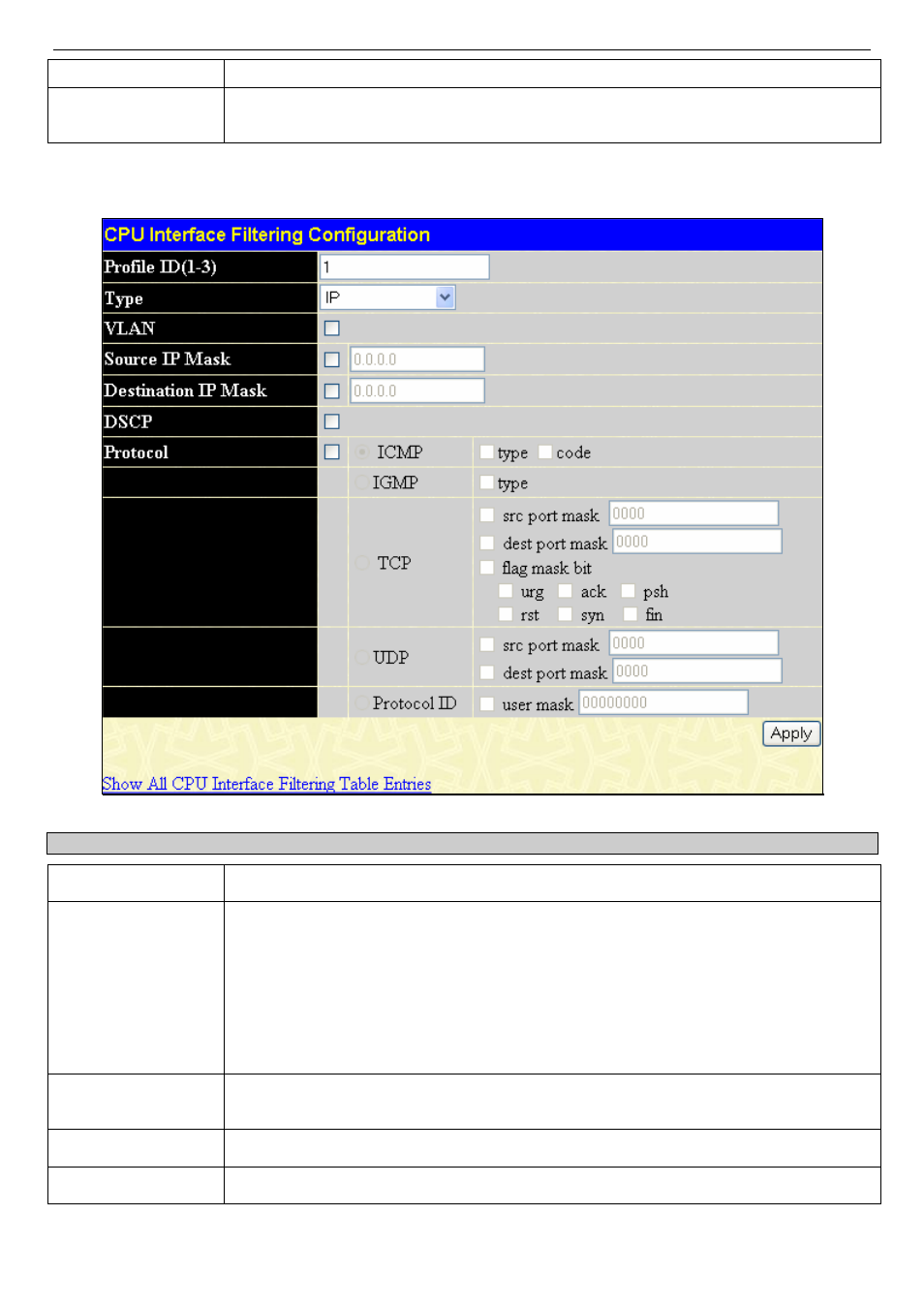

Figure 9- 4. CPU Interface Filtering Configuration window- IP
Parameter Description
Profile ID (1-3) Type in a unique identifier number for this profile set. This value can be set from 1 - 3.
Type Select profile based on Ethernet (MAC Address), IP address or Packet Content Mask. This
will change the menu according to the requirements for the type of profile.
• Select Ethernet to instruct the Switch to examine the layer 2 part of each packet
header.
• Select IP to instruct the Switch to examine the IP address in each frame's header.
• Select Packet Content Mask to specify a mask to hide the content of the packet
header.
VLAN Selecting this option instructs the Switch to examine the VLAN part of each packet header
and use this as the, or part of the criterion for forwarding.
Source IP Mask Enter an IP address mask for the source IP address.
Destination IP Mask Enter an IP address mask for the destination IP address.
