DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
66
The following options may appear for the user to configure:
•
Collapse - to collapse the group that will be represented by a single icon.
•
Expand - to expand the SIM group, in detail.
•
Property - to pop up a window to display the group information.

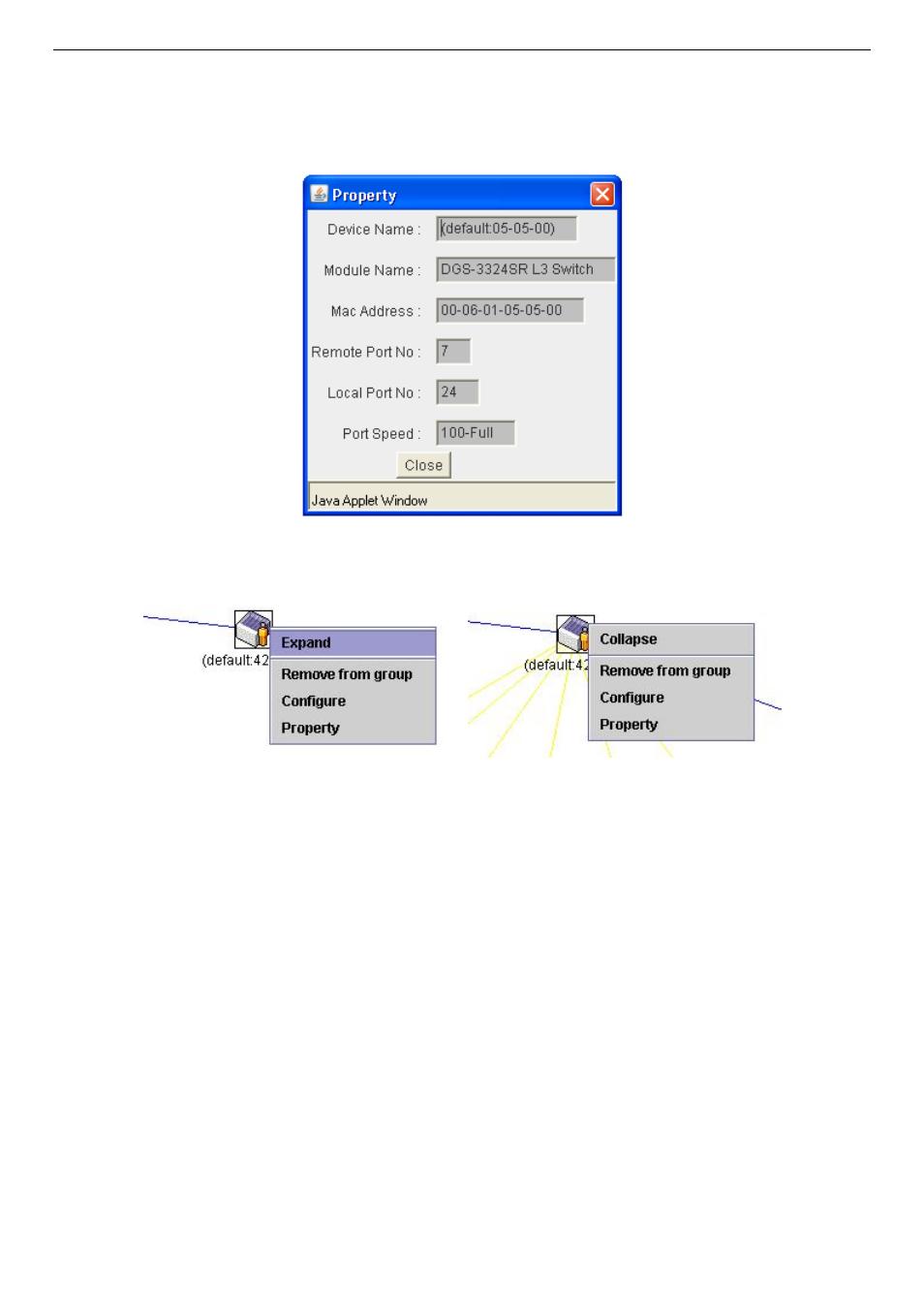

Figure 6- 44. Property window
Member Switch Icon
Figure 6- 45. Right Clicking a Member icon
The following options may appear for the user to configure:
•
Collapse - to collapse the group that will be represented by a single icon.
•
Expand - to expand the SIM group, in detail.
•
Remove from group - remove a member from a group.
•
Configure - launch the web management to configure the Switch.
•
Property - to pop up a window to display the device information.
