DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
69
Group
•
Add to group - add a candidate to a group. Clicking this option will reveal the following screen for the user to enter a
password for authentication from the Candidate Switch before being added to the SIM group. Click OK to enter the
password or Cancel to exit the window.

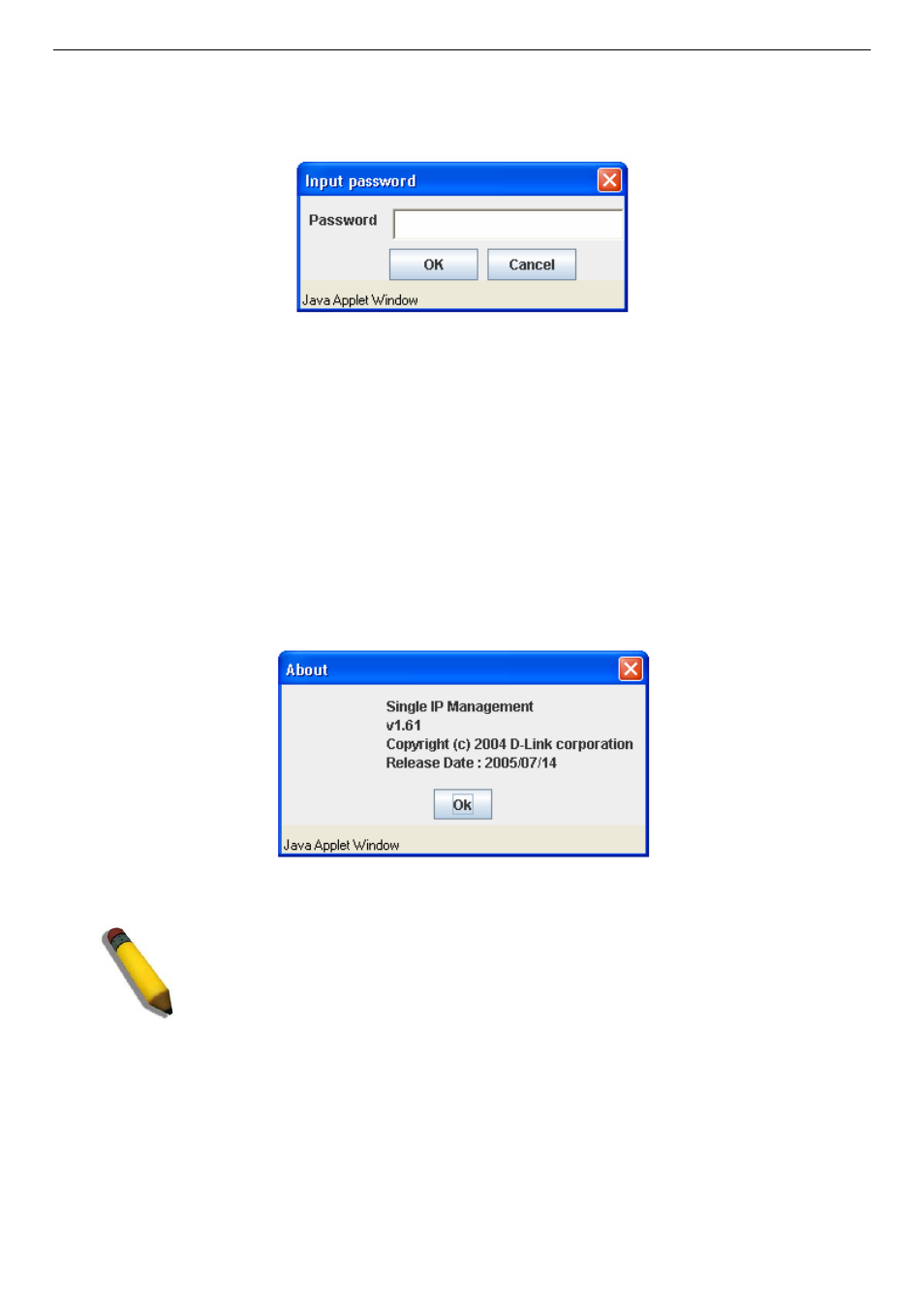

Figure 6- 51. Input password window.
•
Remove from Group - remove an MS from the group.
Device
•
Configure - will open the web manager for the specific device.
View
•
Refresh - update the views with the latest status.
•
Topology - display the Topology view.
Help
•
About - Will display the SIM information, including the current SIM version.
Figure 6- 52. About window.
NOTE: Upon this firmware release, some functions of the SIM can only be configured
through the Command Line Interface. See the DES-30XX CLI Manual for more
information on SIM and its configurations.
