DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
62
Speed Displays the connection speed between the CS and the MS or CaS.
Remote Port Displays the number of the physical port on the MS or CaS that the CS is connected to. The
CS will have no entry in this field.
MAC Address Displays the MAC Address of the corresponding Switch.
Model Name Displays the full Model Name of the corresponding Switch.
To view the Topology Map, click the View menu in the toolbar and then Topology, which will produce the
following screen. The Topology View will refresh itself periodically (20 seconds by default).

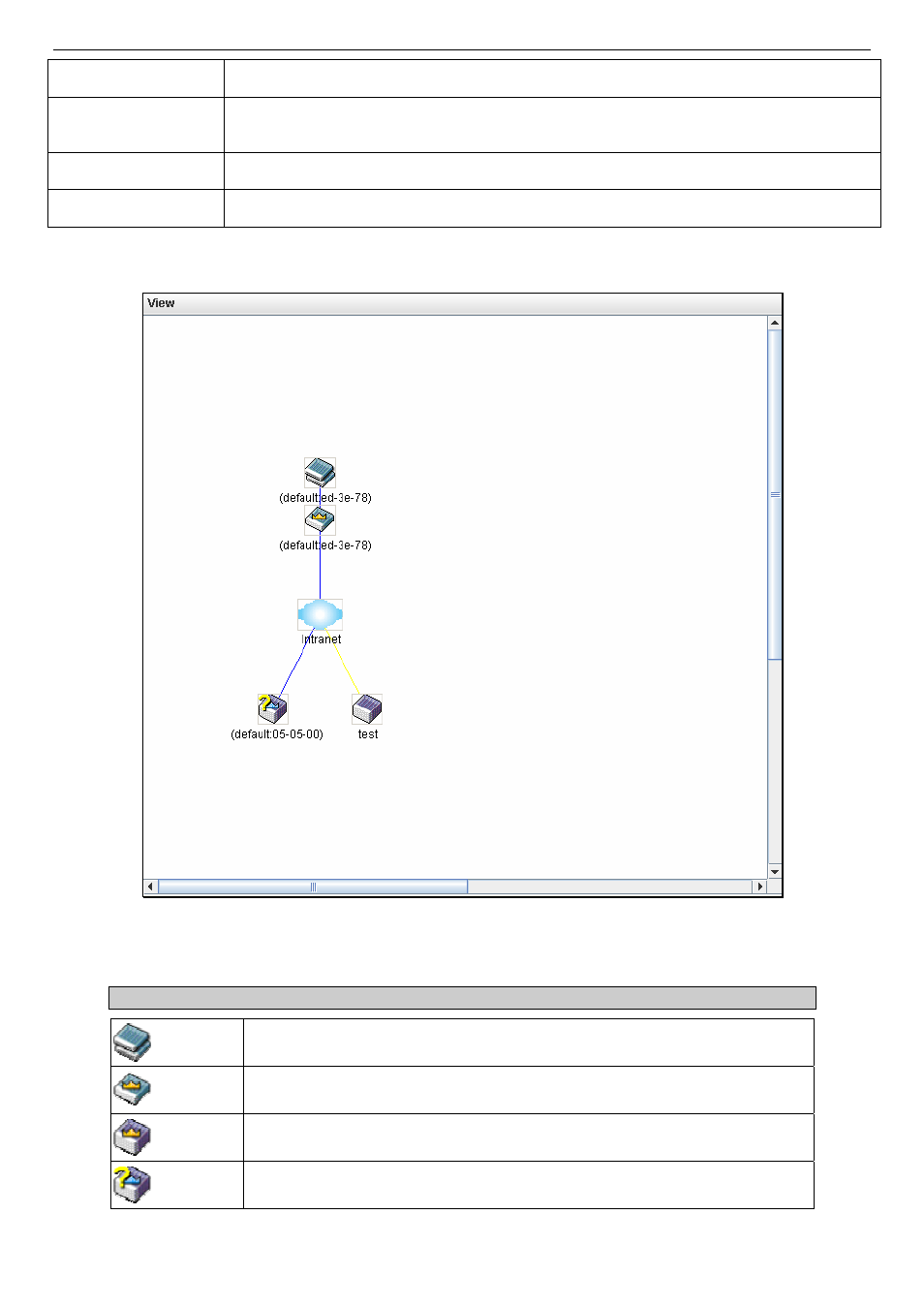

Figure 6- 38. Topology view
This screen will display how the devices within the Single IP Management Group are connected to other
groups and devices. Possible icons in this screen are as follows:
Icon Description
Group
Layer 2 commander switch
Layer 3 commander switch
Commander switch of other group
