UMB Cast (RX)
The following graph displays the Unicast, Multicast and Broadcast packets received on the Switch. To select
a port to view these statistics for, use the Port pull down menu. The user may also use the real-time graphic
of the Switch at the top of the web page by simply clicking on a port. To view this graph, click Monitoring
> Packets > UMB Cast(RX)

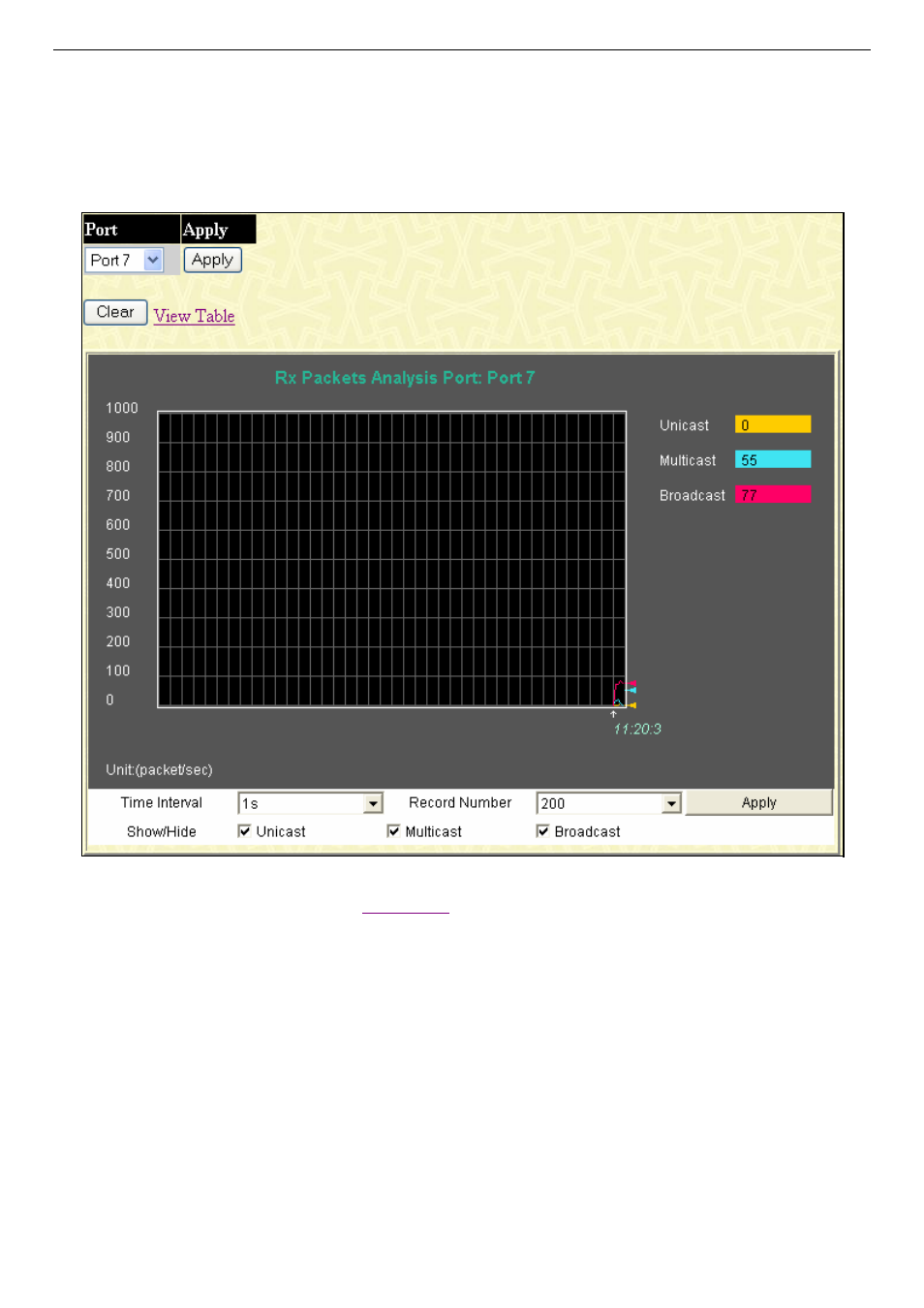

Figure 11- 5. Rx Packets Analysis window (line graph for Unicast, Multicast, and Broadcast Packets)
To view the UMB Cast Table, click the
View Table
link, which will show the following table:
