DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
89
Static VLAN Entry
The Static VLAN Entry table allows the user to configure the Static VLAN entries for the switch. To view
this window click L2 Features > VLAN > Static VLAN Entry

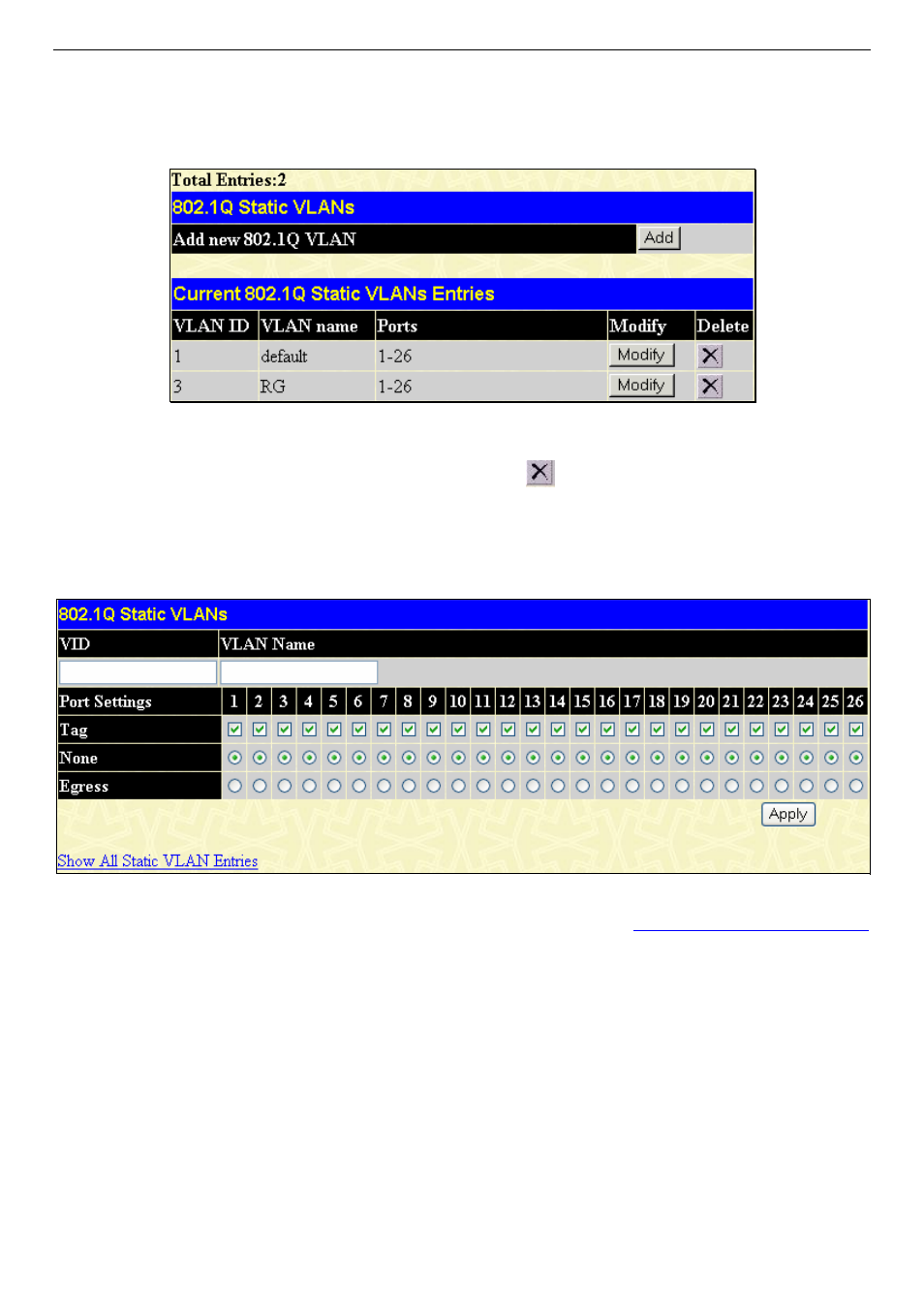

Figure 7- 4. 802.1Q Static VLANs window
The 802.1Q Static VLANs menu lists all previously configured VLANs by VLAN ID and VLAN Name.
To delete an existing 802.1Q VLAN, click the corresponding button under the Delete heading. To edit
an entry click the corresponding Modify button.
To create a new 802.1Q VLAN, click the Add button in the 802.1Q Static VLANs menu. A new menu will
appear, as shown below, to configure the port settings and to assign a unique name and number to the new
VLAN. See the table below for a description of the parameters in the new menu.
Figure 7- 5. 802.1Q Static VLANs – (Add)
To return to the Current 802.1Q Static VLANs Entries window, click the Show All Static VLAN Entries
link. To change an existing 802.1Q VLAN entry, click the Modify button of the corresponding entry you
wish to modify. A new menu will appear to configure the port settings and to assign a unique name and
number to the new VLAN. See the table below for a description of the parameters in the new menu.
