Right click, Group icon, Commander switch icon – D-Link DES-3018 User Manual
Page 78
DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
65
Right Click
Right clicking on a device will allow the user to perform various functions, depending on the role of the
Switch in the SIM group and the icon associated with it.
Group Icon

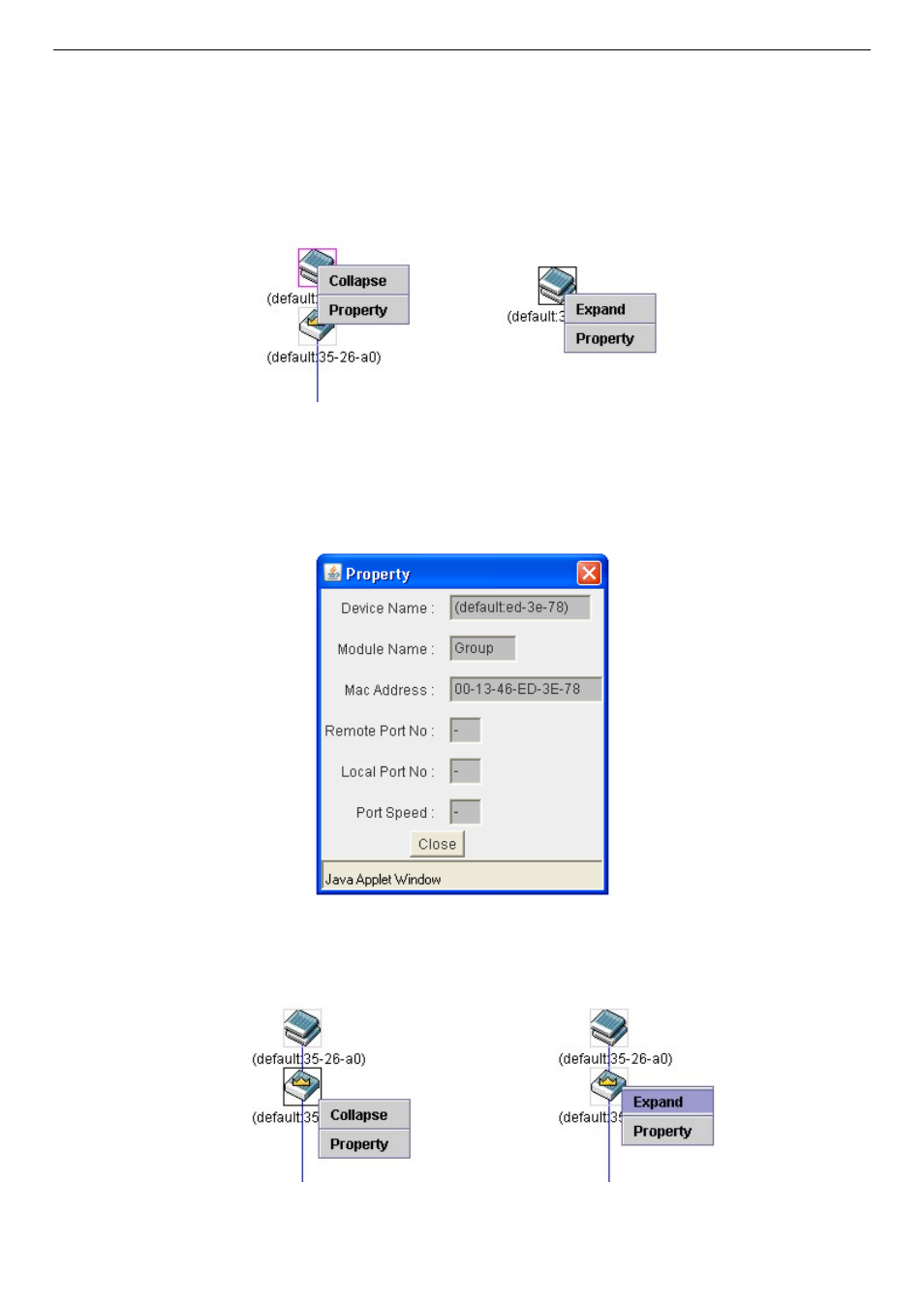

Figure 6- 41. Right Clicking a Group Icon
The following options may appear for the user to configure:
•
Collapse - to collapse the group that will be represented by a single icon.
•
Expand - to expand the SIM group, in detail.
•
Property - to pop up a window to display the group information.
Figure 6- 42. Property window
Commander Switch Icon
Figure 6- 43. Right Clicking a Commander Icon
