• Packet Content Mask instructs the Switch to examine the packet header.
VLAN Name Allows the entry of a name for a previously configured VLAN.
Source IP Source IP Address - Enter an IP Address mask for the source IP address.
Destination IP Destination IP Address- Enter an IP Address mask for the destination IP address.
DSCP(0-63) Enter the DSCP bit for which to identify incoming packets. The user may choose a DSCP bit
between 0-63.
Port The Access Rule may be configured on a per-port basis by entering the port number of the
Switch into this field. Entering all will denote all ports on the Switch.
To view the settings of a previously correctly configured rule, click in the Access Rule Table to view the
following screen:

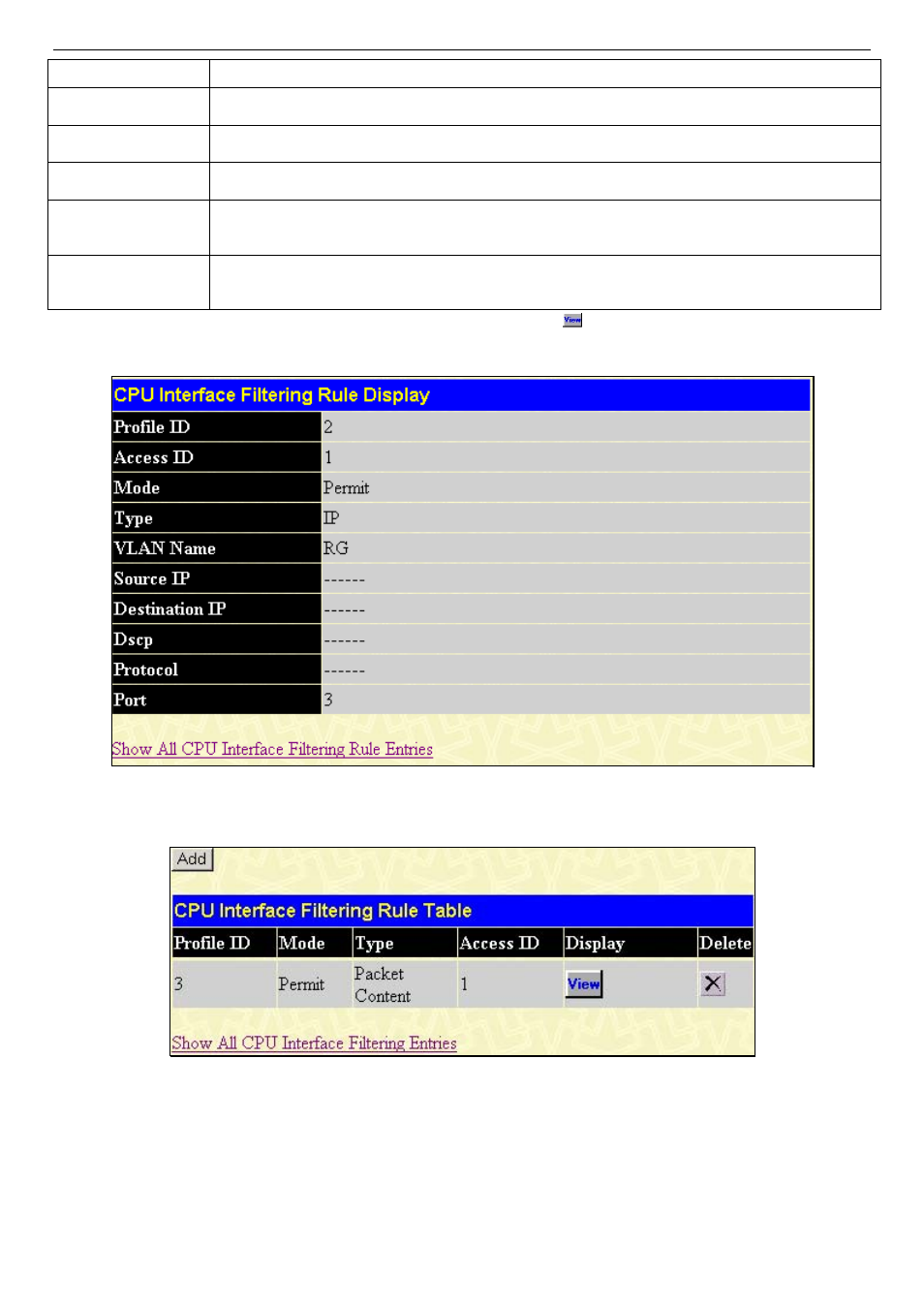

Figure 9- 12. CPU Interface Filtering Rule Display - IP
The following window is the CPU Interface Filtering Rule Table for Packet Content.
Figure 9- 13. CPU Interface Filtering Rule Table – Packet Content
