DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
203
Appendix B
Cables and Connectors
When connecting the Switch to another switch, a bridge or hub, a normal cable is necessary. Please review
these products for matching cable pin assignment.

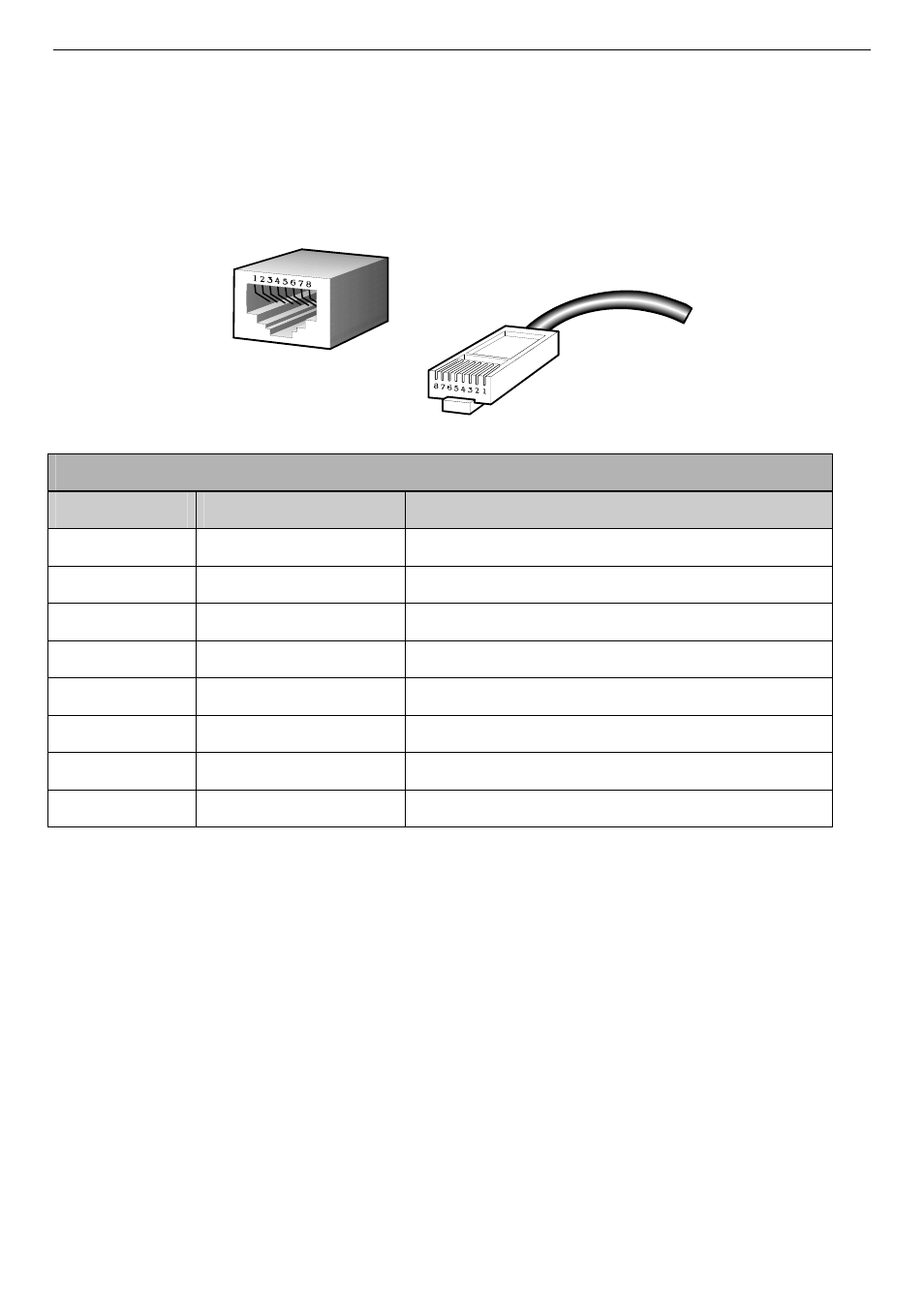

The following diagrams and tables show the standard RJ-45 receptacle/connector and their pin assignments.
Appendix 1- 1. The standard RJ-45 port and connector
RJ-45 Pin Assignments
Contact
MDI-X Port
MDI-II Port
1 BI-DB+
BI-DA+
2 BI-DB-
BI-DA-
3 BI-DA+
BI-DB+
4 BI-DD+
BI-DC+
5 BI-DD-
BI-DC-
6 BI-DA-
BI-DB-
7 BI-DC+
BI-DD+
8 BI-DC-
BI-DD+
Appendix 1- 2. The standard RJ-45 pin assignments
