Configure the following Priority Setting parameters:
Parameter Description
From/To Users may select a port or group of ports to assign ToS priority settings, based on the
following Main Select field.
MainSelect Select the general priority settings for the ports previously stated using the pull-down
menu. Priority option include:
• none – Choosing this option will clear the selected ports form having CoS priority
settings.
• port_priority – Choosing this option will assign ports to map CoS priorities to
individual ports.
• 802.1p_priority - Choosing this option will assign ports to map CoS priorities to
802.1p priorities.
• MAC-Base - Choosing this option will assign ports to map CoS priorities to MAC
addresses.
• tos - Choosing this option will assign ports to map CoS priorities to ToS priorities.
• dscp- Choosing this option will assign ports to map CoS priorities to DSCP
priorities.
Click Apply to implement changes made.
TOS Priority Settings
Use the TOS Priority Settings menu to configure ToS priority mapping for Class of Service on the Switch.
When a packet is received containing this ToS tag, it will be mapped to the CoS queue configured here.
These settings will only take effect if the priority settings per port are configured for ToS. To view this table
click, CoS > TOS Priority Settings

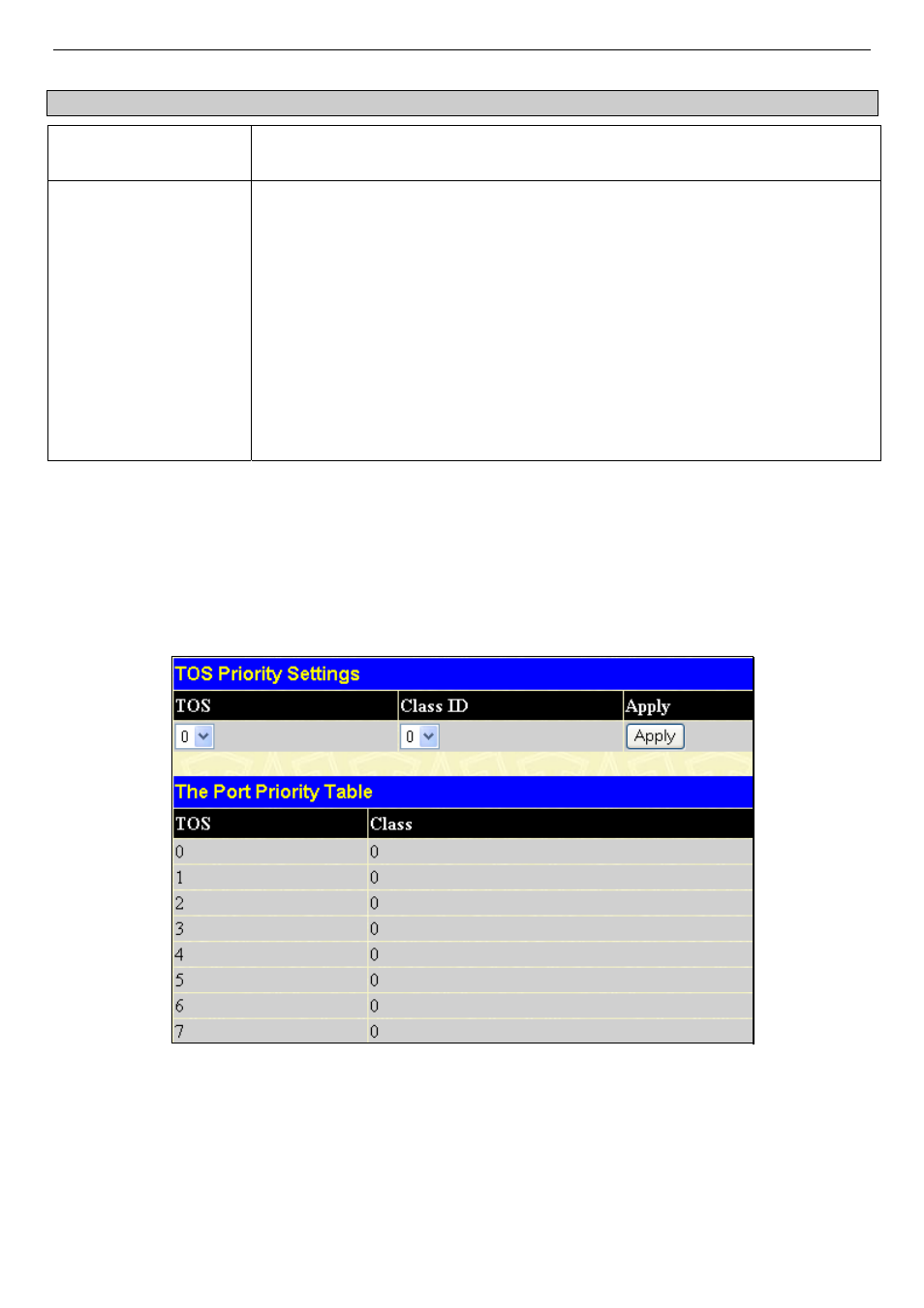

Figure 8- 8. TOS Priority Setting
Select the TOS value from the pull-down menu and the Class ID of the priority level mapped to and click
the Apply button. The new mapping is displayed in the Port Priority Table below.
