Page 18
DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
5
Front-Panel Components and LED Indicators
The front panel of the Switch consists of LED indicators for Power, Console, Link/Act and Speed, 8/16/24
Fast-Ethernet ports (DES-3010F, DES-3010FL, DES-3010G, DES-3016, DES-3018, DES-3026), two
optional module ports (DES-3018/3026 only), a gigabit 1000BASE-T copper port (DES-3010F/FL/G), a
100BASE-FX Ethernet port (DES-3010F, DES-3010FL only) and a SFP Gigabit Ethernet port (DES-
3010G). Also, the front panel has a RS-232 communication port.

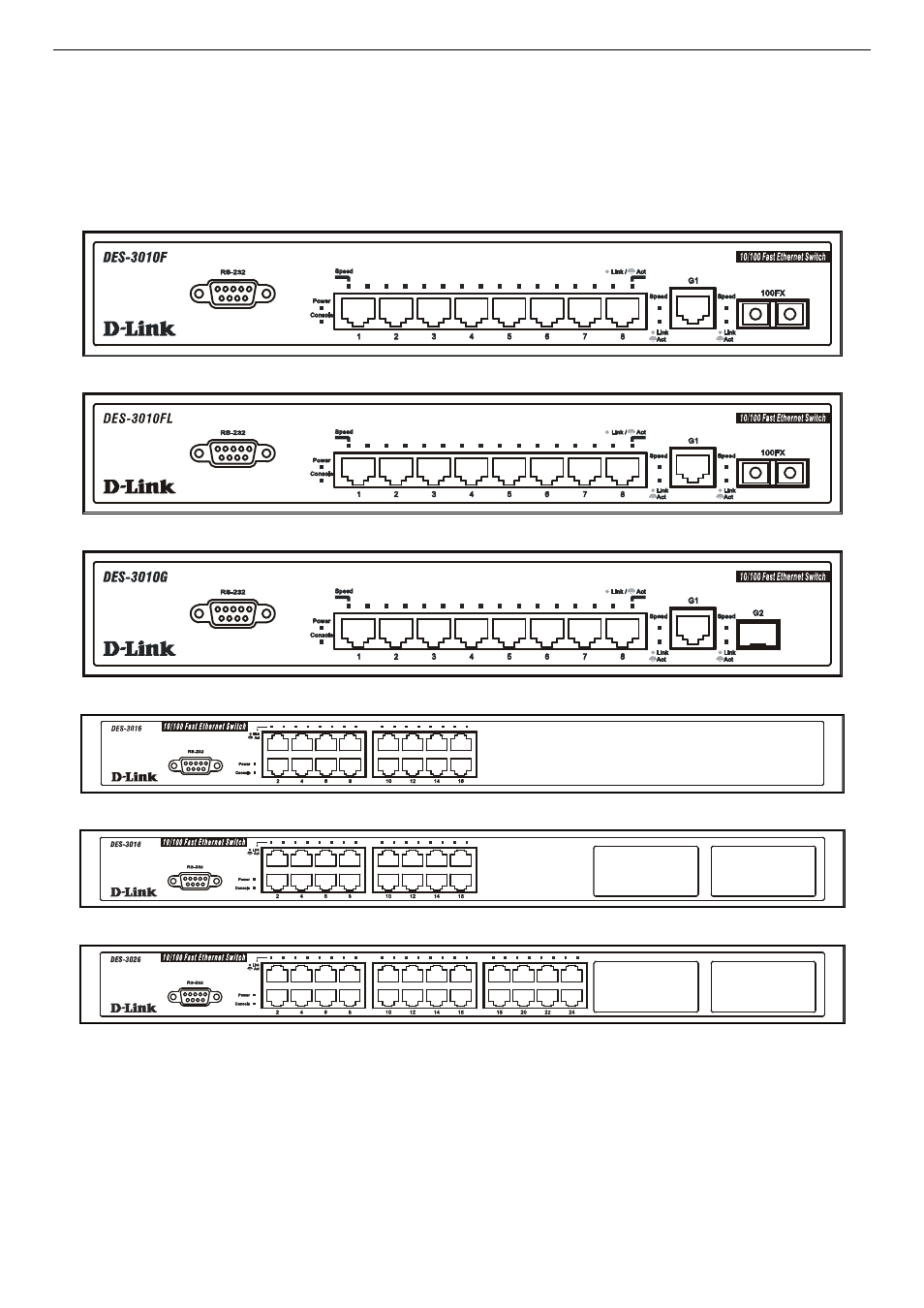

Figure 1- 1. DES-3010F Front Panel
Figure 1- 2. DES-3010FL Front Panel
Figure 1- 3. DES-3010G Front Panel
Figure 1- 4. DES-3016 Front Panel
Figure 1- 5. DES-3018 Front Panel
Figure 1- 6. DES-3026 Front Panel
