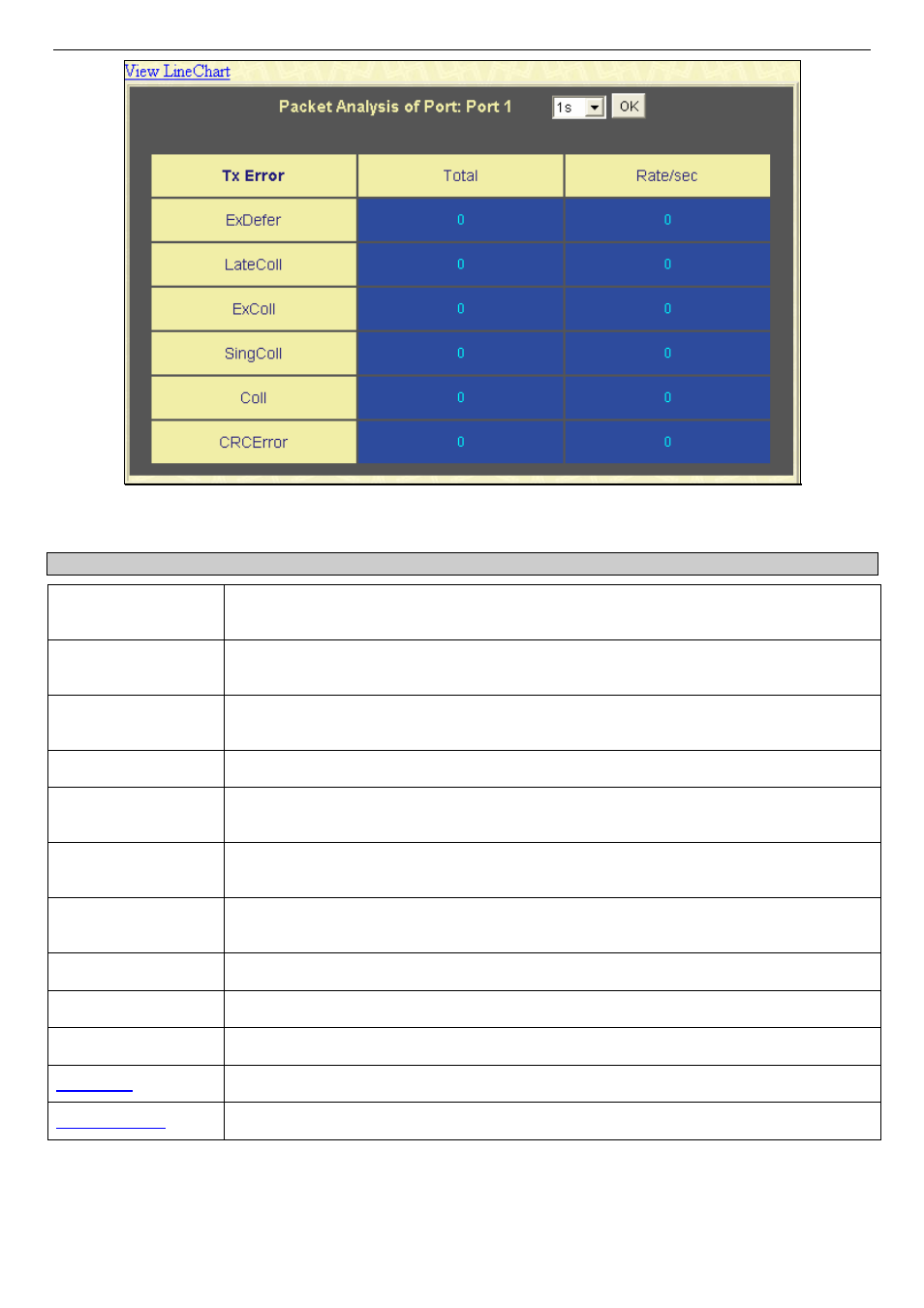

Figure 11- 12. Tx Error Analysis window (table)
The following fields may be set or viewed:
Parameter Description
Time Interval [1s ] Select the desired setting between 1s and 60s, where "s" stands for seconds. The default
value is one second.
Record Number [200] Select number of times the Switch will be polled between 20 and 200. The default value is
200.
ExDefer Counts the number of packets for which the first transmission attempt on a particular
interface was delayed because the medium was busy.
CRC Error Counts otherwise valid packets that did not end on a byte (octet) boundary.
LateColl Counts the number of times that a collision is detected later than 512 bit-times into the
transmission of a packet.
ExColl Excessive Collisions. The number of packets for which transmission failed due to excessive
collisions.
SingColl Single Collision Frames. The number of successfully transmitted packets for which
transmission is inhibited by more than one collision.
Coll An estimate of the total number of collisions on this network segment.
Show/Hide Check whether or not to display ExDefer, LateColl, ExColl, SingColl, and Coll errors.
Clear Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Line Chart Clicking this button instructs the Switch to display a line graph rather than a table.
