DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
128
To set the Access Rule for Ethernet, adjust the following parameters and click Apply.
Parameters Description
Profile ID This is the identifier number for this profile set.
Mode Select Permit to specify that packets that match the access profile are forwarded by the Switch,
according to any additional rule added (see below).
Select Deny to specify that packets that match the access profile are not forwarded by the
Switch and will be filtered.
Access ID Type in a unique identifier number for this access and priority. This value can be set from 1 - 5.
Type Selected profile based on Ethernet (MAC Address), IP address or Packet Content.
• Ethernet instructs the Switch to examine the layer 2 part of each packet header.
• IP instructs the Switch to examine the IP address in each frame's header.
• Packet Content Mask instructs the Switch to examine the packet header.
VLAN Name Allows the entry of a name for a previously configured VLAN.
Source MAC Source MAC Address - Enter a MAC Address for the source MAC address.
Destination MAC Destination MAC Address - Enter a MAC Address mask for the destination MAC address.
802.1p Specifies that the access profile will apply only to packets with this 802.1p priority value.
Ethernet Type Specifies that the access profile will apply only to packets with this hexadecimal 802.1Q
Ethernet type value (hex 0x0-0xffff) in the packet header. The Ethernet type value may be set
in the form: hex 0x0-0xffff, which means the user may choose any combination of letters and
numbers ranging from a-f and from 0-9999.
Port The Access Rule may be configured on a per-port basis by entering the port number of the
Switch into this field. Entering all will denote all ports on the Switch.

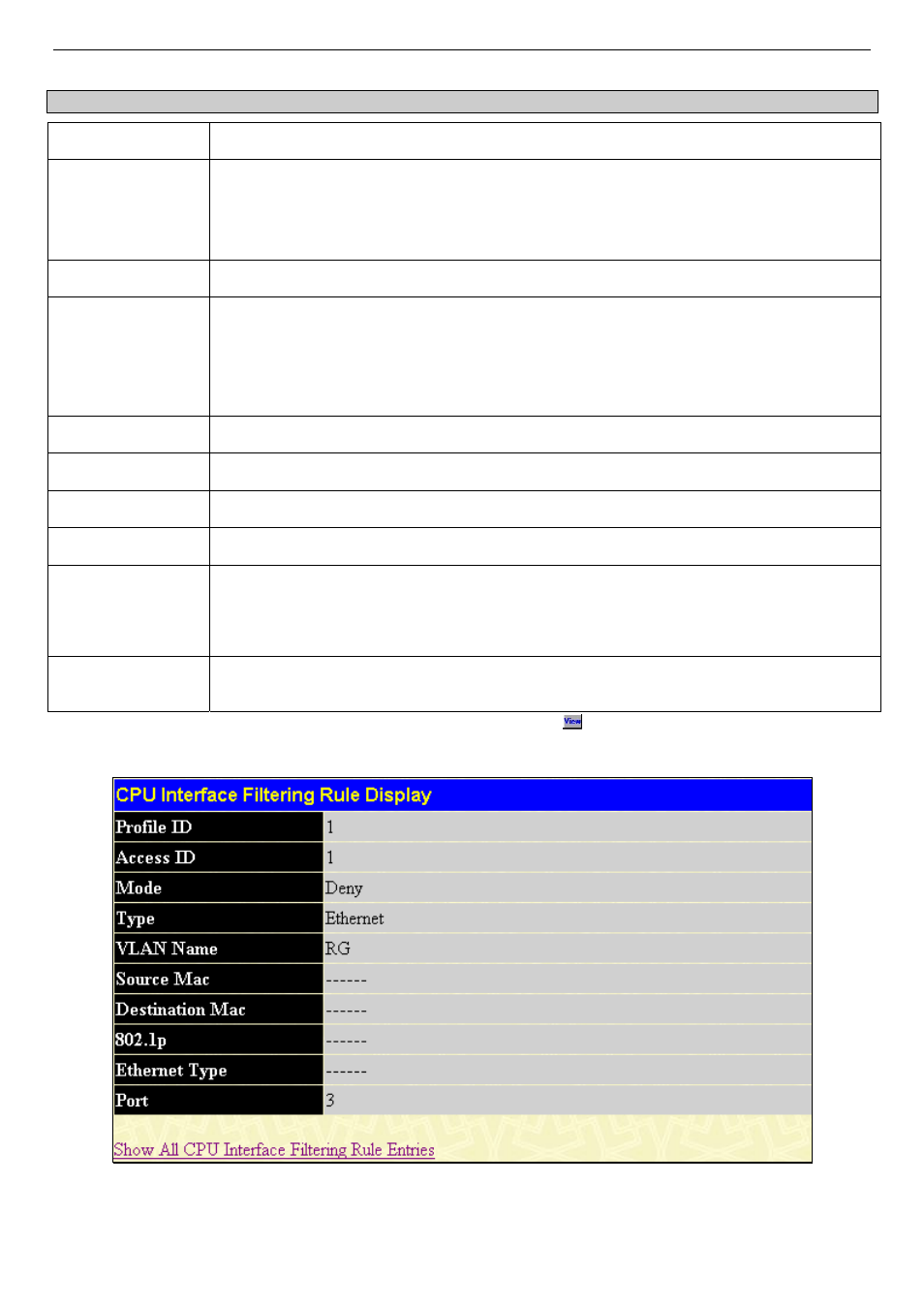

To view the settings of a previously correctly configured rule, click in the Access Rule Table to view the
following screen:
Figure 9- 9. CPU Interface Filtering Rule Display – Ethernet
