DES-3010F/DES-3010FL/DES-3010G/DES-3016/DES-3018/DES-3026 Fast Ethernet Switch Manual
119
DSCP Priority Settings

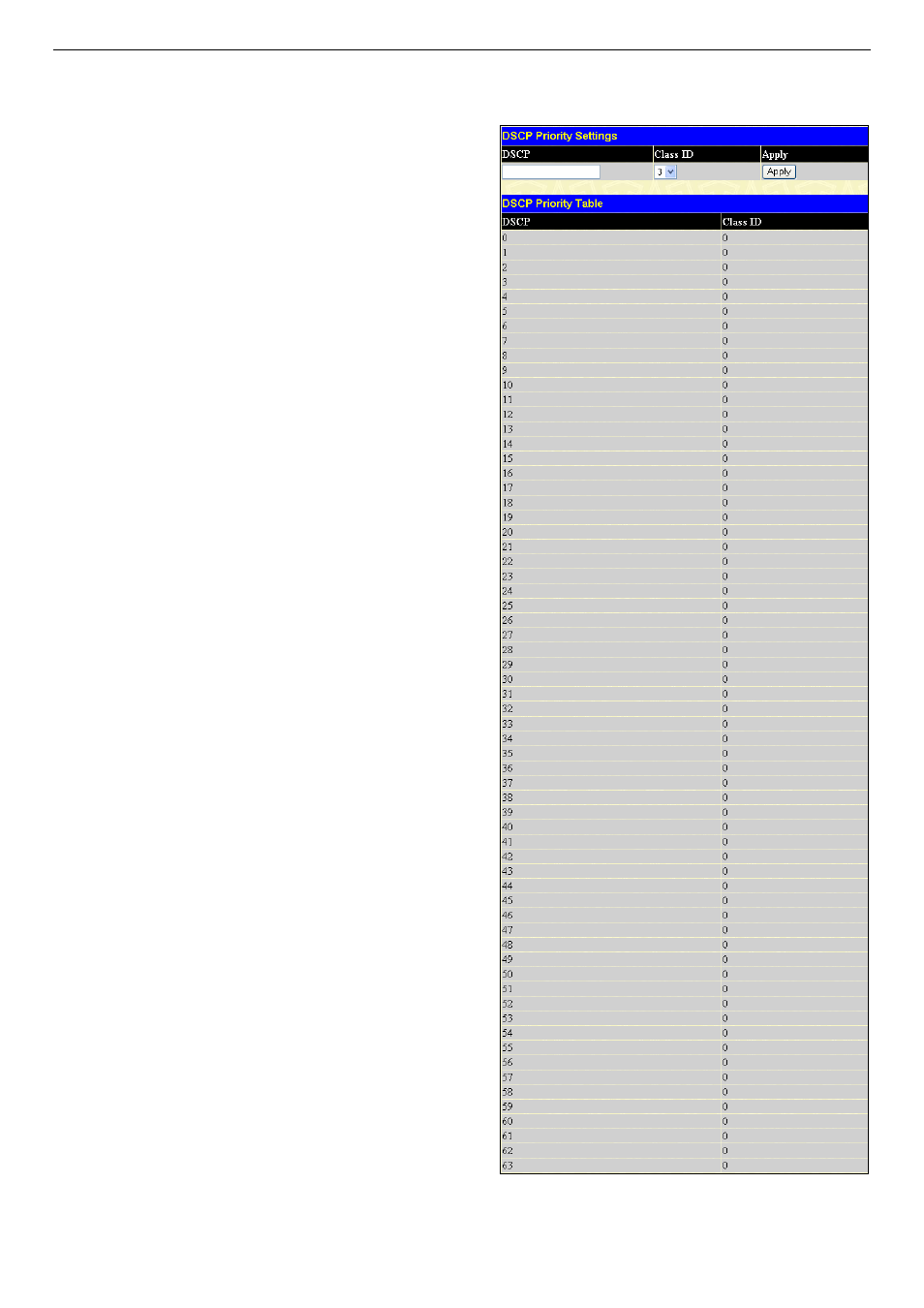

Figure 8- 9. DSCP Priority Setting
Use the DSCP Priority Settings menu to configure
DSCP priority mapping for Class of Service on the
Switch. When a packet is received containing this DSCP
tag, it will be mapped to the CoS queue configured here.
These settings will only take effect if at least one of the
priority settings per port is configured for DSCP.
Type the DSCP bit level and the Class ID priority from
the pull-down menu mapped to and click the Apply
button. The new mapping is displayed in the DSCP
Priority Table below.
To view this table click, CoS > DSCP Priority Settings
