Form I-Y, P/N 273646R6, Page 6

3.3 Storage

If this system is going to be stored, take precautions to prevent condensate formation

inside the electrical compartments and motors. To prevent damage to the unit, do not

store sitting on the ground.

4.0 Clearances and Dimensions

4.1 Clearances

IMPORTANT: The area above the condenser fans MUST ALWAYS be

totally open space to allow proper airflow through the condenser

coils.

Airflow

Outside

Air

Hood

Controls

24”

610mm

72” (1829mm) -

Service Clearance to Remove a Coil

48” (1219mm) - Service Clearance to Remove

Compressors, Coils, Filter Driers, etc.

84” (2134mm)

- Service

Clearance to

Remove the Heat

Exchanger in a

Unit w/Gas Heat

36” (914 mm)

- Service

Clearance for

Cooling Only or

Unit w/Electric Heat

Top Clearance - 60” (1524mm)
Bottom Clearance - 0” (0mm)

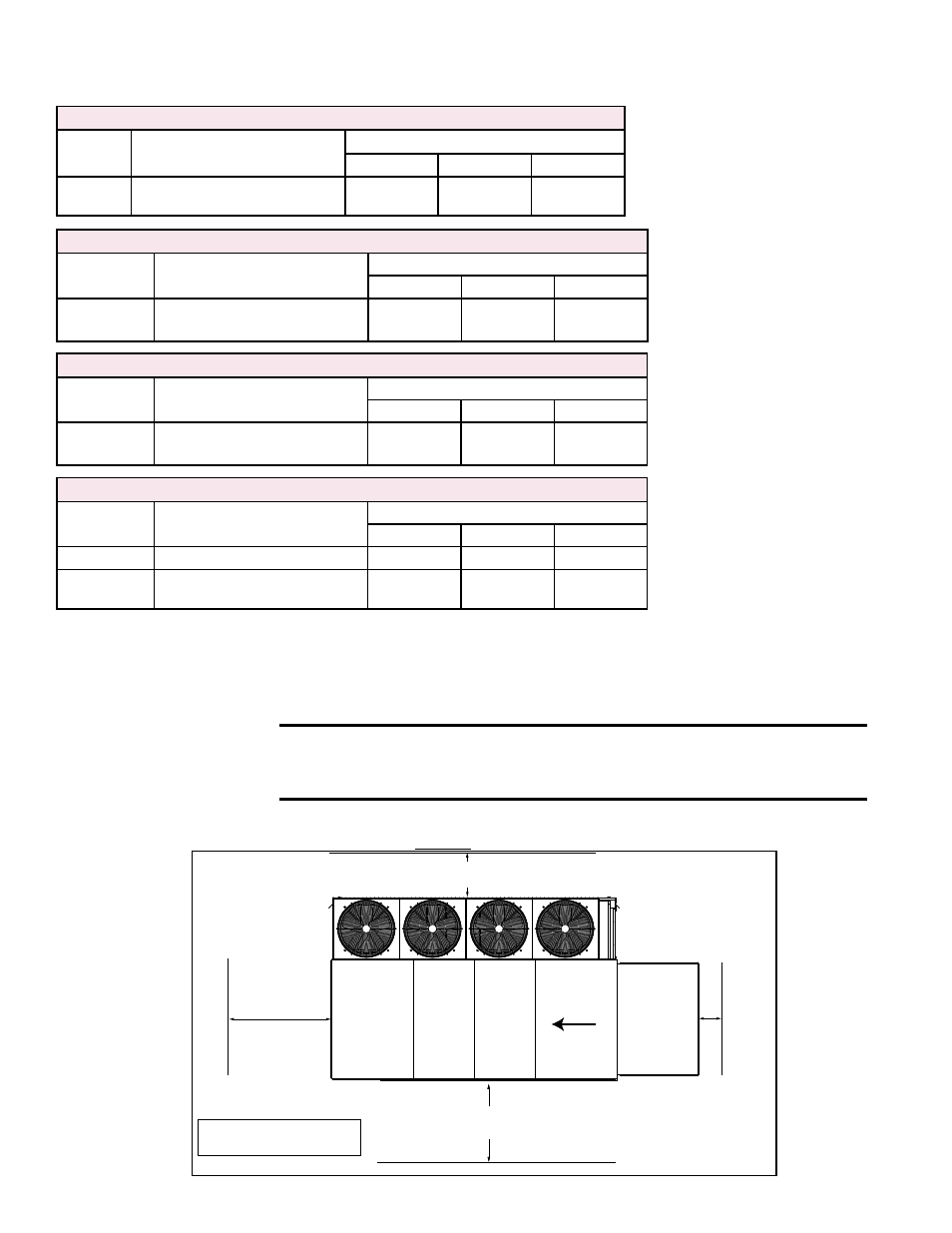

FIGURE 1 - Minimum Clearances - All Sizes

Outside Air Hood

Option

Description

Cabinet Size

1

2

3

AS16

Outside air hood with

permanent prefilters

273283

273373

284598

3.0 Receiving, Shipped Separate and Storage (cont’d)

3.2 Shipped Separate Accessories and Shipped Loose Parts (cont’d)

Exhaust Fan Control Option

Option

Description

Cabinet Size

1

2

3

EFC4

Outside pressure pickup port
Room pressure port

234905
234906

234905
234906

234905
234906

Inlet Damper Control Option

Option

Description

Cabinet Size

1

2

3

GF5

Outside pressure pickup port

Room pressure port

234905
234906

234905
234906

234905
234906

Fan Control Option

Option

Description

Cabinet Size

1

2

3

VFC3

4”static pressure probe

234821

234821

234821

VFC4

Outside pressure pickup port

Room pressure port

--

234905

234906

234905

234906
