6-93
PFC-6030 • 5403595 • Rev C • 2/13
Cabinet Installation
The PSN-1000/PSN-1000(e) slides into the guides located at the bottom of the panel, and then secured with screws as shown in
the following illustration.

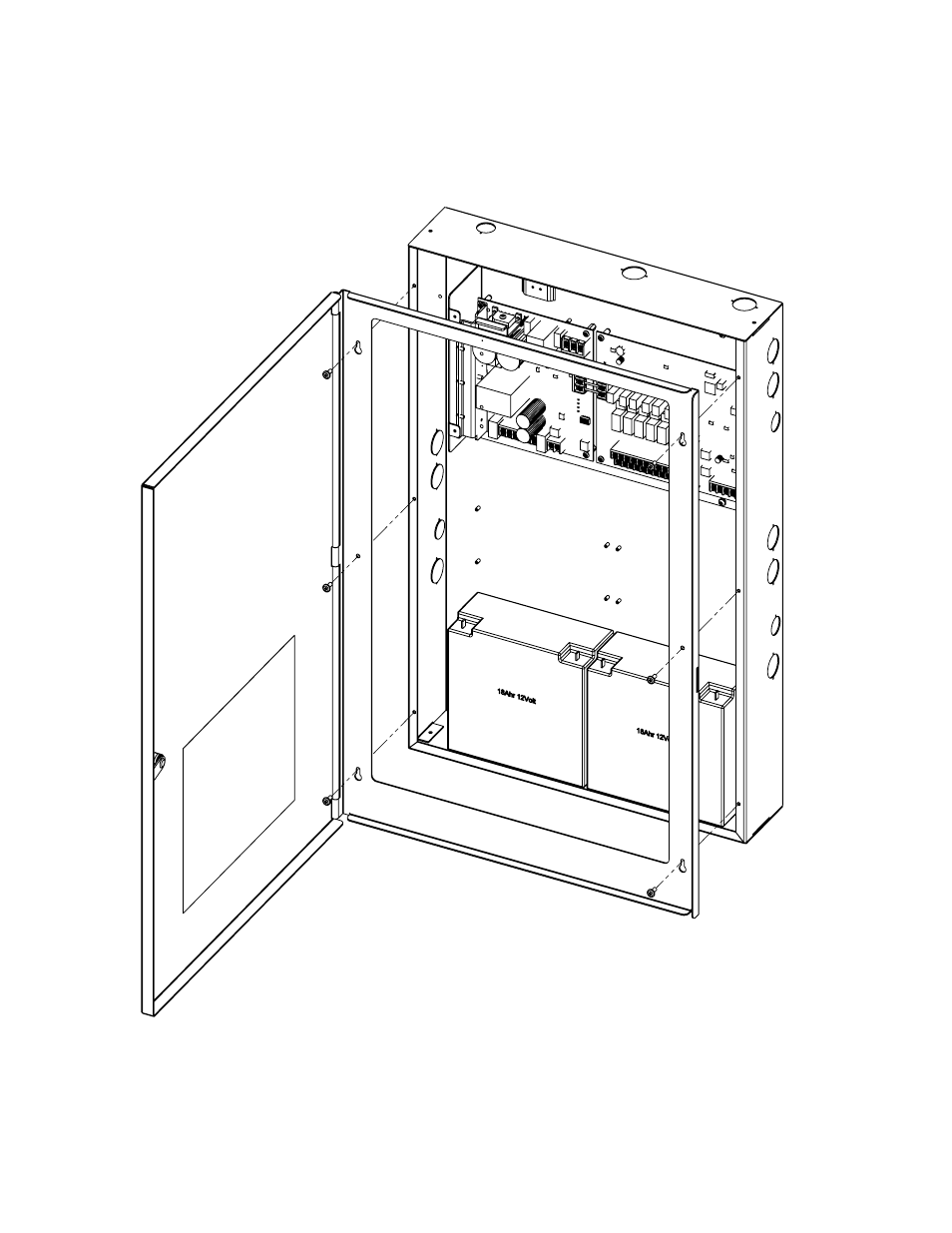

PSN-1000 Panel Installation Showing Cabinet
Figure 134.
DWG #602-22
