Section 4: Operation
This section provides an overview of the control panel’s basic operations, which includes the status LeDs, function pushbuttons,
and a Control Panel Menu Tree quick reference sheet.
Control Panel Basic Operation
The control panel is comprised of a two (2) line x 16-character LCD display panel, arrow keys, push button function keys, status
LeDS, and the numeric keypad. A description of each component is included in this section, and refer to the figure below for an
example.

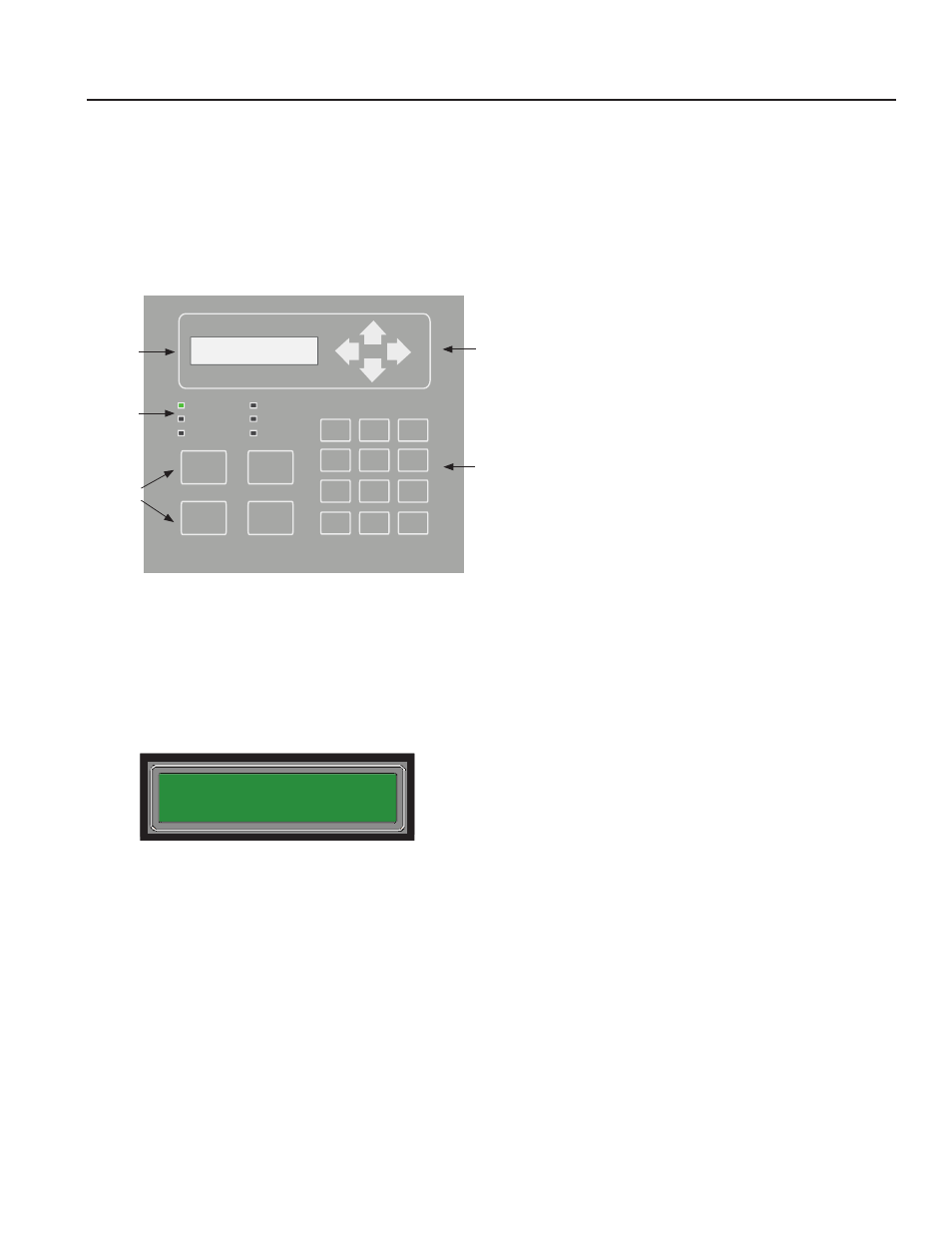

PFC-6030 Control Panel Display Figure 53.
Note: Authorized system operators must use a key to open the outer door of the cabinet.
LCD Display
The LCD panel displays the standard Start-up menu as shown below. The LCD displays up to thirty-two (32) characters of
information displays, providing important feedback to system users, i.e., system messages, status information, trouble conditions,
or input changes. The LCD also provides access to the Main Menu for daily system operations and specific programming
functions (refer to “Section 5: Programming – Menu Functions” for details on these topics).
LCD Start-Up Screen Figure 54.
Note: You may customize the Start-up screen to display a specific job site name or other relevant descriptive text.
