5-79

PFC-6030 • 5403595 • Rev C • 2/13

To configure a range of points:

Click the first point to configure from the

1.

“Function” field.

Press and hold the

2.

SHIFT key, then click in “Function” field of last point.

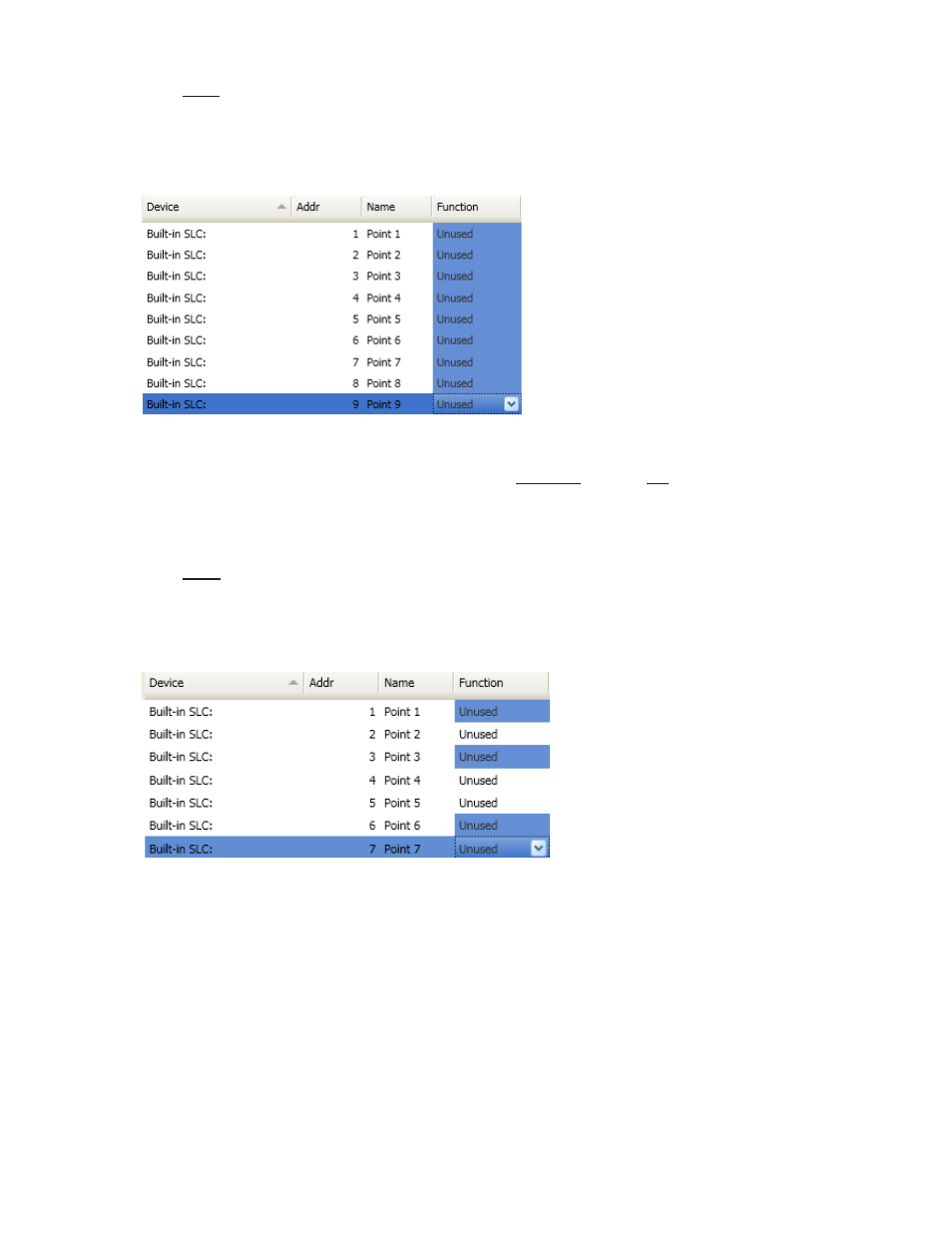

Example of Configuring a “Range” of Points

Figure 105.

Right-click from

3.

“Function” field to display configuration options.

Note: If you right-click outside of “Function” field, the range is deselected, and only one (1) device will be configured.
Click on device type from shortcut menu.

4.

Continue configuring other points, as needed.

5.

To configure a group of selective points:

Click the first point in

1.

“Function” field to configure.

2. Press and hold the CTRL key, then click selective points (from “Function” field).

Example of Configuring “Multiple” Selective Points

Figure 106.

Right-click from

3.

Function” field to display configuration options.

Note: If you select points or right-click outside of “Function” field, the points are deselected, and only one (1) device will be

configured.
