General System Functions
Job Details
Site specific information, such as company name, address and phone numbers may be entered in this window. This information is
stored in the panel and is used to identify the panel when using e-mail reporting options. Please refer to the figure shown below.
To enter site information:
Click the
1.
Job Details program option. The Job Details window displays.

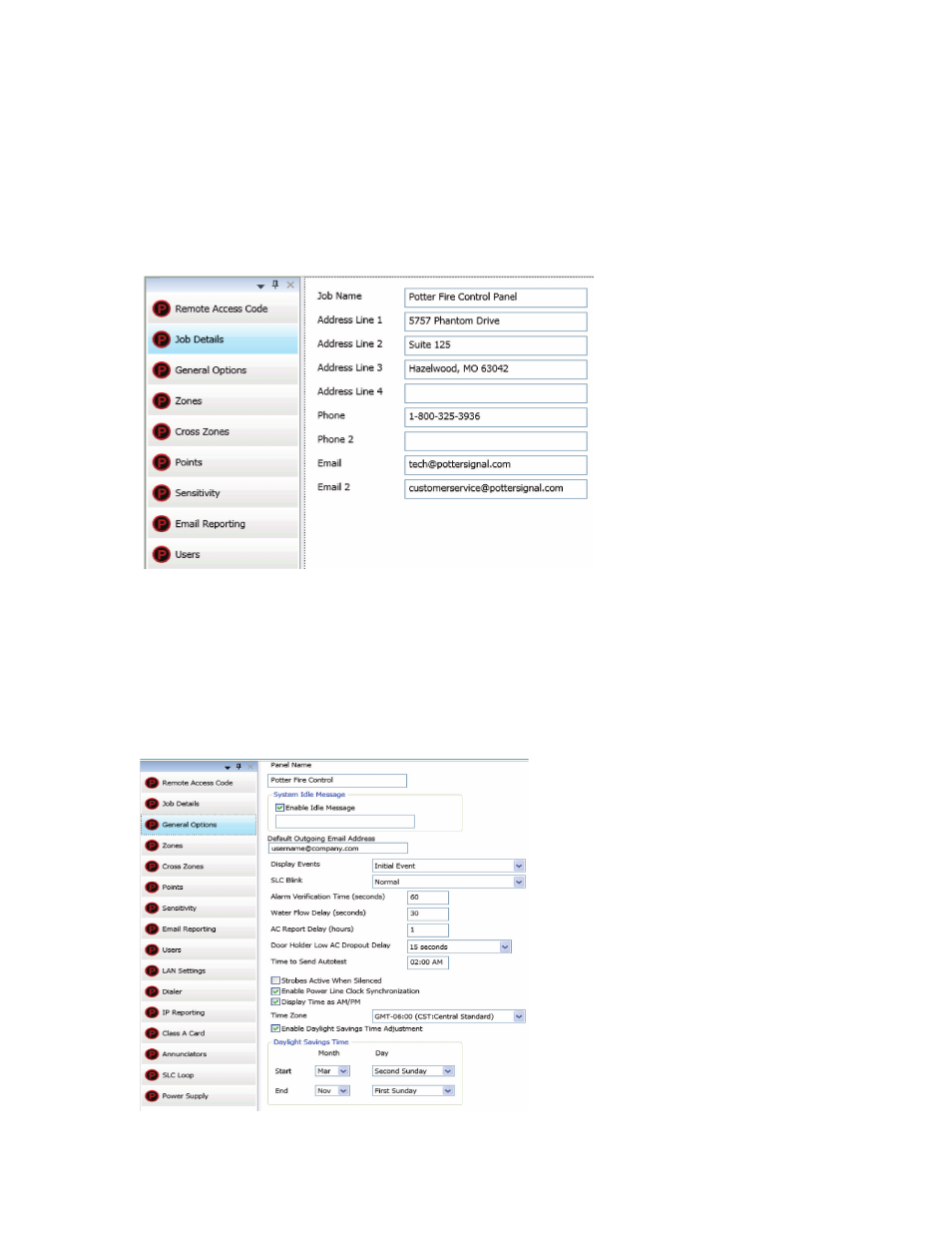

Job Details Window
Figure 80.
Click in each applicable field to enter information.
2.
Note: You may also press the TAB key to move to next field.
General Options
The General Options window contains a variety of general system settings, such as the panel’s default name, idle message, and
the time an Autotest will be sent to the monitoring station.
General Options Window
Figure 81.
