Cabinet Dimensions

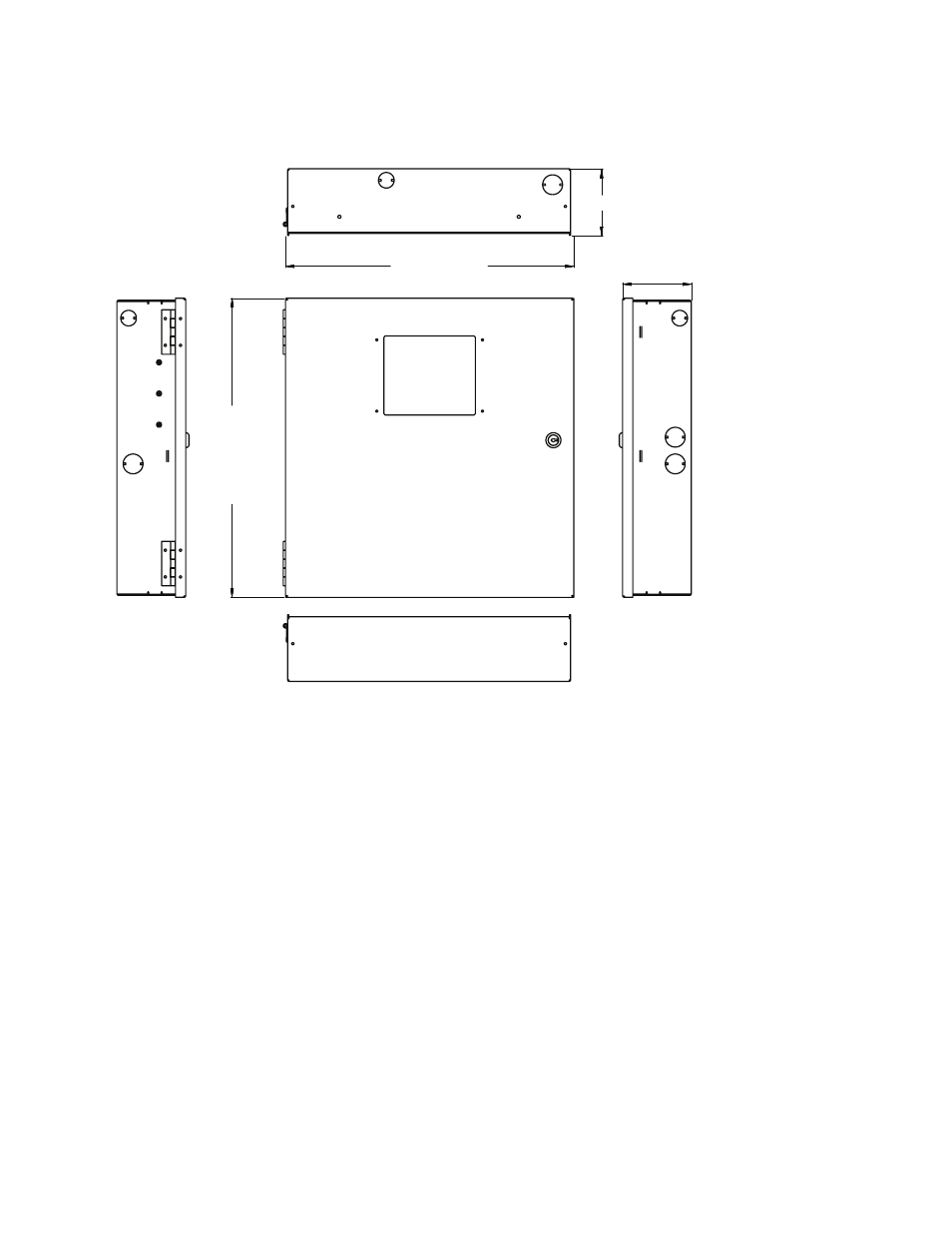

PFC-6030 Cabinet Dimensions Figure 1.
DOOR =
16.78
"
BACKBOX = 16.56"
DOOR = 16.07"
BACKBOX = 15.77"
3.75 " DEPTH =
DEPTH = 3.84"
TOP
LEFT SIDE RIGHT SIDE
BOTTOM
DWG #593-1
