3-18
PFC-6030 • 5403595 • Rev C • 2/13
Monitored Output Module – 4 inch mount (MOM-4)
If the power supply connected to the MOM-4 is power limited, then the outputs are power limited. An example of a MOM-4
wired as a conventional application is shown here.

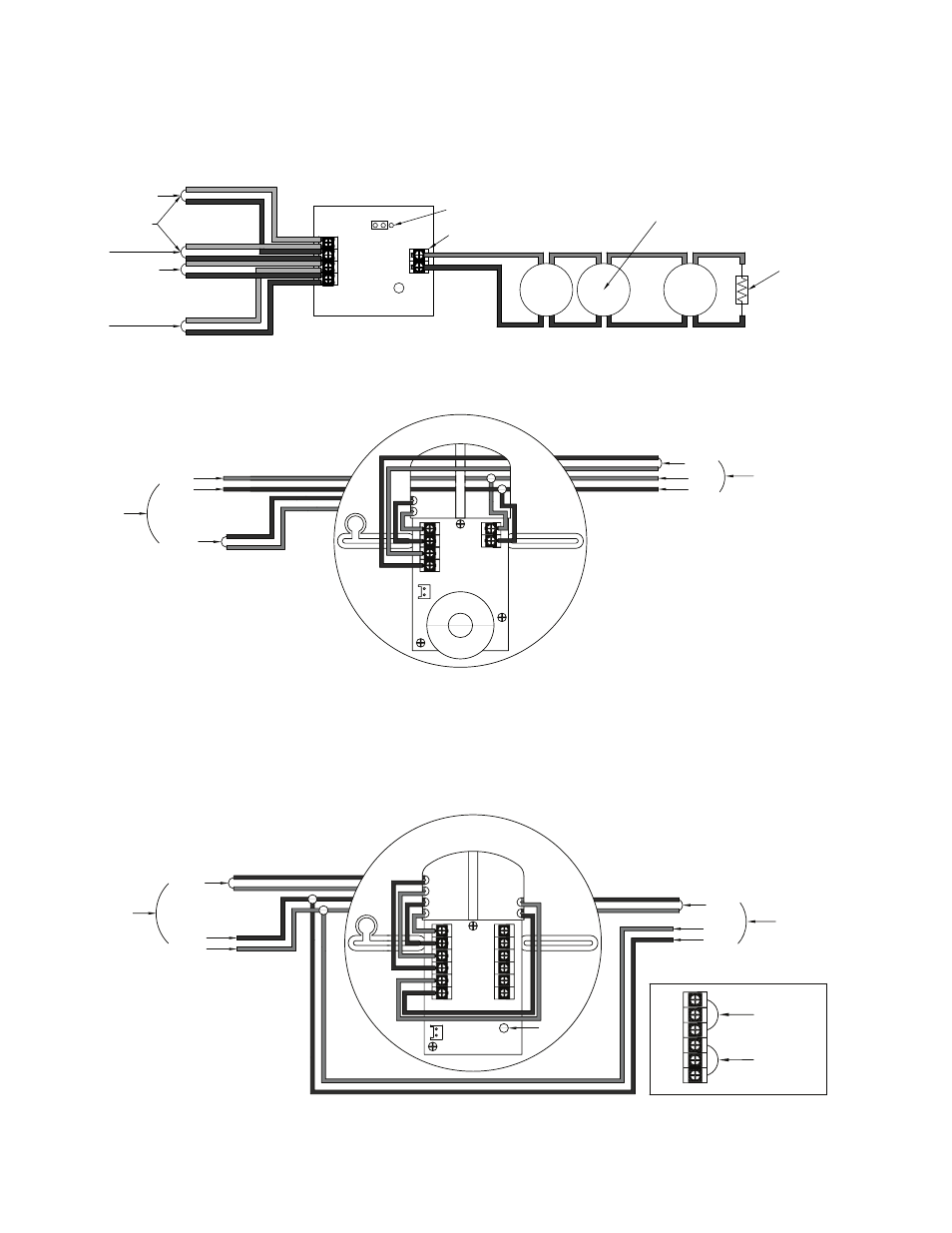

Example of MOM-4 with NAC Connections Figure 18.
Analog Sounder Base (ASB)
Example of Analog Sounder Base Wiring Figure 19.
Notes:
The supply power must be coded in order for the output to be coded. 1.
ASB does not generate a coded output. It will track the pattern delivered to its 24 vDC input. 2.
Analog Relay Base (ARB)
Example of Analog Relay Base Wiring Figure 20.
Analog Sounder Base
Model No. ASB
S-
S+
S+
S-
TB1
24+
24-
S-
S+
SLC Loop
24 VDC-
24 VDC+
From FACP or
Previous Module
SLC Loop
24 VDC+
24 VDC- To Next Module
DWG #593-19
To Next Module
Analog Relay Base
Model No. ARB
S-
24+
S+
24-
S+
S-
NO2
NO1
NC1
C1(8A)
C2(2A)
NC2
TB1 TB2
SLC Loop
24 VDC+
24 VDC-
From FACP or
Previous Module
SLC Loop
24 VDC+
24 VDC-
LED
NO2
NO1
NC1
C1(8A)
C2(2A)
NC2
TB2
8.0A / 240VAC
8.0A / 30VDC
2.0A / 240VAC
2.0A / 30VDC
DWG #593-20
DWG #593-18
Monitored Output Module
Model No. MOM-4
From FACP or Previous Module
To Next Module
From FACP or Previous Module
To Next Module
24-
24+
S-
S+
A-
A+
SLC Loop
LED
JP1
Select DC
Notification Appliance
5.1KΩ 1/2W EOLR
_
+
_
+
_
+
Output Rating:
24VDC / 2.0A
