Notification Appliance Circuits Installation
There are two (2) NAC circuits provided on the PFC-6030 rated as continuous 3 amps at 24 vDC. The NAC circuits may be
configured for Class A or Class B. (Please refer to the Class A and B wiring examples located in this section.)
NAC Wiring
Outputs are supervised and regulated. y y
Circuits are power limited. y y
Type of NAC output is selectable, and may be configured for strobe synchronization with Potter/AMSeCO, Cooper y y
Wheelock®, Gentex®, or System Sensor® strobe devices. Refer to the listing of compatible models located in the
“NAC Compatibility Document”, Potter #5403592, for this information.
The CA-6075 Class-A expander may be programmed to allow for operation of the NACs. The expander adheres to the y y
same circuit rating, supervision and regulation as other circuits.
NAC Maximum Wiring Impedance Formula
The maximum impedance is a function of the load placed on the circuit. To calculate the maximum line current impedance, use
the following formula:
(Alarm Current of Notification Appliances) x (Wire Resistance) < 3 Volts
NAC Wiring Configurations
examples of Class B and Class A Wiring follow.

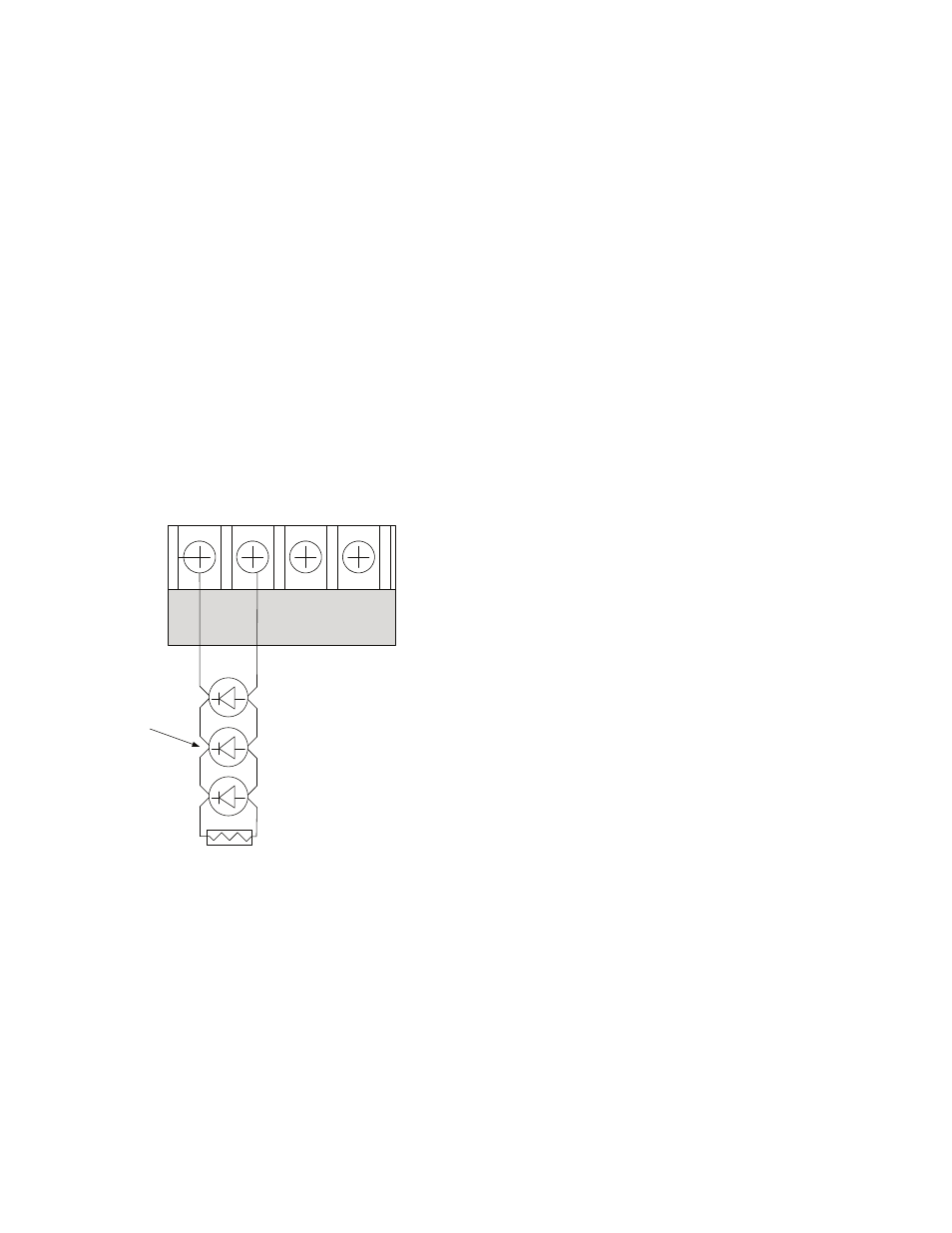

NAC Class B Wiring Example Figure 23.
NAC 1 NAC 2
- + - +
5.1k EOL
Potter Part #3005013
Notification
Appliance
Notes:
The Potter part number for the listed end of line assembly is #3005013 eOL Resistor Assembly. 1.
The panel has ground fault detection on the NAC circuits. The impedance to ground for ground fault detection is 0 ohms. 2.
DWG #602-4A
