Potter PFC-6030 User Manual
Page 87
5-81
PFC-6030 • 5403595 • Rev C • 2/13
Drag and drop selected points from the
3.
Points' window to the “Device” window. The selected points display in the
“Device” window, as shown below.

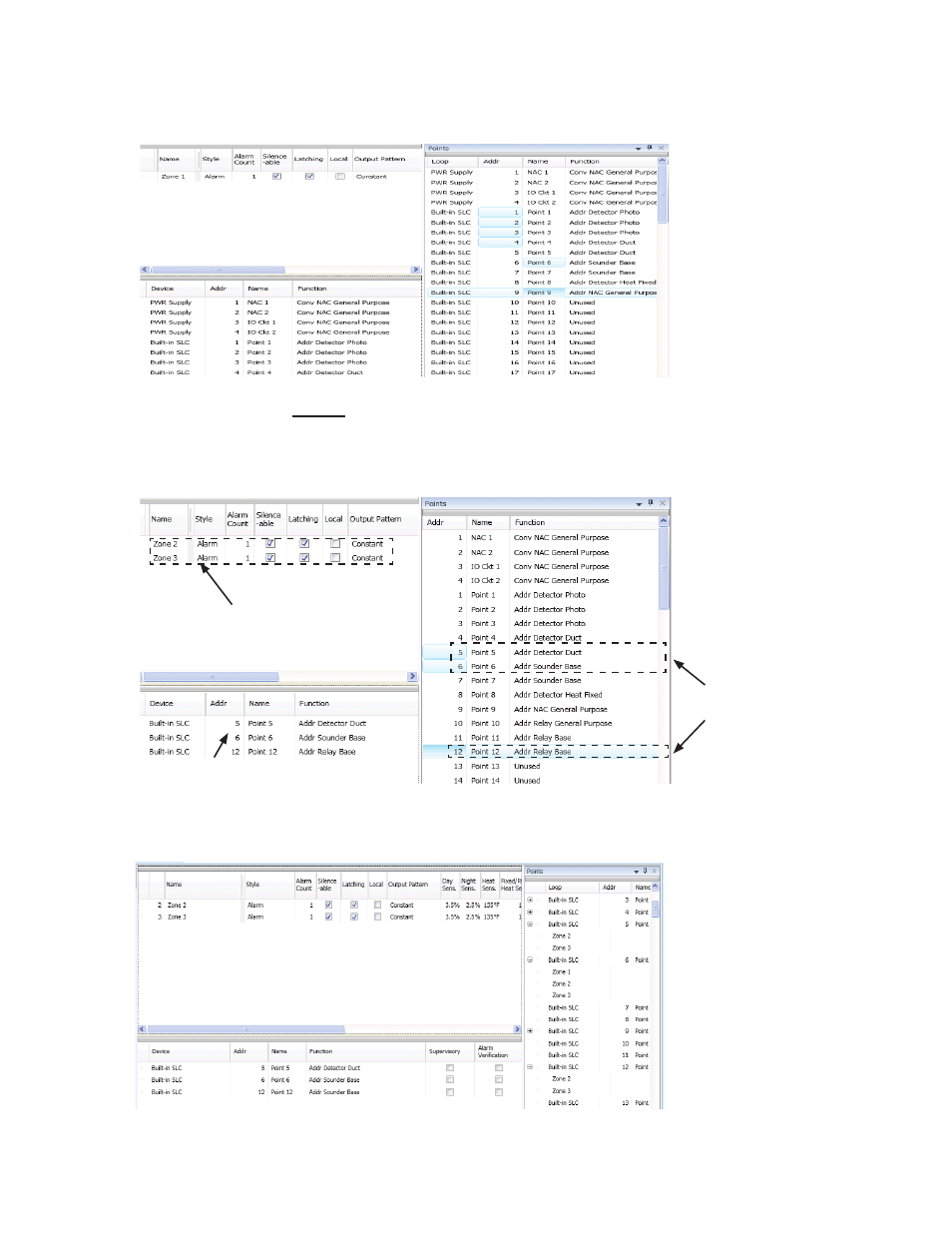

Example of Moving Selected Points into a Zone
Figure 110.
To move one or more points into multiple zones:
Select the applicable Zones in the
1.
Zones window, and select points.
Drag and drop selected points into
2.
Device window.
Example of Moving Selected Points into Two Zones
Figure 111.
Click
3.
“+” in Points window to display point assignment by Zone(s). Click “–” to collapse point assignments.
Example of Expanding Point’s Zone Assignment(s)
Figure 112.
Zones 2 & 3 are
selected in this
example.
Points 5, 6 & 12
are selected.
Points 5, 6 & 12
are configured into
Zones 2 and 3.
