Relay Board (RLY-5)
The panel supports up to thirty-one (31) Relay Boards. each RLY-5 provides five (5) Form-C relay outputs, which may be
individually mapped to any zone.
To add and configure a relay board:
Select
1.
RLY-5 from the system panel.
Click the
2.
Add Device button to display the “Add Device” window.

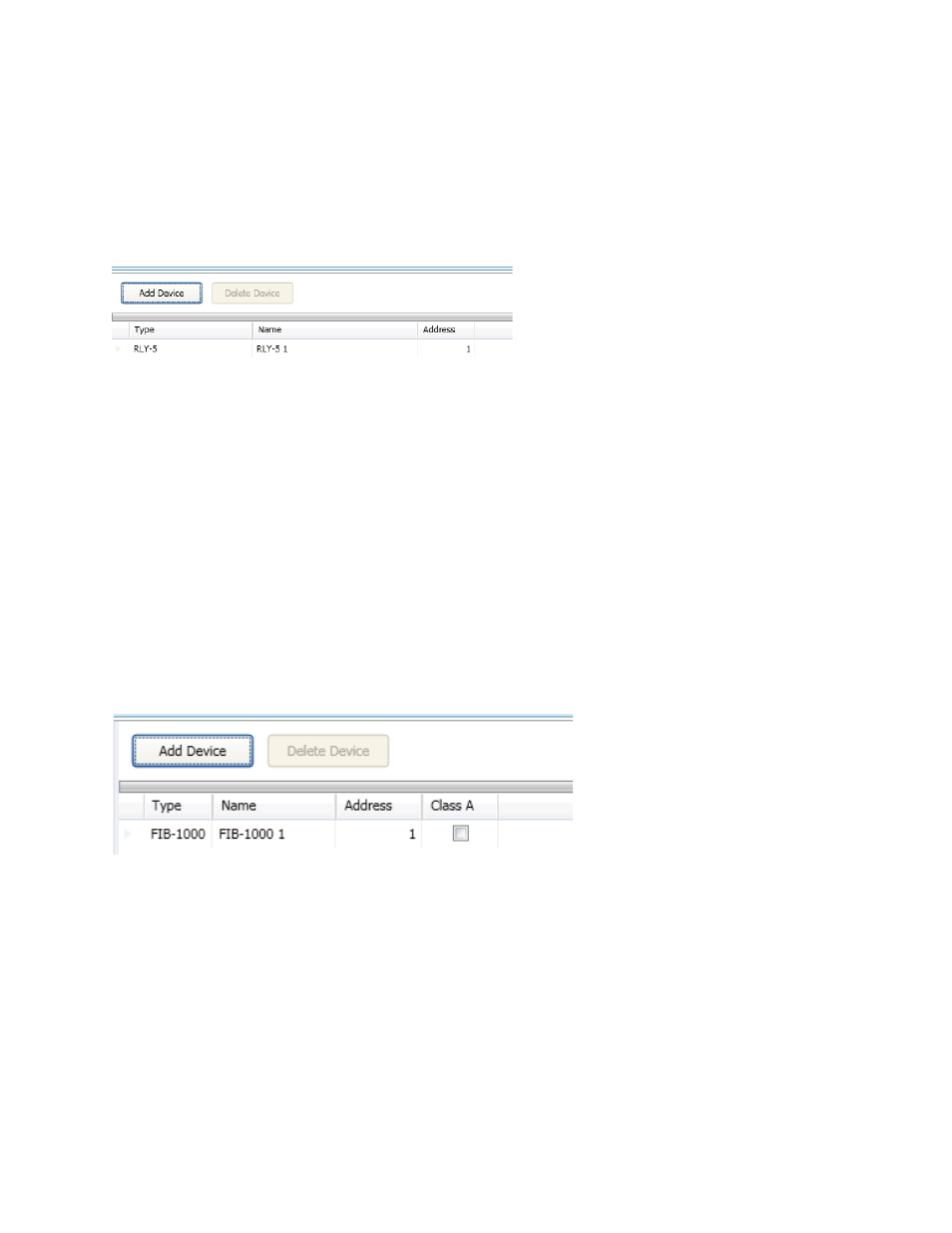

Example of the Add RLY-50 Window
Figure 123.
Double-click in the
3.
“Name” field to customize name.
Double-click in “
4.
Address” field to adjust address, if needed.
Repeat steps, as needed, to continue adding RLY-5s.
5.
Fiber Interface Bridge (FIB-1000)
The panel supports up to thirty (30) FIB-1000 boards. This optional board allows the standard 4-wire P-Link bus to be converted
to and/or from fiber optic cable.
To add and configure the FIB-1000:
Select the
1.
applicable function from the system panel.
Click the
2.
Add Device button. The “Add Device” window displays.
Example of the Add FIB-1000 Window
Figure 124.
Double-click in the
3.
“Name” field to customize name.
Double-click in “
4.
Address” field to adjust address, if needed.
Click in the
5.
"Class A" selection box, if applicable.
Repeat steps, as needed, to continue adding FIB-1000s.
6.
