5-85
PFC-6030 • 5403595 • Rev C • 2/13
LED Annunciators (LED-16)
The panel supports ten (10) LeD annunciators. The LeD annunciator provides sixteen (16) LeDs, which may be assigned to
a specific zone; when that zone becomes active, the LeD will display the alarm, supervisory or trouble conditions. each LeD
annunciator also provides five (5) non-programmable system LeDs that annunciate the overall system condition (Power, Earth,
Silenced, Alarm, Supervisory and Trouble).
Note: This panel supports up to ten (10) LeD-16 annunciators and/or DRv-50 drivers in any combination.
To add and configure a LED annunciator:
Select the 1. LED -16 function from the system panel.
Click the 2. Add Device button. The “Add Device” window displays.

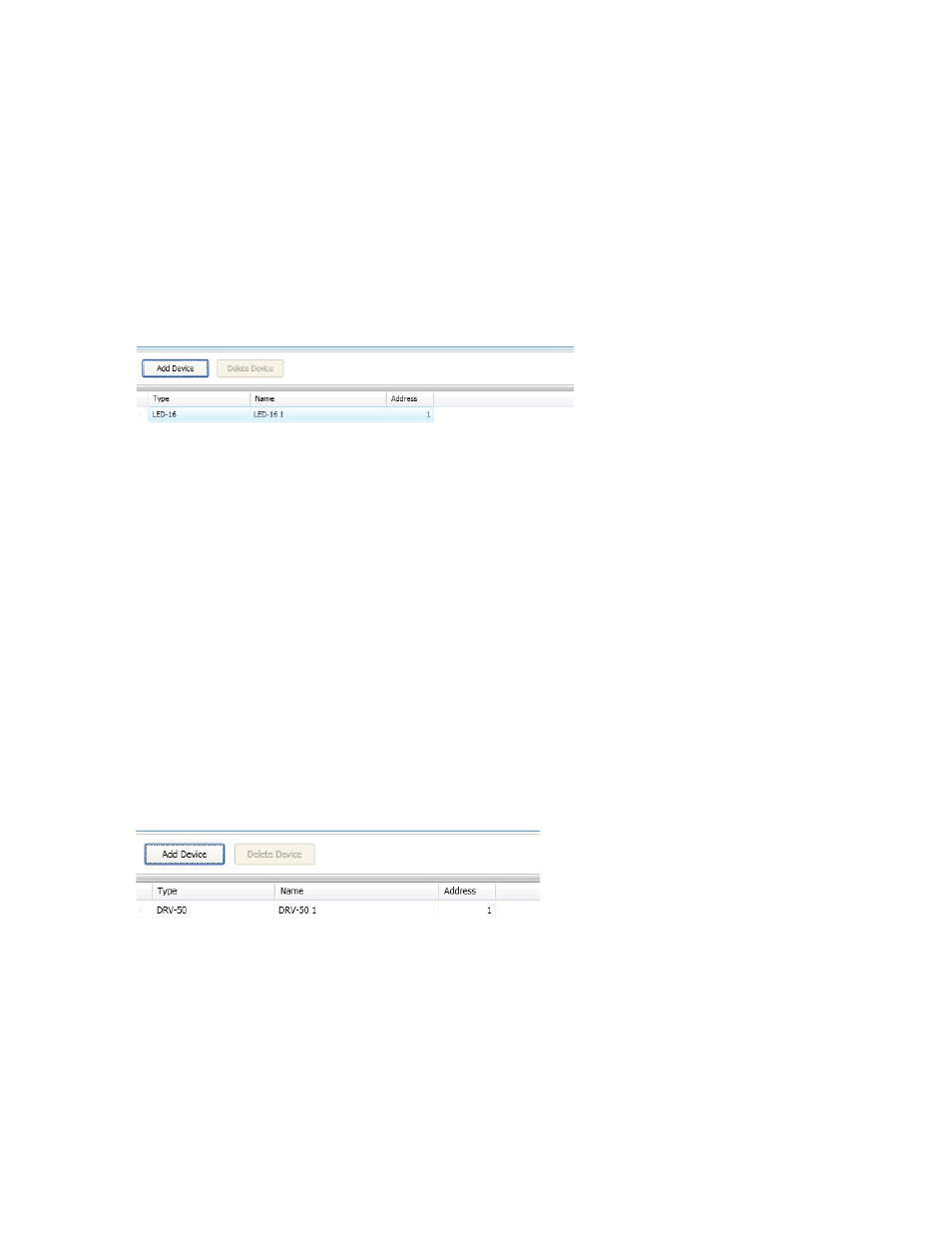

Example of the Add LED-16 Window Figure 121.
Double-click in the 3. “Name” field to customize name.
Double-click in “ 4. Address” field to adjust address, if needed.
Repeat steps, as needed, to continue adding LeD-16s. 5.
LED Driver (DRV-50)
The panel supports up to ten (10) LeD drivers. The DRv-50 provides up to 50 LeD outputs, which may be mapped to any zone.
Like the LeD annunciator, the LeD driver provides five (5) non-programmable system LeDs that annunciate the overall system
condition (Power, Earth, Silenced, Alarm, Supervisory and Trouble). Additionally, the LeD driver has four (4) programmable
supervised dry contact inputs.
Note: This panel supports up to ten (10) DRv-50 drivers and/or LeD-16 annunciators in any combination.
To add and configure a LED driver:
Select 1. DRV-5- from the system panel.
Click the 2. Add Device button. The “Add Device” window displays.
Example of the Add DRV-50 Window Figure 122.
Double-click in the 3. “Name” field to customize name.
Double-click in “ 4. Address” field to adjust address, if needed.
Repeat steps, as needed, to continue adding DRv-50s. 5.
