3-25
PFC-6030 • 5403595 • Rev C • 2/13
P-Link Devices
Accessory devices, such as remote and LeD annunciators, and a relay expander (RLY-5), are connected to the main control panel
utilizing the four-wire P-Link bus for power and communication. This panel supports a maximum of 64 P-Link devices, which can
be connected using a Class B or Class A wiring style (examples are provided throughout this topic).
Note: If you have chosen to install an optional PSN-1000/PSN-1000(e) power expansion board, refer to Section 6:
PSN-1000/PSN-1000(E) – Installing, Operating & Programming, for instructions on installing this appliance.
Configuration Characteristics
P-Link current rating is one (1) amp. y y
P-Link voltage rating is 24 vDC. y y
The maximum wire length is 6,500 feet. y y
Maximum Wire Resistance Formula
The maximum resistance is based on the load placed on the circuit. To calculate the maximum wire resistance, use the following
formula:
(Total Annunciator Alarm Current) x (Wire Resistance) < 6 Volts

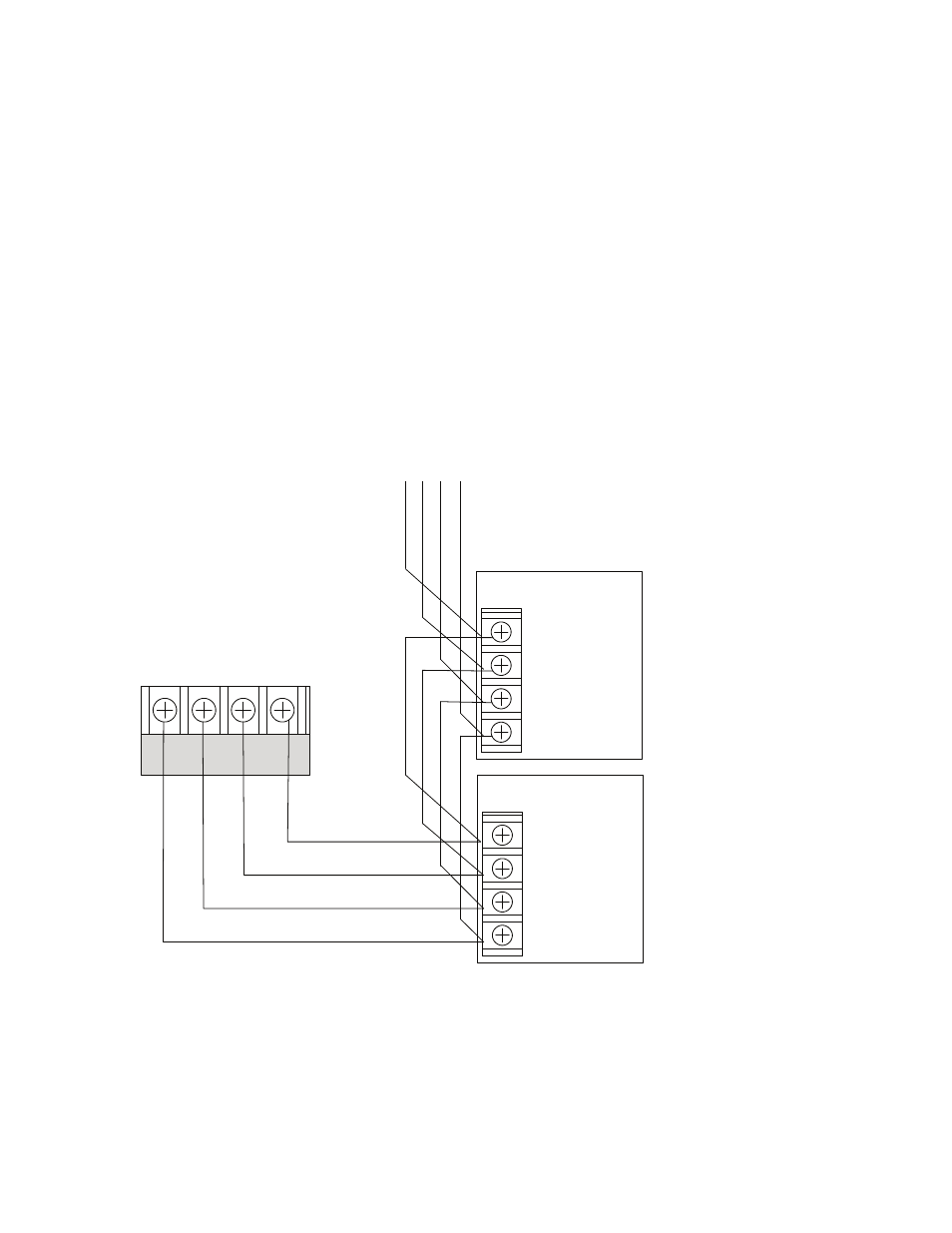

P-Link Class B Wiring Example Figure 27.
To the next device
-
+
A
B
Expansion
Device
-
+
A
B
P-LINK
- + A B
Panel
Connection
Expansion
Device
DWG #602-11A
