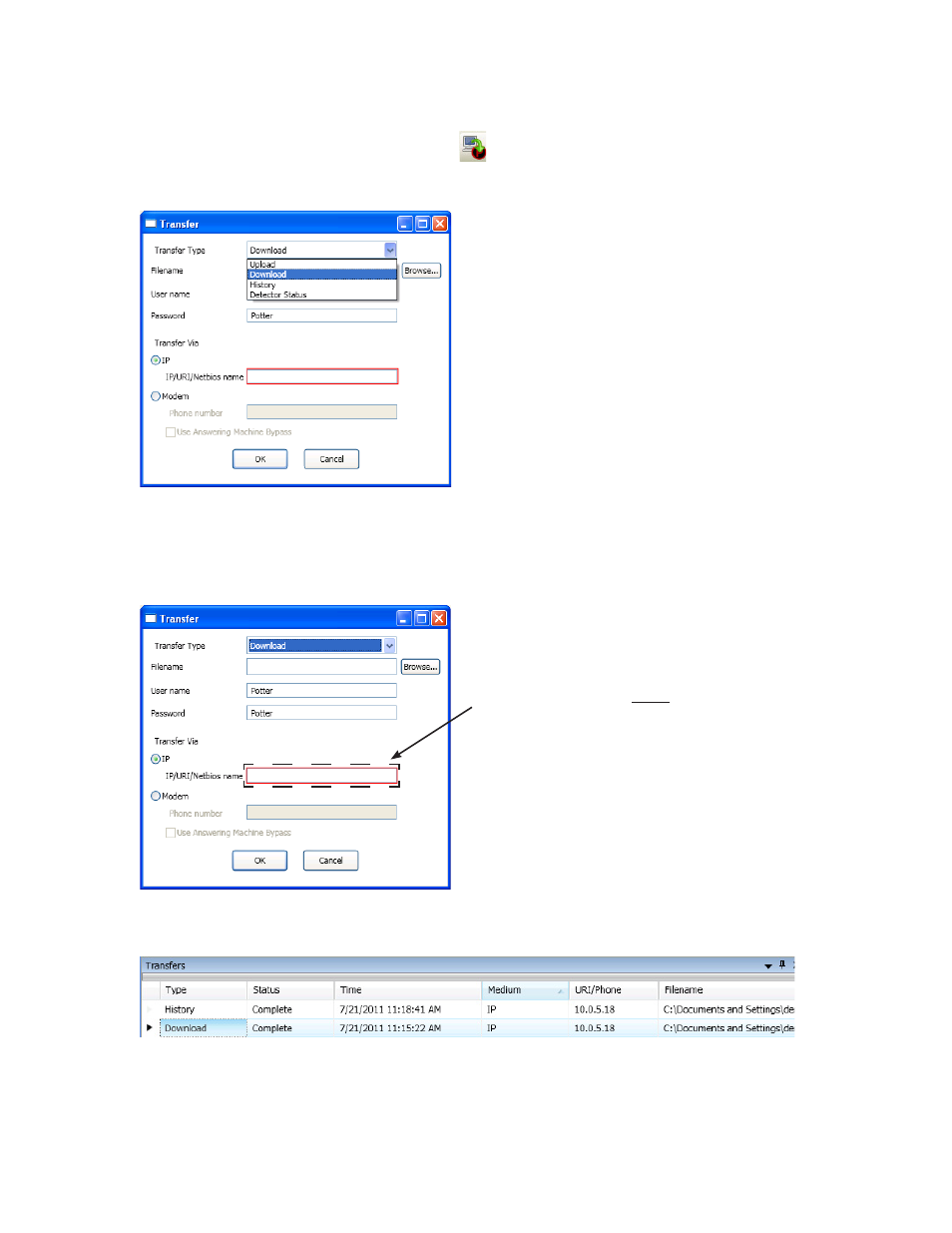

Downloading a Configuration File
To download the configuration file:
Click the
1.
Download Configuration File to Panel icon
or right click from the “Transfers” region, then click “Add”.
The Transfer dialog box displays.
Example of Transfer – Download Dialog Box
Figure 67.
verify that
2.
Download is selected in the “Transfer Type” field.
enter the file name in the
3.
“Filename” field or click the Browse button to select file name.
enter the
4.
IP address in the “Transfer Via IP” field.
Transfer - Download Dialog Box
Figure 68.
Click
5.
OK. The Transfers window displays the transfer progress.
Example of Transfers Window Showing Download Completed
Figure 69.
Note: To capture the panel’s unique IP address:
Disconnect the Ethernet cable from panel.
1.
The message “Ethernet Lost" displays indicating
2.
connectivity is lost.
Reconnect the cable, and write down the
3.
IP address shown.
