5-55
PFC-6030 • 5403595 • Rev C • 2/13
Panel Software Overview
This section gives you an overview of the Panel Configuration Software. It addresses navigating through the program windows,
understanding the purpose of icons and program features, using Window’s conventional editing techniques and other program
shortcuts to efficiently configure your system.
Window Regions / Areas
What you select a function from the Panel window located on the left, this determines the information displayed on the right.
The selected panel function is highlighted, which helps direct your eye to the related information shown on the right. For
example, when "Remote Access Code" is selected, the remote user name and password displays. Please refer to the examples
shown below.

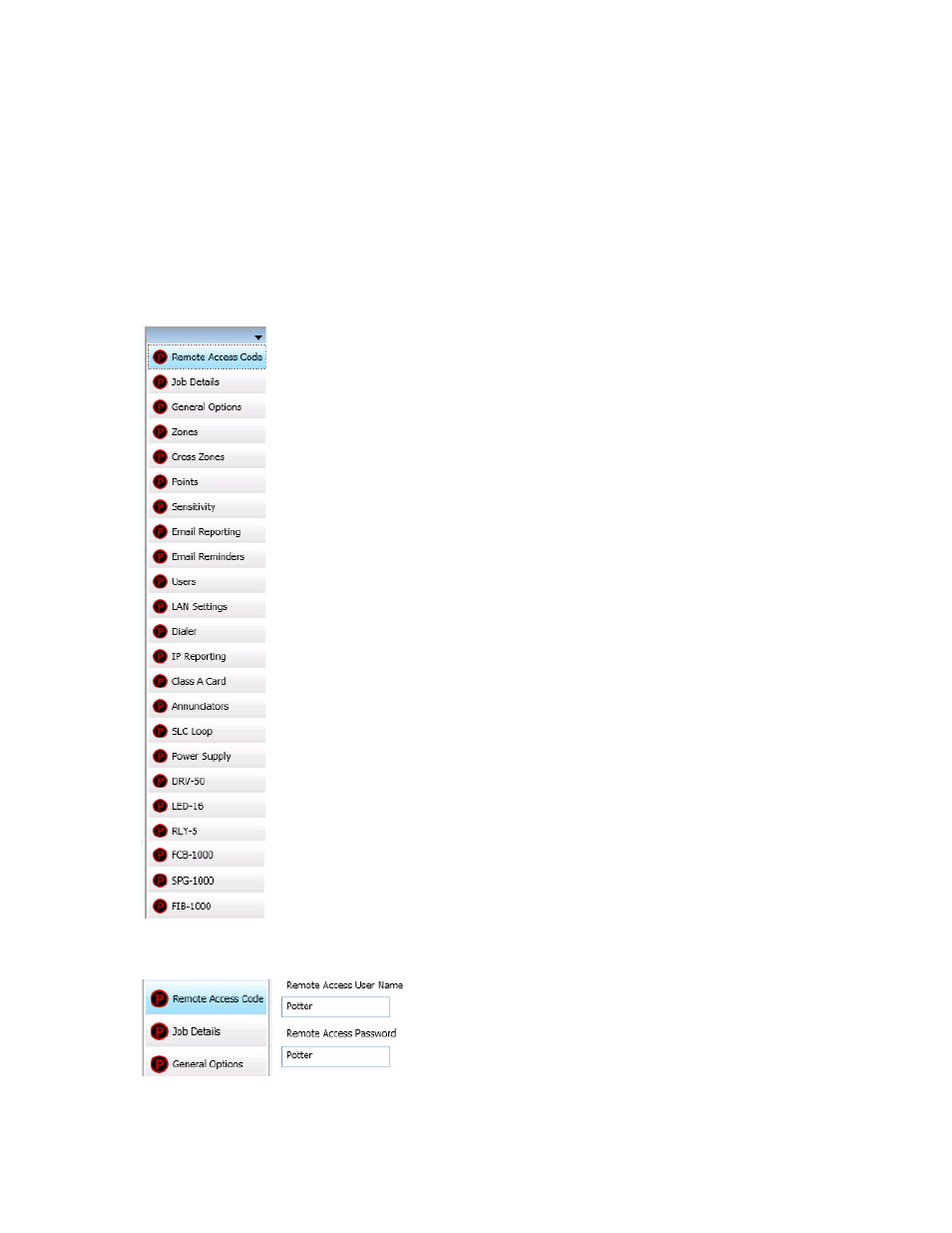

Panel Menu Options Figure 76.
Example of Panel Menu Information Figure 77.
