5-74
PFC-6030 • 5403595 • Rev C • 2/13
Creating Zones
When creating zones, you may create one or more at a time. This section explains this process and includes examples for your
convenience.
To create a zone:
In the 1. Zones window, right click on any zone name. The shortcut menu displays.
Click on “ 2. Add Zones”. The Add Multiple Zones dialog box displays.

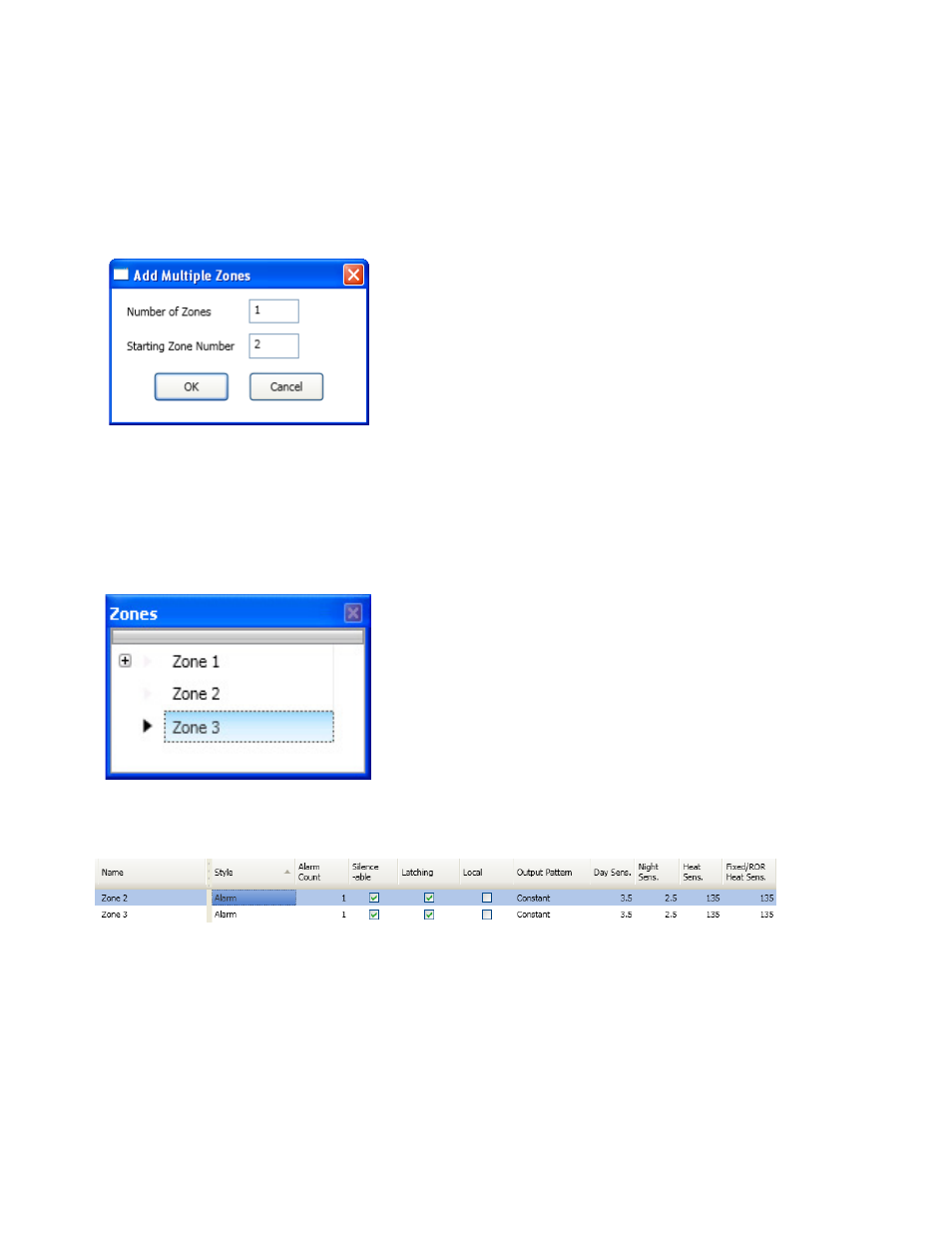

Examples of Adding Multiple Zones Dialog Box Figure 99.
In “ 3. Number of Zones” field, enter the number of zones to create.
Note: You may enter up to 99 zones.
In “ 4. Starting Zone Number” field, enter the zone number to begin numbering zones, if different from default.
Click 5. OK or Cancel to exit dialog box. The Zones window lists all new zones.
Zones Window Figure 100.
Go to the “ 6. Zone Configuration” window, to view all available zones.
Example of Configuring Two (2) Zones Figure 101.
