Potter PFC-6030 User Manual
Page 59
5-53
PFC-6030 • 5403595 • Rev C • 2/13
Detector Sensitivity Status Reports
The Upload Detector Status File to Computer icon allows you to create reports showing sensor sensitivity related settings.
This information may be used to troubleshoot detector issues.
To transfer detector (sensitivity) status information:
Click the
1.
Upload Detector Status File to Computer icon
or right click from “Transfers” region, and choose "Add".
verify that
2.
Detector Status is selected in the “Transfer Type” field.
Click
3.
OK. The Transfers window displays results.

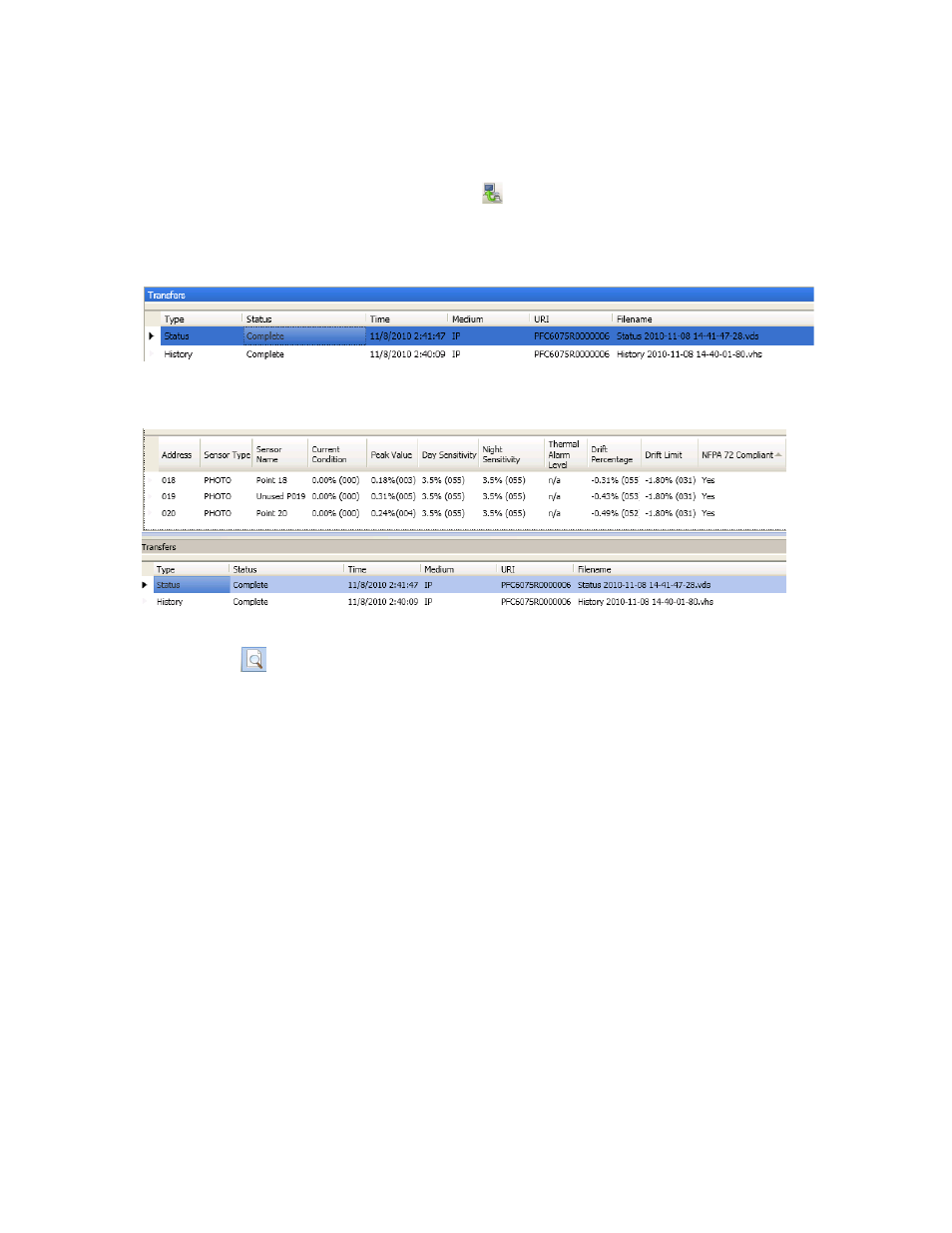

Example of Transfer Status
Figure 72.
Double-click file to view results.
4.
Example of Detector "Sensitivity" Status Report Completed
Figure 73.
Notes:
Click the
•
icon to print a copy of the report. Refer to "Printing Reports" located in this section for
more details.
Refer to "
•
System E-mail Functions - Receiving E-mail Status Reports" located in this section for a sample of a
Detector Status Report sent via e-mail.
Click the
5.
close button to close the report.
