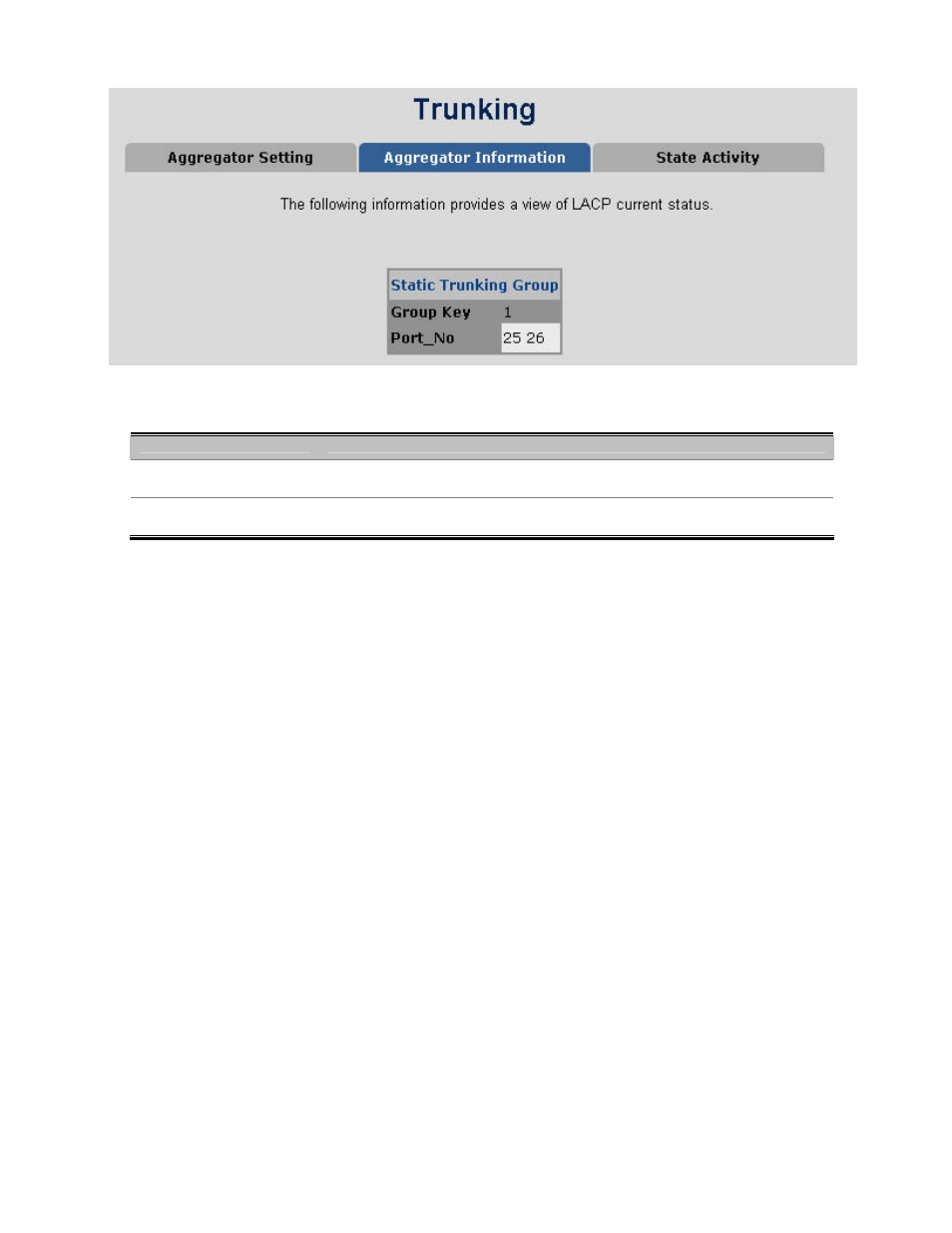

Figure 4-5-3:
Static Trunking Group Information Screenshot
The page includes the following fields:
Object
Description
Group Key:
This is a read-only column field that displays the trunk group ID.
Port Member:
This is a read-only column field that displays the members of this static trunk
group.
LACP enabled
Having set up the aggregator setting with LACP enabled, you will see the trunking group information between two switches on
the tab of Aggregator Information.
Switch 1 configuration
1. Set
System Priority
of the trunk group. The default is 32768.
2. Select
a
trunk group ID
by pull down the drop-down menu bar.
3. Enable LACP.
4.
Include the member ports by clicking the Add button after selecting the port number and the column field of Work
Ports
changes automatically.
