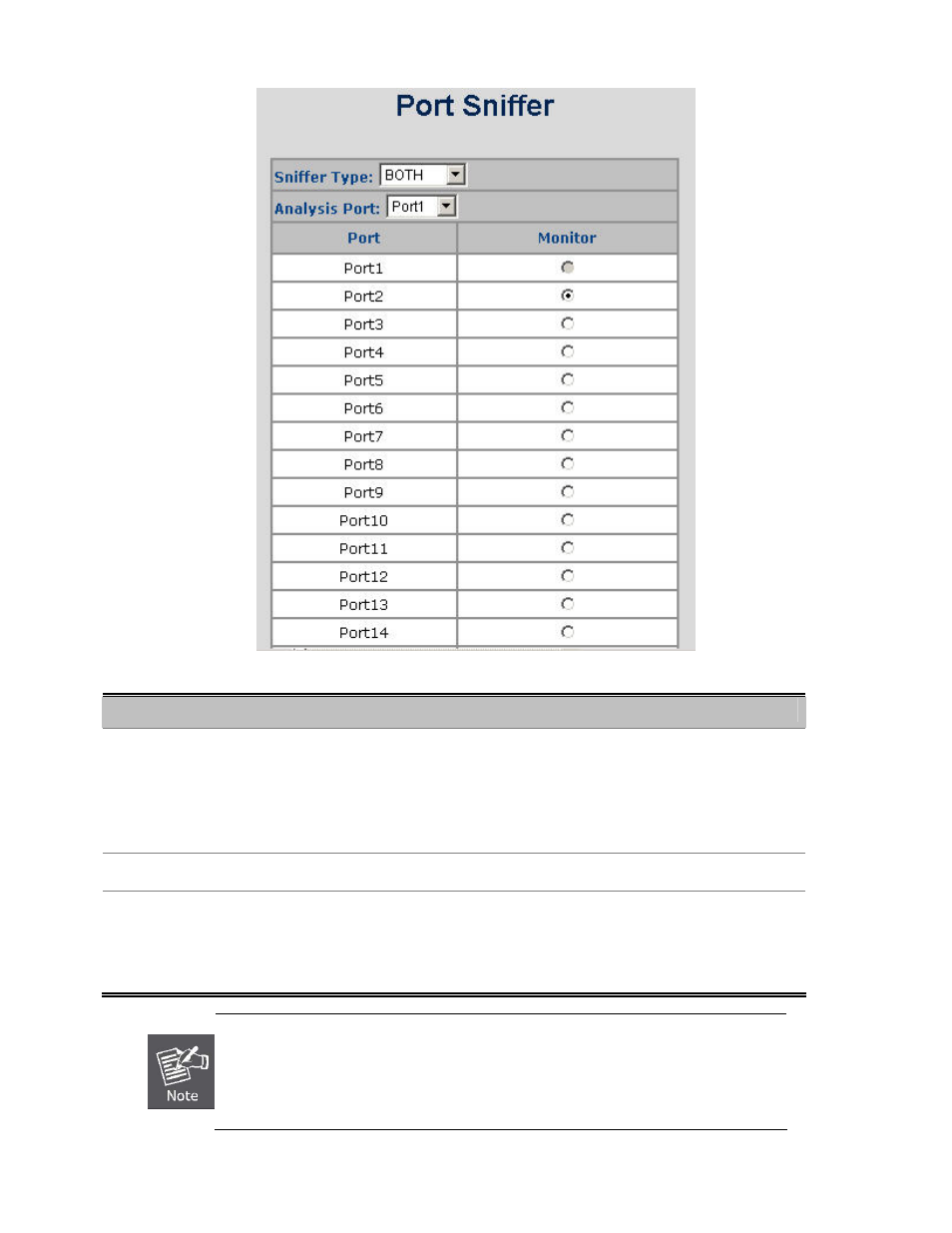

Figure 4-3-6: Port Sniffer Interface Screenshot
The page includes the following fields:
Object Description
Sniffer Type:
Select a sniffer mode:
 Disable
 Rx
 Tx
 Both
Analysis (Monitoring) Port:
It means the Analysis port can be used to see the traffic on another port you want
to monitor. You can connect Analysis port to LAN analyzer or packet sniffer.
Monitor Port:
The port you want to monitor. The monitor port traffic will be copied to Analysis
port. You can select one monitor port in the switch. User can choose which port
they want to monitor in only one sniffer type.
1 When the Mirror Mode is set to RX or TX and the Analysis Port is selected, the
packets to and from the Analysis Port will not be transmitted. The Analysis Port will
accept only copied packets from the Monitored Port.
2 If you want to disable this function, you must set the monitor port to none.
