Main WEB PAGE
The Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to
access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed Switch’s
Web browser interface to configure and manage it.

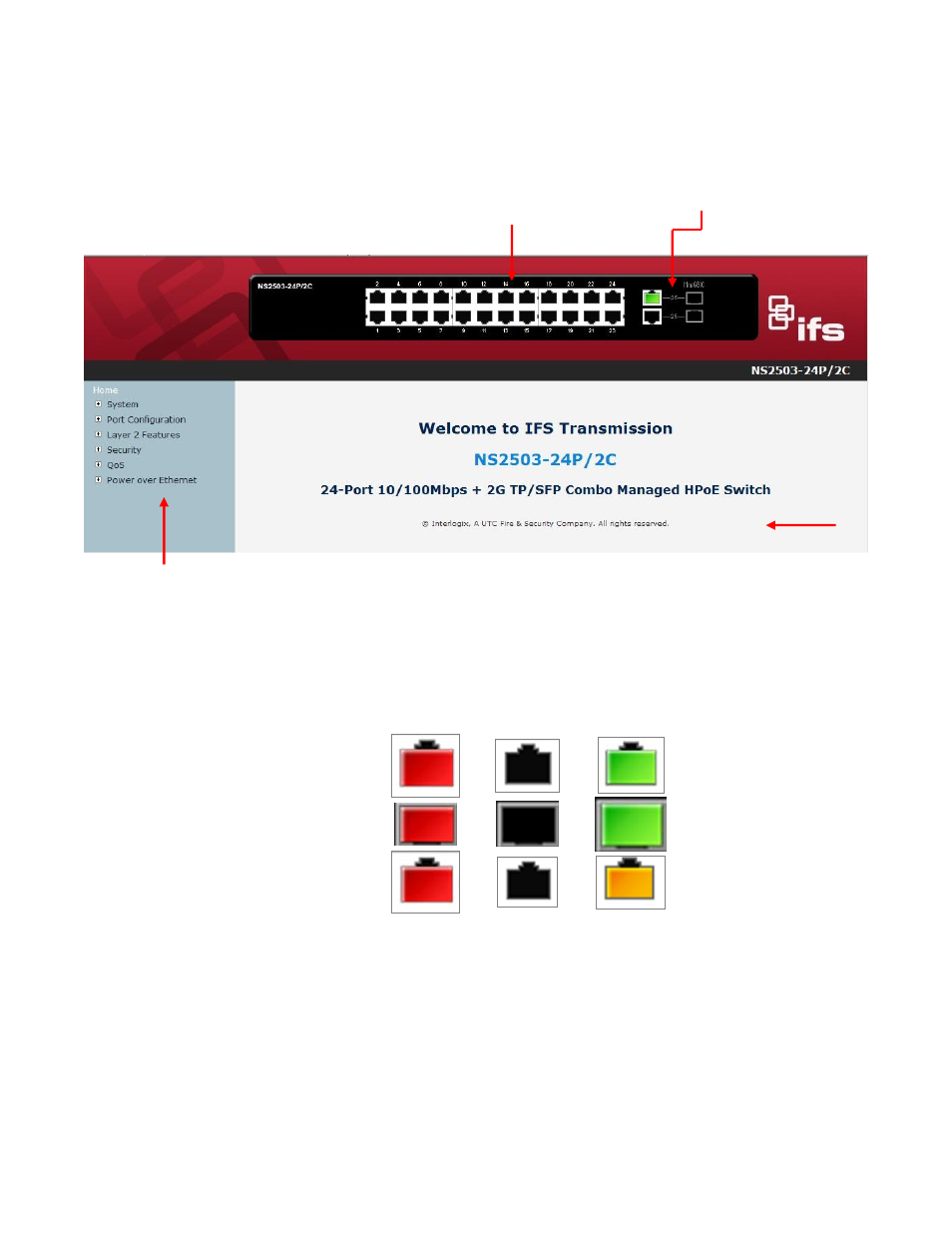

Figure 4-1-3: Web Main Page Allocation Screenshot
Panel Display
The web agent displays an image of the Managed Switch’s ports. The Mode can be set to display different information for the
ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port status is illustrated as follows:
State Disabled Down Link
RJ-45 Ports
SFP Ports
PoE Ports
Main Menu
Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its ports, or
monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by selecting the
functions those listed in the Main Function. The screen in
Figure 4-1-4 appears.
Main Functions Menu
SFP Port Link Status
Main Screen
Copper Port Link Status
